Description

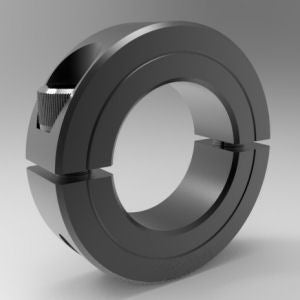

The 1/2" Steel (Black Oxide) Weldable Shaft Collar - Two-Piece Clamp is designed for secure shaft positioning on standard round shafts, thin-wall tubing, and split hub applications. Manufactured from lead-free 1018 steel, it provides safe and reliable weldability while delivering superior holding power over set-screw type collars. Its two-piece clamp design allows the collar to be installed anywhere along the shaft for easy assembly, adjustment, and maintenance. Precision-machined with a smooth bore, it protects shaft surfaces from damage and is available with or without keyways.





SPECIFICATIONS DETAILS
PART NUMBER 8MW008
TYPE Low Profile
DESIGN
Two-piece clamp design allows the collar to be installed anywhere along the shaft for easy assembly, adjustment, and maintenance
MATERIAL
Steel (Black Oxide) provides excellent strength, durability, and weldability for custom fabrication and reliable performance.
SERIES Signature
ALLOY 1018
FINISH Black Oxide
APPROXIMATE WEIGHT 0.09 lb
COUNTRY OF ORIGIN USA
UPC CODE 662786032240
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes

DIMENSIONAL ATTRIBUTES
BORE SIZE 1/2 in
OUTSIDE DIAMETER 1.125 in
WIDTH 0.406 in
RECESSED SCREW No
SCREW SIZE 8-32 x 1/2 in
SCREW MATERIAL Alloy Steel
CAPACITIES
SCREW SEATING TORQUE 41 in-lb
AXIAL HOLD 400 lb

APPLICATIONS
Ideal for robotics, industrial machinery, automation, conveyors, power transmission, and welding fixtures.
BRAND Stafford Manufacturing

Description
The 1/2" Steel (Black Oxide) Weldable Shaft Collar - Two-Piece Clamp is designed for secure shaft positioning on standard round shafts, thin-wall tubing, and split hub applications. Manufactured from lead-free 1018 steel, it provides safe and reliable weldability while delivering superior holding power over set-screw type collars. Its two-piece clamp design allows the collar to be installed anywhere along the shaft for easy assembly, adjustment, and maintenance. Precision-machined with a smooth bore, it protects shaft surfaces from damage and is available with or without keyways.





SPECIFICATIONS DETAILS
PART NUMBER 8MW008
TYPE Low Profile
DESIGN
Two-piece clamp design allows the collar to be installed anywhere along the shaft for easy assembly, adjustment, and maintenance
MATERIAL
Steel (Black Oxide) provides excellent strength, durability, and weldability for custom fabrication and reliable performance.
SERIES Signature
ALLOY 1018
FINISH Black Oxide
APPROXIMATE WEIGHT 0.09 lb
COUNTRY OF ORIGIN USA
UPC CODE 662786032240
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes

DIMENSIONAL ATTRIBUTES
BORE SIZE 1/2 in
OUTSIDE DIAMETER 1.125 in
WIDTH 0.406 in
RECESSED SCREW No
SCREW SIZE 8-32 x 1/2 in
SCREW MATERIAL Alloy Steel
CAPACITIES
SCREW SEATING TORQUE 41 in-lb
AXIAL HOLD 400 lb

APPLICATIONS
Ideal for robotics, industrial machinery, automation, conveyors, power transmission, and welding fixtures.
BRAND Stafford Manufacturing

Stafford Manufacturing by Stafford Manufacturing

8MW008

1/2" Steel (Black Oxide) Weldable Shaft Collar - Two-Piece Clamp

$11.24
$11.24
Shipping calculated at checkout.
