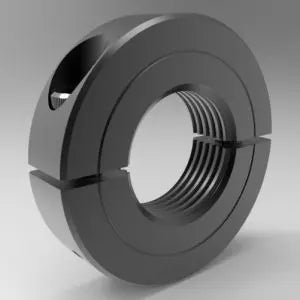

The 5/16-24" Steel (Black Oxide) UNF Threaded Shaft Collar Two-Piece Clamp - High Strength is designed for secure positioning on standard UNF and UNC threaded shafts. Precision-machined from black oxide steel, it provides superior holding power compared to set-screw type collars while protecting threaded shaft surfaces with its non-marring clamp design. The two-piece clamp construction allows complete disassembly and installation anywhere along the shaft for easy adjustment and maintenance. Stocked In: Steel, Stainless Steel
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 3L005F | |
| TYPE | High Strength | |
| DESIGN | Two-piece clamp construction allows complete disassembly and installation anywhere along the shaft for easy adjustment and maintenance | |
| MATERIAL | Steel (Black Oxide) offers a combination of mechanical strength from the steel and surface protection from the black oxide coating | |
| APPROXIMATE WEIGHT | 0.03 lb | |
| ALLOY | 1215 | |
| FINISH | Black Oxide | |
| SERIES | Signature | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786012136 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| THREADED BORE SIZE | 5/16-24 in | |
| OUTSIDE DIAMETER | 0.813 in | |
| WIDTH | 0.250 in | |
| RECESSED SCREW | Yes | |
| SCREW SIZE | 4-40 x 3/8 in | |
| SCREW MATERIAL | Alloy Steel | |
| APPLICATION | Ideal for Threaded Shaft Positioning, Threaded Shaft Retention, Industrial Machinery, Power Transmission, Automation Systems, Motion Control, Robotics, CNC Machines, Conveyors, Packaging Equipment, Processing Equipment, Electric Motors | |
| BRAND | Stafford Manufacturing |
The 5/16-24" Steel (Black Oxide) UNF Threaded Shaft Collar Two-Piece Clamp - High Strength is designed for secure positioning on standard UNF and UNC threaded shafts. Precision-machined from black oxide steel, it provides superior holding power compared to set-screw type collars while protecting threaded shaft surfaces with its non-marring clamp design. The two-piece clamp construction allows complete disassembly and installation anywhere along the shaft for easy adjustment and maintenance. Stocked In: Steel, Stainless Steel
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 3L005F | |
| TYPE | High Strength | |
| DESIGN | Two-piece clamp construction allows complete disassembly and installation anywhere along the shaft for easy adjustment and maintenance | |
| MATERIAL | Steel (Black Oxide) offers a combination of mechanical strength from the steel and surface protection from the black oxide coating | |
| APPROXIMATE WEIGHT | 0.03 lb | |
| ALLOY | 1215 | |
| FINISH | Black Oxide | |
| SERIES | Signature | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786012136 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| THREADED BORE SIZE | 5/16-24 in | |
| OUTSIDE DIAMETER | 0.813 in | |
| WIDTH | 0.250 in | |
| RECESSED SCREW | Yes | |
| SCREW SIZE | 4-40 x 3/8 in | |
| SCREW MATERIAL | Alloy Steel | |
| APPLICATION | Ideal for Threaded Shaft Positioning, Threaded Shaft Retention, Industrial Machinery, Power Transmission, Automation Systems, Motion Control, Robotics, CNC Machines, Conveyors, Packaging Equipment, Processing Equipment, Electric Motors | |
| BRAND | Stafford Manufacturing |
SKU:3L005F
5/16-24" Steel (Black Oxide) UNF Threaded Shaft Collar Two-Piece Clamp High Strength
