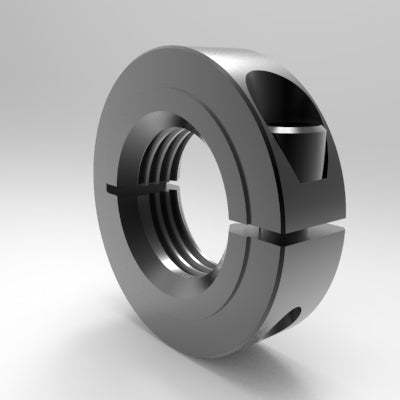

The 3/4-16" Steel (Black Oxide) UNF Threaded Hub Collar - One Piece Clamp is designed for standard UNF (fine thread) shafts and features a precision-machined hub on the face that reduces contact area and minimizes friction. Its one-piece clamp design provides secure, non-marring holding power while allowing easy adjustment and installation. Ideal for use as a bearing inner race and in machinery, automation equipment, and power transmission applications where reliable shaft positioning and reduced friction are important.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | HUB7L012F | |
| TYPE | Low Profile | |
| DESIGN |
One-piece clamp design for secure, reliable gripping with simple installation
|
|
| MATERIAL |
Steel (Black Oxide) offers a combination of mechanical strength from the steel and surface protection from the black oxide coating
|
|
| SERIES | Signature | |
| ALLOY | 1215 | |
| FINISH | Black Oxide | |
| APPROXIMATE WEIGHT | 0.17 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786029974 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| THREADED BORE SIZE | 3/4-16 in | |
| OUTSIDE DIAMETER | 1.500 in | |
| WIDTH | 0.500 in | |
| RECESSED SCREW | No | |
| SCREW SIZE | 1/4-28 x 5/8 in | |
| SCREW MATERIAL | Alloy Steel | |
| APPLICATIONS |
Ideal for machinery, automation equipment, conveyor systems, bearing assemblies and power transmission applications
|
|
| BRAND | Stafford Manufacturing |
The 3/4-16" Steel (Black Oxide) UNF Threaded Hub Collar - One Piece Clamp is designed for standard UNF (fine thread) shafts and features a precision-machined hub on the face that reduces contact area and minimizes friction. Its one-piece clamp design provides secure, non-marring holding power while allowing easy adjustment and installation. Ideal for use as a bearing inner race and in machinery, automation equipment, and power transmission applications where reliable shaft positioning and reduced friction are important.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | HUB7L012F | |
| TYPE | Low Profile | |
| DESIGN |
One-piece clamp design for secure, reliable gripping with simple installation
|
|
| MATERIAL |
Steel (Black Oxide) offers a combination of mechanical strength from the steel and surface protection from the black oxide coating
|
|
| SERIES | Signature | |
| ALLOY | 1215 | |
| FINISH | Black Oxide | |
| APPROXIMATE WEIGHT | 0.17 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786029974 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| THREADED BORE SIZE | 3/4-16 in | |
| OUTSIDE DIAMETER | 1.500 in | |
| WIDTH | 0.500 in | |
| RECESSED SCREW | No | |
| SCREW SIZE | 1/4-28 x 5/8 in | |
| SCREW MATERIAL | Alloy Steel | |
| APPLICATIONS |
Ideal for machinery, automation equipment, conveyor systems, bearing assemblies and power transmission applications
|
|
| BRAND | Stafford Manufacturing |
SKU:HUB7L012F
3/4-16" Steel (Black Oxide) UNF Threaded Hub Collar - One Piece Clamp
