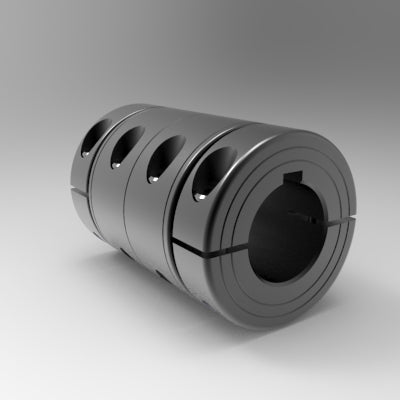

The 1" x 1" Steel (Black Oxide) Precision Sleeve Coupling - Two-Piece Clamp is designed to securely connect aligned shafts while maintaining precise shaft alignment with less than .001 TIR concentricity during operation. Its solid center section provides a close-tolerance fit on ground shafting, while the Accu-Clamp™ design features integral self-centering clamping collars for secure, accurate gripping. The two-piece construction allows easy assembly, removal, and adjustment, while the standard keyway provides positive torque transmission. Precision machined with a smooth, non-marring bore, it delivers high clamping power while helping protect shafts from damage.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 5L100100FKPSC | |
| TYPE | High Strength | |
| DESIGN | Two-piece construction for easy assembly, removal, and adjustment | |
| MATERIAL | Steel (Black Oxide) offers a combination of mechanical strength from the steel and surface protection from the black oxide coating | |
| SERIES | Signature | |
| ALLOY | 1215 | |
| FINISH | Black Oxide | |
| APPROXIMATE WEIGHT | 1.78 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786018817 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE SIZE A | 1 in | |
| KEYWAY A | 1/4 in | |
| BORE SIZE B | 1 in | |
| KEYWAY B | 0.25 in | |
| OUTSIDE DIAMETER | 2.000 in | |
| TOTAL LENGTH | 3.000 in | |
| RECESSED SCREW | Yes | |
| SCREW SIZE | 1/4-28 x 3/4 in | |
| SCREW MATERIAL | Alloy Steel | |
| CAPACITIES | ||
| SCREW SEATING TORQUE | 162 in-lb | |
| AXIAL HOLD | 1450 lb | |
| APPLICATIONS | Ideal for precision machinery, automation equipment, conveyors, motion-control systems, and power transmission applications | |
| BRAND | Stafford Manufacturing |
The 1" x 1" Steel (Black Oxide) Precision Sleeve Coupling - Two-Piece Clamp is designed to securely connect aligned shafts while maintaining precise shaft alignment with less than .001 TIR concentricity during operation. Its solid center section provides a close-tolerance fit on ground shafting, while the Accu-Clamp™ design features integral self-centering clamping collars for secure, accurate gripping. The two-piece construction allows easy assembly, removal, and adjustment, while the standard keyway provides positive torque transmission. Precision machined with a smooth, non-marring bore, it delivers high clamping power while helping protect shafts from damage.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 5L100100FKPSC | |
| TYPE | High Strength | |
| DESIGN | Two-piece construction for easy assembly, removal, and adjustment | |
| MATERIAL | Steel (Black Oxide) offers a combination of mechanical strength from the steel and surface protection from the black oxide coating | |
| SERIES | Signature | |
| ALLOY | 1215 | |
| FINISH | Black Oxide | |
| APPROXIMATE WEIGHT | 1.78 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786018817 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE SIZE A | 1 in | |
| KEYWAY A | 1/4 in | |
| BORE SIZE B | 1 in | |
| KEYWAY B | 0.25 in | |
| OUTSIDE DIAMETER | 2.000 in | |
| TOTAL LENGTH | 3.000 in | |
| RECESSED SCREW | Yes | |
| SCREW SIZE | 1/4-28 x 3/4 in | |
| SCREW MATERIAL | Alloy Steel | |
| CAPACITIES | ||
| SCREW SEATING TORQUE | 162 in-lb | |
| AXIAL HOLD | 1450 lb | |
| APPLICATIONS | Ideal for precision machinery, automation equipment, conveyors, motion-control systems, and power transmission applications | |
| BRAND | Stafford Manufacturing |
SKU:5L100100FKPSC
1" x 1" Steel (Black Oxide) Precision Sleeve Coupling - Two-Piece Clamp
- Regular price
- $154.31
- Sale price
- $154.31
