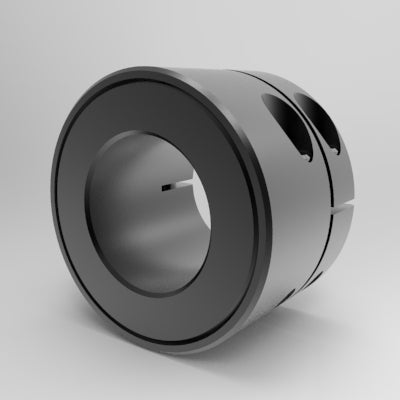

Machineable two-piece Accu-Clamp™ collar made from black oxide steel | 1/2" Steel (Black Oxide) Accu-Clamp™ Collar Two-Piece Machineable | 2L008ACM
    Machineable two-piece Accu-Clamp™ collar made from black oxide steel | 1/2" Steel (Black Oxide) Accu-Clamp™ Collar Two-Piece Machineable | 2L008ACM
Machineable two-piece Accu-Clamp™ collar made from black oxide steel | 1/2" Steel (Black Oxide) Accu-Clamp™ Collar Two-Piece Machineable | 2L008ACM
Machineable two-piece Accu-Clamp™ collar made from black oxide steel | 1/2" Steel (Black Oxide) Accu-Clamp™ Collar Two-Piece Machineable | 2L008ACM
    Machineable two-piece Accu-Clamp™ collar made from black oxide steel | 1/2" Steel (Black Oxide) Accu-Clamp™ Collar Two-Piece Machineable | 2L008ACM
Machineable two-piece Accu-Clamp™ collar made from black oxide steel | 1/2" Steel (Black Oxide) Accu-Clamp™ Collar Two-Piece Machineable | 2L008ACM
Description
The 1/2" Steel (Black Oxide) Accu-Clamp™ Collar Two-Piece Machineable is manufactured from 1117 steel for excellent machinability and durability. Its two-piece, non-marring clamp design allows for complete disassembly and installation at any position on a shaft without disturbing adjacent components. The solid, fully machineable working face can be customized through drilling, tapping, threading, turning, or knurling to meet specific application requirements. The Accu-Clamp™ Collar is stocked in 1117 steel and offered in two styles: Machineable, and Hardened and Ground.



SPECIFICATIONS DETAILS
PART NUMBER 2L008ACM
TYPE Machineable
DESIGN
Two-piece, non-marring clamp design allows for complete disassembly and installation at any position on a shaft
MATERIAL
Steel (Black Oxide) for excellent machinability and durability
SERIES Solution
ALLOY 1117
FINISH Black Oxide
APPROXIMATE WEIGHT 0.19 lb
COUNTRY OF ORIGIN USA
UPC CODE 662786027284
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes

DIMENSIONAL ATTRIBUTES
BORE SIZE 1/2 in
OUTSIDE DIAMETER 1.250 in
WIDTH 1.250 in
RECESSED SCREW Yes
SCREW SIZE 8-32 x 1/2 in
SCREW MATERIAL Alloy Steel

CAPACITIES
SCREW SEATING TORQUE 41 in-lb
AXIAL HOLD 400 lb

APPLICATIONS
Ideal for shaft positioning and spacing, limit stops, bearing and pulley positioning, automation equipment, conveyor, and machine tools.
BRAND Stafford Manufacturing

Stafford's Accu-Clamp Product Line Video

Shaft Collar Basics Video
