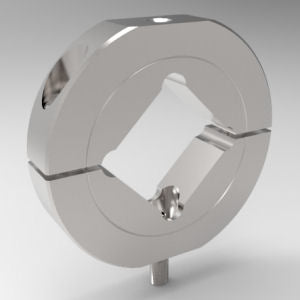

The 1-1/4" Stainless Steel (303) Square Bore Shaft Mounting Collar Two-Piece Stackable provides a secure, non-marring solution for mounting standard square shafts or structural tubing to components. Its precision-machined, two-piece design allows it to be easily installed or repositioned anywhere along the shaft, delivering high clamping force and simple adjustment. It features drilled and tapped mounting flats, a countersunk mounting hole, and includes a mounting screw for quick installation. The regular Stackable version features flats on two sides, allowing multiple collars to be securely stacked together.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 15S104ST | |
| TYPE | High Strength | |
| DESIGN |
Two-piece design for easy installation, repositioning, and adjustment.
|
|
| MATERIAL |
Stainless Steel (303) offers excellent corrosion resistance, strength, and durability for demanding industrial applications.
|
|
| SERIES | Solution | |
| ALLOY | 303 | |
| FINISH | None | |
| APPROXIMATE WEIGHT | 0.84 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786033155 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE SIZE | 1-1/4 in | |
| OUTSIDE DIAMETER | 3.000 in | |
| WIDTH | 0.625 in | |
| RECESSED SCREW | Yes | |
| SCREW SIZE | 5/16-24 x 1 in | |
| SCREW MATERIAL | 18-8 Stainless Steel | |
| DISTANCE ACROSS FLATS | 2.812 in | |
| TOP THREADED HOLE | 1/4-20 | |
| BOTTOM THREADED HOLE | 5/16-18 | |
| MOUNTING SCREW | 10-24 Flat Head Cap Screw | |
| CAPACITIES | ||
| SCREW SEATING TORQUE | 131 in-lb | |
| AXIAL HOLD | 960 lbs | |
| APPLICATIONS |
Ideal for automation equipment, machinery, structural framing, material handling systems, conveyors, and industrial assembly applications
|
|
| BRAND | Stafford Manufacturing |
The 1-1/4" Stainless Steel (303) Square Bore Shaft Mounting Collar Two-Piece Stackable provides a secure, non-marring solution for mounting standard square shafts or structural tubing to components. Its precision-machined, two-piece design allows it to be easily installed or repositioned anywhere along the shaft, delivering high clamping force and simple adjustment. It features drilled and tapped mounting flats, a countersunk mounting hole, and includes a mounting screw for quick installation. The regular Stackable version features flats on two sides, allowing multiple collars to be securely stacked together.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 15S104ST | |
| TYPE | High Strength | |
| DESIGN |
Two-piece design for easy installation, repositioning, and adjustment.
|
|
| MATERIAL |
Stainless Steel (303) offers excellent corrosion resistance, strength, and durability for demanding industrial applications.
|
|
| SERIES | Solution | |
| ALLOY | 303 | |
| FINISH | None | |
| APPROXIMATE WEIGHT | 0.84 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786033155 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE SIZE | 1-1/4 in | |
| OUTSIDE DIAMETER | 3.000 in | |
| WIDTH | 0.625 in | |
| RECESSED SCREW | Yes | |
| SCREW SIZE | 5/16-24 x 1 in | |
| SCREW MATERIAL | 18-8 Stainless Steel | |
| DISTANCE ACROSS FLATS | 2.812 in | |
| TOP THREADED HOLE | 1/4-20 | |
| BOTTOM THREADED HOLE | 5/16-18 | |
| MOUNTING SCREW | 10-24 Flat Head Cap Screw | |
| CAPACITIES | ||
| SCREW SEATING TORQUE | 131 in-lb | |
| AXIAL HOLD | 960 lbs | |
| APPLICATIONS |
Ideal for automation equipment, machinery, structural framing, material handling systems, conveyors, and industrial assembly applications
|
|
| BRAND | Stafford Manufacturing |
SKU:15S104ST
1-1/4" Stainless Steel (303) Square Bore Shaft Mounting Collar Two-Piece Stackable
