Description

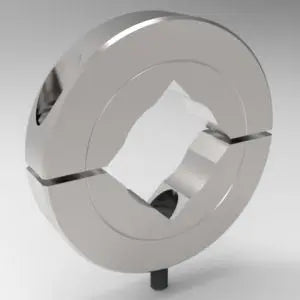

The 1/2" Aluminum Square Bore Shaft Mounting Collar - Two-Piece Stackable (Cap) is precision machined from aluminum for secure, non-marring clamping on standard square shafts or structural tubing. Its two-piece, fully disassemblable design allows for easy installation, repositioning, and adjustment anywhere along the shaft, with high clamping power for reliable holding. Flats on the outer surfaces are drilled and tapped for attachment to other components, while a countersunk hole provides convenient surface mounting. The Stackable (Cap) version features a single flat for a finished outside surface when further stacking is not required, making it ideal for modular shaft mounting and structural applications.



SPECIFICATIONS DETAILS
PART NUMBER 15A008CP
TYPE High Strength
DESIGN
Two-piece, fully disassemblable design allows for easy installation, repositioning, and adjustment anywhere along the shaft
MATERIAL
Aluminum offers lightweight strength, corrosion resistance, good machinability, and durability
SERIES Solution
ALLOY 2024-T351
FINISH Shiny
APPROXIMATE WEIGHT 0.1 lb
COUNTRY OF ORIGIN USA
UPC CODE 662786033322
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes

DIMENSIONAL ATTRIBUTES
HEX BORE SIZE 1/2 in
OUTSIDE DIAMETER 1.750 in
WIDTH 0.500 in
RECESSED SCREW Yes
SCREW SIZE 1/4-28 x 3/4 in
SCREW MATERIAL Alloy Steel
DISTANCE ACROSS FLATS 1.652 in
BOTTOM THREADED HOLE 1/4-20 in
MOUNTING SCREW
10-24 Flat Head Cap Screw

CAPACITIES
SCREW SEATING TORQUE 31 in-lb
AXIAL HOLD 300 lbs

APPLICATIONS
Ideal for spacing, alignment, conveyors, automation equipment, modular shaft mounting and structural applications.
BRAND Stafford Manufacturing
