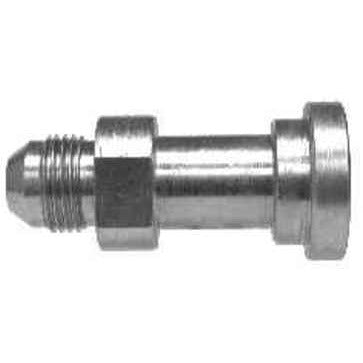

The Split Flange Adapter 61 is a type of hydraulic fitting used to connect two components in a hydraulic system via a flange connection. The "split" design allows for easier assembly and disassembly, as it does not require threading the entire adapter into the receiving port.
| Specification | Details |
|---|---|
| TYPE | Split Flange Adapter 61 |
| DESIGN |
Split design for easier handling in tight spaces |
| MATERIAL | Steel for strength and resistance to mechanical stress |
| MATERIAL CONSTRUCTION | Steel |
| WEIGHT (lbs) | 0 |
| CONNECTION SIZE 1 | 1-1/16" |
| CONNECTION SIZE 2 | 1" |
| CONNECTION TYPE | JIC|Flanged |
| CONNECTION TYPE 1 | JIC |
| CONNECTION TYPE 2 | Code 61 Flange |
| FITTING TYPE | Adapter |
| MAXIMUM OPERATING PRESSURE | 3000 psi |
| SHAPE | Straight/Connector |
| THREAD SIZE | 1-1/16-12 |
| APPLICATIONS | Ideal for Hydraulic Systems, Heavy Equipment, Industrial Machinery, Fluid Transfer. |
| BRAND | Midland Industries |
The Split Flange Adapter 61 is a type of hydraulic fitting used to connect two components in a hydraulic system via a flange connection. The "split" design allows for easier assembly and disassembly, as it does not require threading the entire adapter into the receiving port.
| Specification | Details |
|---|---|
| TYPE | Split Flange Adapter 61 |
| DESIGN |
Split design for easier handling in tight spaces |
| MATERIAL | Steel for strength and resistance to mechanical stress |
| MATERIAL CONSTRUCTION | Steel |
| WEIGHT (lbs) | 0 |
| CONNECTION SIZE 1 | 1-1/16" |
| CONNECTION SIZE 2 | 1" |
| CONNECTION TYPE | JIC|Flanged |
| CONNECTION TYPE 1 | JIC |
| CONNECTION TYPE 2 | Code 61 Flange |
| FITTING TYPE | Adapter |
| MAXIMUM OPERATING PRESSURE | 3000 psi |
| SHAPE | Straight/Connector |
| THREAD SIZE | 1-1/16-12 |
| APPLICATIONS | Ideal for Hydraulic Systems, Heavy Equipment, Industrial Machinery, Fluid Transfer. |
| BRAND | Midland Industries |
SKU:17001216
Split Flange Adapter 61
- Regular price
- $65.31
- Sale price
- $65.31
