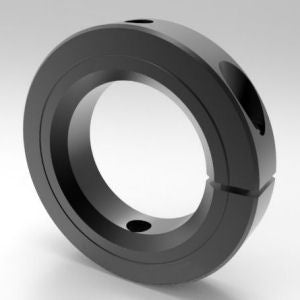

The 1-1/2" Steel (Black Oxide) SPARC™ System One-Piece Clamp Master Collar is a precision-engineered prototyping platform designed to help engineers and designers quickly develop custom shaft collar assemblies. By combining a durable machined master collar with interchangeable 3D-printed inserts, the SPARC™ system enables rapid creation and testing of specialized components without the time and cost associated with traditional machining methods. Made from steel with a black oxide finish, the master collar provides high strength, durability, and wear resistance while offering improved surface protection against corrosion. Offered in steel, stainless steel, or aluminum, these master collars are available in three sizes to accommodate shaft diameters from 1/8" to 2-3/4" O.D.
If you would like to contribute your custom insert CAD drawing, please go to the Request Quote/More Information page and upload your file there. Thank you and welcome to the community!
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 3-DM1L108 | |
| DESIGN |
One-piece clamp master collar provides a strong, stable foundation for custom shaft-mounted components.
|
|
| MATERIAL |
Steel (Black Oxide) provides high strength, durability, and wear resistance while offering improved surface protection against corrosion.
|
|
| SERIES | Solution | |
| ALLOY | 1215 | |
| FINISH | Black Oxide | |
| APPROXIMATE WEIGHT | 0.39 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786037306 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE SIZE | 1-1/2 in | |
| MAXIMUM INSERT ID | 1.250 in | |
| OUTSIDE DIAMETER | 2.500 in | |
| WIDTH | 0.500 in | |
| RECESSED SCREW | Yes | |
| SCREW SIZE | 1/4-28 x 3/4 in | |
| SCREW MATERIAL | Alloy Steel | |
| APPLICATIONS |
Ideal for rapid prototyping, product development, automation equipment, machine design, robotics, fixture development, and custom shaft-mounted assemblies.
|
|
| BRAND | Stafford Manufacturing |
The 1-1/2" Steel (Black Oxide) SPARC™ System One-Piece Clamp Master Collar is a precision-engineered prototyping platform designed to help engineers and designers quickly develop custom shaft collar assemblies. By combining a durable machined master collar with interchangeable 3D-printed inserts, the SPARC™ system enables rapid creation and testing of specialized components without the time and cost associated with traditional machining methods. Made from steel with a black oxide finish, the master collar provides high strength, durability, and wear resistance while offering improved surface protection against corrosion. Offered in steel, stainless steel, or aluminum, these master collars are available in three sizes to accommodate shaft diameters from 1/8" to 2-3/4" O.D.
If you would like to contribute your custom insert CAD drawing, please go to the Request Quote/More Information page and upload your file there. Thank you and welcome to the community!
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 3-DM1L108 | |
| DESIGN |
One-piece clamp master collar provides a strong, stable foundation for custom shaft-mounted components.
|
|
| MATERIAL |
Steel (Black Oxide) provides high strength, durability, and wear resistance while offering improved surface protection against corrosion.
|
|
| SERIES | Solution | |
| ALLOY | 1215 | |
| FINISH | Black Oxide | |
| APPROXIMATE WEIGHT | 0.39 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786037306 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE SIZE | 1-1/2 in | |
| MAXIMUM INSERT ID | 1.250 in | |
| OUTSIDE DIAMETER | 2.500 in | |
| WIDTH | 0.500 in | |
| RECESSED SCREW | Yes | |
| SCREW SIZE | 1/4-28 x 3/4 in | |
| SCREW MATERIAL | Alloy Steel | |
| APPLICATIONS |
Ideal for rapid prototyping, product development, automation equipment, machine design, robotics, fixture development, and custom shaft-mounted assemblies.
|
|
| BRAND | Stafford Manufacturing |
SKU:3-DM1L108
1-1/2" Steel (Black Oxide) SPARC System One-Piece Clamp Master Collar
