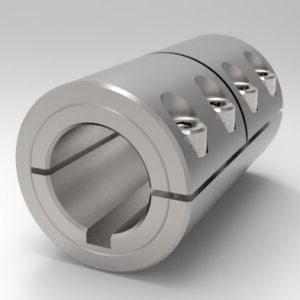

Stainless steel rigid shaft coupling with low profile design and keyway for secure shaft mounting | 1-3/8" x 1-3/8" Stainless Steel (303) One-Piece Clamp Rigid Shaft Coupling with Keyway - Low Profile | 7S106106K
    Stainless steel rigid shaft coupling with low profile design and keyway for secure shaft mounting | 1-3/8" x 1-3/8" Stainless Steel (303) One-Piece Clamp Rigid Shaft Coupling with Keyway - Low Profile | 7S106106K
Stainless steel rigid shaft coupling with low profile design and keyway for secure shaft mounting | 1-3/8" x 1-3/8" Stainless Steel (303) One-Piece Clamp Rigid Shaft Coupling with Keyway - Low Profile | 7S106106K
Stainless steel rigid shaft coupling with low profile design and keyway for secure shaft mounting | 1-3/8" x 1-3/8" Stainless Steel (303) One-Piece Clamp Rigid Shaft Coupling with Keyway - Low Profile | 7S106106K
    Stainless steel rigid shaft coupling with low profile design and keyway for secure shaft mounting | 1-3/8" x 1-3/8" Stainless Steel (303) One-Piece Clamp Rigid Shaft Coupling with Keyway - Low Profile | 7S106106K
Stainless steel rigid shaft coupling with low profile design and keyway for secure shaft mounting | 1-3/8" x 1-3/8" Stainless Steel (303) One-Piece Clamp Rigid Shaft Coupling with Keyway - Low Profile | 7S106106K
Description

The 1-3/8" x 1-3/8" Stainless Steel (303) One-Piece Clamp Rigid Shaft Coupling with Keyway - Low Profile is a precision-engineered coupling designed to connect aligned shafts and make them function as a single unit with zero backlash. Its one-piece clamp design provides high clamping power, easy adjustment, and a non-marring grip, while the standard keyway adds greater torque capacity and fixed shaft phasing for accurate shaft synchronization. Made from 303 stainless steel, it offers excellent corrosion resistance, strength, and durability for demanding environments. The Low Profile design features a clamp screw that protrudes beyond the outside diameter (OD), providing a compact shaft connection solution. With a straight-through bore, it is ideal for automation systems, motion control equipment, machinery assemblies, and industrial applications requiring precise alignment and dependable power transmission. This product is offered in High Strength and Low Profile styles and available in steel, stainless steel, and aluminum.



SPECIFICATIONS DETAILS
PART NUMBER 7S106106K
TYPE Low Profile
DESIGN
Two-Piece Clamp Design for quick installation and easy shaft alignment without disturbing adjacent equipment
MATERIAL
Stainless Steel (303) offers excellent corrosion resistance, strength, and durability for demanding environments
SERIES Signature
ALLOY 303
FINISH None
APPROXIMATE WEIGHT 2.31 lb
COUNTRY OF ORIGIN USA
UPC CODE 662786016417
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes



DIMENSIONAL ATTRIBUTES
BORE SIZE A 1-3/8 in
KEYWAY A 5/16 in
BORE SIZE B 1-3/8 in
KEYWAY B 5/16 in
OUTSIDE DIAMETER 2.250 in
TOTAL LENGTH 3.500 in
RECESSED SCREW No
SCREW SIZE 1/4-28 x 5/8 in
SCREW MATERIAL 303 Stainless Steel



CAPACITIES
SCREW SEATING TORQUE 65 in-lb
AXIAL HOLD 775 lbs
APPLICATIONS
Ideal for automation systems, motion control equipment, machinery assemblies, and industrial applications
BRAND Stafford Manufacturing
Description

The 1-3/8" x 1-3/8" Stainless Steel (303) One-Piece Clamp Rigid Shaft Coupling with Keyway - Low Profile is a precision-engineered coupling designed to connect aligned shafts and make them function as a single unit with zero backlash. Its one-piece clamp design provides high clamping power, easy adjustment, and a non-marring grip, while the standard keyway adds greater torque capacity and fixed shaft phasing for accurate shaft synchronization. Made from 303 stainless steel, it offers excellent corrosion resistance, strength, and durability for demanding environments. The Low Profile design features a clamp screw that protrudes beyond the outside diameter (OD), providing a compact shaft connection solution. With a straight-through bore, it is ideal for automation systems, motion control equipment, machinery assemblies, and industrial applications requiring precise alignment and dependable power transmission. This product is offered in High Strength and Low Profile styles and available in steel, stainless steel, and aluminum.



SPECIFICATIONS DETAILS
PART NUMBER 7S106106K
TYPE Low Profile
DESIGN
Two-Piece Clamp Design for quick installation and easy shaft alignment without disturbing adjacent equipment
MATERIAL
Stainless Steel (303) offers excellent corrosion resistance, strength, and durability for demanding environments
SERIES Signature
ALLOY 303
FINISH None
APPROXIMATE WEIGHT 2.31 lb
COUNTRY OF ORIGIN USA
UPC CODE 662786016417
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes



DIMENSIONAL ATTRIBUTES
BORE SIZE A 1-3/8 in
KEYWAY A 5/16 in
BORE SIZE B 1-3/8 in
KEYWAY B 5/16 in
OUTSIDE DIAMETER 2.250 in
TOTAL LENGTH 3.500 in
RECESSED SCREW No
SCREW SIZE 1/4-28 x 5/8 in
SCREW MATERIAL 303 Stainless Steel



CAPACITIES
SCREW SEATING TORQUE 65 in-lb
AXIAL HOLD 775 lbs
APPLICATIONS
Ideal for automation systems, motion control equipment, machinery assemblies, and industrial applications
BRAND Stafford Manufacturing
Stafford Manufacturing by Stafford Manufacturing

SKU:7S106106K

1-3/8" x 1-3/8" Stainless Steel (303) One-Piece Clamp Rigid Shaft Coupling with Keyway - Low Profile

Regular price
$329.42
Sale price
$329.42
Regular price
Shipping calculated at checkout.
