The 5/8" x 5/8" Stainless Steel (303) Two-Piece Clamp Rigid Shaft Coupling with Keyway - Low Profile is designed to connect two aligned shafts and make them function as one with zero backlash. Its two-piece clamp design completely separates for convenient assembly, installation, and adjustment, making it easy to position on shafts without removing other components. The standard keyway provides added torque capacity and maintains fixed shaft phasing for reliable power transmission. Precision machined with high clamping power and a non-marring design, it provides secure shaft engagement and dependable performance. Made from 303 stainless steel, it offers excellent corrosion resistance, strength, and durability for demanding applications.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 7S010010FK | |
| TYPE | Low Profile | |
| DESIGN |
Two-piece design for easy installation, repositioning, and adjustment
|
|
| MATERIAL |
Stainless Steel (303) offers excellent corrosion resistance, strength, and durability for demanding applications
|
|
| SERIES | Signature | |
| ALLOY | 303 | |
| FINISH | None | |
| APPROXIMATE WEIGHT | 0.54 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786018039 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE SIZE A | 5/8 in | |
| KEYWAY A | 3/16 in | |
| BORE SIZE B | 5/8 in | |
| KEYWAY B | 3/16 in | |
| OUTSIDE DIAMETER | 1.313 in | |
| TOTAL LENGTH | 2.000 in | |
| RECESSED SCREW | No | |
| SCREW SIZE | 10-32 x 5/8 in | |
| SCREW MATERIAL | 303 Stainless Steel | |
| DISCLAIMER |
Stafford parts identified in the cross reference guide are the closest substitute offered and may not be an exact match. Dimensions or other elements critical to your application should be verified.
|
|
| CAPACITIES | ||
| SCREW SEATING TORQUE | 27 in-lb | |
| AXIAL HOLD | 398 lbs | |
| APPLICATIONS |
Ideal for machinery, automation equipment, conveyors, motion-control systems, and power transmission systems
|
|
| BRAND | Stafford Manufacturing |
The 5/8" x 5/8" Stainless Steel (303) Two-Piece Clamp Rigid Shaft Coupling with Keyway - Low Profile is designed to connect two aligned shafts and make them function as one with zero backlash. Its two-piece clamp design completely separates for convenient assembly, installation, and adjustment, making it easy to position on shafts without removing other components. The standard keyway provides added torque capacity and maintains fixed shaft phasing for reliable power transmission. Precision machined with high clamping power and a non-marring design, it provides secure shaft engagement and dependable performance. Made from 303 stainless steel, it offers excellent corrosion resistance, strength, and durability for demanding applications.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 7S010010FK | |
| TYPE | Low Profile | |
| DESIGN |
Two-piece design for easy installation, repositioning, and adjustment
|
|
| MATERIAL |
Stainless Steel (303) offers excellent corrosion resistance, strength, and durability for demanding applications
|
|
| SERIES | Signature | |
| ALLOY | 303 | |
| FINISH | None | |
| APPROXIMATE WEIGHT | 0.54 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786018039 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE SIZE A | 5/8 in | |
| KEYWAY A | 3/16 in | |
| BORE SIZE B | 5/8 in | |
| KEYWAY B | 3/16 in | |
| OUTSIDE DIAMETER | 1.313 in | |
| TOTAL LENGTH | 2.000 in | |
| RECESSED SCREW | No | |
| SCREW SIZE | 10-32 x 5/8 in | |
| SCREW MATERIAL | 303 Stainless Steel | |
| DISCLAIMER |
Stafford parts identified in the cross reference guide are the closest substitute offered and may not be an exact match. Dimensions or other elements critical to your application should be verified.
|
|
| CAPACITIES | ||
| SCREW SEATING TORQUE | 27 in-lb | |
| AXIAL HOLD | 398 lbs | |
| APPLICATIONS |
Ideal for machinery, automation equipment, conveyors, motion-control systems, and power transmission systems
|
|
| BRAND | Stafford Manufacturing |
SKU:7S010010FK

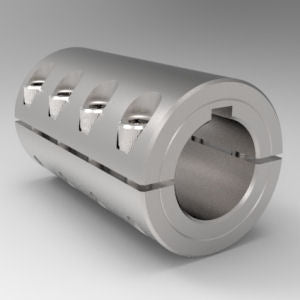

5/8" x 5/8" Stainless Steel (303) Two-Piece Clamp Rigid Shaft Coupling with Keyway - Low Profile
- Regular price
- $159.80
- Sale price
- $159.80
- Regular price
-
