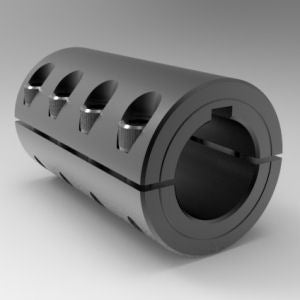

The 1-3/4" x 1-3/4" Steel (Black Oxide) Two-Piece Clamp Rigid Shaft Coupling with Keyway - Low Profile is a precision-engineered coupling designed to connect aligned shafts and make them function as a single unit with zero backlash. Its two-piece clamp design simplifies installation, removal, and repositioning without the need to disassemble surrounding components, while the standard keyway adds greater torque capacity and fixed shaft phasing for accurate shaft synchronization. Made from black oxide steel, it offers strength, durability, and reliable performance. The Low Profile design features a clamp screw that protrudes beyond the outside diameter (OD), providing a compact shaft connection solution. With a straight-through bore, it is ideal for automation systems, motion control equipment, machinery assemblies, and industrial applications requiring precise alignment and dependable power transmission. This product is offered in High Strength and Low Profile styles and available in steel, stainless steel, and aluminum.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 7L112112FK | |
| TYPE | Low Profile | |
| DESIGN |
Two-Piece Clamp Design for quick installation and easy shaft alignment without disturbing adjacent equipment
|
|
| MATERIAL |
Steel (Black Oxide) offers excellent strength, durability, and reliable performance
|
|
| SERIES | Signature | |
| ALLOY | 1215 | |
| FINISH | Black Oxide | |
| APPROXIMATE WEIGHT | 4.09 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786018008 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE SIZE A | 1-3/4 in | |
| KEYWAY A | 3/8 in | |
| BORE SIZE B | 1-3/4 in | |
| KEYWAY B | 0.375 in | |
| OUTSIDE DIAMETER | 2.750 in | |
| TOTAL LENGTH | 4.125 in | |
| RECESSED SCREW | No | |
| SCREW SIZE | 5/16-24 x 1 in | |
| SCREW MATERIAL | Alloy Steel | |
| DISCLAIMER | ||
| DISCLAIMER |
Stafford parts identified in the cross reference guide are the closest substitute offered and may not be an exact match. Dimensions or other elements critical to your application should be verified
|
|
| CAPACITIES | ||
| SCREW SEATING TORQUE | 324 in-lb | |
| AXIAL HOLD | 3700 lb | |
| APPLICATIONS |
Ideal for automation systems, motion control equipment, machinery assemblies, and industrial applications
|
|
| BRAND | Stafford Manufacturing |
The 1-3/4" x 1-3/4" Steel (Black Oxide) Two-Piece Clamp Rigid Shaft Coupling with Keyway - Low Profile is a precision-engineered coupling designed to connect aligned shafts and make them function as a single unit with zero backlash. Its two-piece clamp design simplifies installation, removal, and repositioning without the need to disassemble surrounding components, while the standard keyway adds greater torque capacity and fixed shaft phasing for accurate shaft synchronization. Made from black oxide steel, it offers strength, durability, and reliable performance. The Low Profile design features a clamp screw that protrudes beyond the outside diameter (OD), providing a compact shaft connection solution. With a straight-through bore, it is ideal for automation systems, motion control equipment, machinery assemblies, and industrial applications requiring precise alignment and dependable power transmission. This product is offered in High Strength and Low Profile styles and available in steel, stainless steel, and aluminum.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 7L112112FK | |
| TYPE | Low Profile | |
| DESIGN |
Two-Piece Clamp Design for quick installation and easy shaft alignment without disturbing adjacent equipment
|
|
| MATERIAL |
Steel (Black Oxide) offers excellent strength, durability, and reliable performance
|
|
| SERIES | Signature | |
| ALLOY | 1215 | |
| FINISH | Black Oxide | |
| APPROXIMATE WEIGHT | 4.09 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786018008 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE SIZE A | 1-3/4 in | |
| KEYWAY A | 3/8 in | |
| BORE SIZE B | 1-3/4 in | |
| KEYWAY B | 0.375 in | |
| OUTSIDE DIAMETER | 2.750 in | |
| TOTAL LENGTH | 4.125 in | |
| RECESSED SCREW | No | |
| SCREW SIZE | 5/16-24 x 1 in | |
| SCREW MATERIAL | Alloy Steel | |
| DISCLAIMER | ||
| DISCLAIMER |
Stafford parts identified in the cross reference guide are the closest substitute offered and may not be an exact match. Dimensions or other elements critical to your application should be verified
|
|
| CAPACITIES | ||
| SCREW SEATING TORQUE | 324 in-lb | |
| AXIAL HOLD | 3700 lb | |
| APPLICATIONS |
Ideal for automation systems, motion control equipment, machinery assemblies, and industrial applications
|
|
| BRAND | Stafford Manufacturing |
SKU:7L112112FK
1-3/4" x 1-3/4" Steel (Black Oxide) Two-Piece Clamp Rigid Shaft Coupling with Keyway - Low Profile
