The 1-1/8" x 1" Steel (Black Oxide) Two-Piece Clamp Rigid Shaft Coupling Low Profile is designed to connect aligned shafts and make them function as one rigid unit, providing zero-backlash torque transmission and precise shaft synchronization. Its low-profile design features a compact size that saves space while maintaining strong clamping performance. The two-piece clamp construction allows easy assembly, removal, and adjustment without disturbing surrounding components, while the precision-machined, non-marring bore provides a secure grip without damaging shafts. Available in straight-through or stepped bore configurations, this coupling delivers high clamping power and reliable operation. This product is offered in High Strength, Low Profile and Heavy Duty styles. Stocked in steel, stainless steel, and aluminum.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 7L102100F | |
| TYPE | Low Profile | |
| DESIGN |
Two-piece clamp construction allows easy assembly, removal, and adjustment without disturbing surrounding components
|
|
| MATERIAL |
Steel (Black Oxide) offers excellent strength, durability, and corrosion resistance
|
|
| SERIES | Signature | |
| ALLOY | 1215 | |
| FINISH | Black Oxide | |
| APPROXIMATE WEIGHT | 1.54 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786017124 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| TORQUE CAPACITY | 1500.00 lb·in | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE SIZE A | 1-1/8 in | |
| BORE SIZE B | 1 in | |
| OUTSIDE DIAMETER | 1.875 in | |
| TOTAL LENGTH | 3.125 in | |
| RECESSED SCREW | No | |
| SCREW SIZE | 1/4-28 x 5/8 in | |
| SCREW MATERIAL | Alloy Steel | |
| CAPACITIES | ||
| SCREW SEATING TORQUE | 162 in-lb | |
| AXIAL HOLD | 2320 lb | |
| TORQUE CAPACITY | 1704 lb·in | |
| APPLICATIONS |
Ideal for automation, robotics, CNC machinery, motion control systems, and industrial equipment requiring precise and dependable shaft connections
|
|
| BRAND | Stafford Manufacturing |
The 1-1/8" x 1" Steel (Black Oxide) Two-Piece Clamp Rigid Shaft Coupling Low Profile is designed to connect aligned shafts and make them function as one rigid unit, providing zero-backlash torque transmission and precise shaft synchronization. Its low-profile design features a compact size that saves space while maintaining strong clamping performance. The two-piece clamp construction allows easy assembly, removal, and adjustment without disturbing surrounding components, while the precision-machined, non-marring bore provides a secure grip without damaging shafts. Available in straight-through or stepped bore configurations, this coupling delivers high clamping power and reliable operation. This product is offered in High Strength, Low Profile and Heavy Duty styles. Stocked in steel, stainless steel, and aluminum.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 7L102100F | |
| TYPE | Low Profile | |
| DESIGN |
Two-piece clamp construction allows easy assembly, removal, and adjustment without disturbing surrounding components
|
|
| MATERIAL |
Steel (Black Oxide) offers excellent strength, durability, and corrosion resistance
|
|
| SERIES | Signature | |
| ALLOY | 1215 | |
| FINISH | Black Oxide | |
| APPROXIMATE WEIGHT | 1.54 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786017124 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| TORQUE CAPACITY | 1500.00 lb·in | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE SIZE A | 1-1/8 in | |
| BORE SIZE B | 1 in | |
| OUTSIDE DIAMETER | 1.875 in | |
| TOTAL LENGTH | 3.125 in | |
| RECESSED SCREW | No | |
| SCREW SIZE | 1/4-28 x 5/8 in | |
| SCREW MATERIAL | Alloy Steel | |
| CAPACITIES | ||
| SCREW SEATING TORQUE | 162 in-lb | |
| AXIAL HOLD | 2320 lb | |
| TORQUE CAPACITY | 1704 lb·in | |
| APPLICATIONS |
Ideal for automation, robotics, CNC machinery, motion control systems, and industrial equipment requiring precise and dependable shaft connections
|
|
| BRAND | Stafford Manufacturing |
SKU:7L102100F

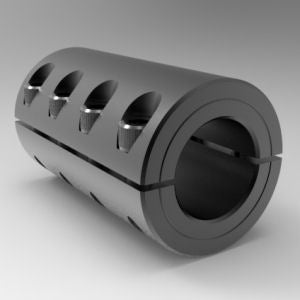

1-1/8" x 1" Steel (Black Oxide) Two-Piece Clamp Rigid Shaft Coupling Low Profile
