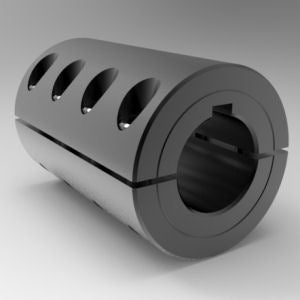

The 5/8" x 5/8" Steel (Black Oxide) Two-Piece Clamp Rigid Shaft Coupling with Keyway - High Strength is designed to connect two aligned shafts and make them function as one with zero backlash. Its two-piece clamp design completely separates for convenient assembly, installation, and adjustment, making it easy to position on shafts without removing other components. The standard keyway provides added torque capacity and maintains fixed shaft phasing for reliable power transmission. Precision machined with high clamping power and a non-marring design, it provides secure shaft engagement and dependable performance. Made from steel with a black oxide finish, it offers excellent strength, durability, and wear resistance for demanding applications.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 5L010010FK | |
| TYPE | High Strength | |
| DESIGN |
Two-piece design for easy installation, repositioning, and adjustment
|
|
| MATERIAL |
Steel (Black Oxide) offers a combination of mechanical strength from the steel and surface protection from the black oxide coating
|
|
| SERIES | Signature | |
| ALLOY | 1215 | |
| FINISH | Black Oxide | |
| APPROXIMATE WEIGHT | 0.84 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786017643 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE SIZE A | 5/8 in | |
| KEYWAY A | 3/16 in | |
| BORE SIZE B | 5/8 in | |
| KEYWAY B | 3/16 in | |
| OUTSIDE DIAMETER | 1.500 in | |
| TOTAL LENGTH | 2.250 in | |
| RECESSED SCREW | Yes | |
| SCREW SIZE | 10-32 x 5/8 in | |
| SCREW MATERIAL | Alloy Steel | |
| CAPACITIES | ||
| SCREW SEATING TORQUE | 68 in-lb | |
| AXIAL HOLD | 1050 lb | |
| APPLICATIONS |
Ideal for machinery, automation equipment, conveyors, motion-control systems, and power transmission systems
|
|
| BRAND | Stafford Manufacturing |
The 5/8" x 5/8" Steel (Black Oxide) Two-Piece Clamp Rigid Shaft Coupling with Keyway - High Strength is designed to connect two aligned shafts and make them function as one with zero backlash. Its two-piece clamp design completely separates for convenient assembly, installation, and adjustment, making it easy to position on shafts without removing other components. The standard keyway provides added torque capacity and maintains fixed shaft phasing for reliable power transmission. Precision machined with high clamping power and a non-marring design, it provides secure shaft engagement and dependable performance. Made from steel with a black oxide finish, it offers excellent strength, durability, and wear resistance for demanding applications.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 5L010010FK | |
| TYPE | High Strength | |
| DESIGN |
Two-piece design for easy installation, repositioning, and adjustment
|
|
| MATERIAL |
Steel (Black Oxide) offers a combination of mechanical strength from the steel and surface protection from the black oxide coating
|
|
| SERIES | Signature | |
| ALLOY | 1215 | |
| FINISH | Black Oxide | |
| APPROXIMATE WEIGHT | 0.84 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786017643 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE SIZE A | 5/8 in | |
| KEYWAY A | 3/16 in | |
| BORE SIZE B | 5/8 in | |
| KEYWAY B | 3/16 in | |
| OUTSIDE DIAMETER | 1.500 in | |
| TOTAL LENGTH | 2.250 in | |
| RECESSED SCREW | Yes | |
| SCREW SIZE | 10-32 x 5/8 in | |
| SCREW MATERIAL | Alloy Steel | |
| CAPACITIES | ||
| SCREW SEATING TORQUE | 68 in-lb | |
| AXIAL HOLD | 1050 lb | |
| APPLICATIONS |
Ideal for machinery, automation equipment, conveyors, motion-control systems, and power transmission systems
|
|
| BRAND | Stafford Manufacturing |
SKU:5L010010FK
5/8" x 5/8" Steel (Black Oxide) Two-Piece Clamp Rigid Shaft Coupling with Keyway - High Strength
- Regular price
- $72.19
- Sale price
- $72.19
