The 1-1/2" x 1-1/2" Brass One-Piece Clamp Rigid Shaft Coupling is designed to securely connect two aligned shafts with zero backlash for precise and reliable torque transmission. Its precision-machined one-piece clamp design provides superior holding power compared to set-screw couplings, while the smooth bore protects shaft surfaces from damage and allows easy, non-marring installation and adjustment. Available in straight-through or stepped bore configurations, this coupling is offered in High Strength, Low Profile, and Heavy Duty styles to suit a wide range of power transmission applications. Stocked in steel, stainless steel, and aluminum.
| SPECIFICATIONS | DETAILS |
| PART NUMBER | 5BR108108 |
| TYPE | High Strength |
| DESIGN |
Smooth bore protects shaft surfaces from damage and allows easy, non-marring installation and adjustment.
|
| MATERIAL |
Brass offers excellent corrosion resistance, strength, and high machinability providing a secure shaft connection and long service life.
|
| SERIES | Signature |
| ALLOY | C360 |
| FINISH | None |
| APPROXIMATE WEIGHT | 3.15 lb |
| COUNTRY OF ORIGIN | USA |
| UPC CODE | 662786037238 |
| ROHS2 COMPLIANT | Yes |
| REACH COMPLIANT | Yes |
| TORQUE CAPACITY | 930.00 lb-in |
| DIMENSIONAL ATTRIBUTES | |
| BORE SIZE A | 1-1/2 in |
| BORE SIZE B | 1-1/2 in |
| OUTSIDE DIAMETER | 2.500 in |
| TOTAL LENGTH | 3.750 in |
| RECESSED SCREW | Yes |
| SCREW SIZE | 1/4-28 x 5/8 in |
| SCREW MATERIAL | 303 Stainless Steel |
| CAPACITIES | |
| SCREW SEATING TORQUE | 81 in-lb |
| AXIAL HOLD | 1160 lbs |
| APPLICATIONS |
Ideal for motion control systems, automation equipment, conveyors, packaging machines, robotics, and other precision power transmission.
|
| BRAND | Stafford Manufacturing |
The 1-1/2" x 1-1/2" Brass One-Piece Clamp Rigid Shaft Coupling is designed to securely connect two aligned shafts with zero backlash for precise and reliable torque transmission. Its precision-machined one-piece clamp design provides superior holding power compared to set-screw couplings, while the smooth bore protects shaft surfaces from damage and allows easy, non-marring installation and adjustment. Available in straight-through or stepped bore configurations, this coupling is offered in High Strength, Low Profile, and Heavy Duty styles to suit a wide range of power transmission applications. Stocked in steel, stainless steel, and aluminum.
| SPECIFICATIONS | DETAILS |
| PART NUMBER | 5BR108108 |
| TYPE | High Strength |
| DESIGN |
Smooth bore protects shaft surfaces from damage and allows easy, non-marring installation and adjustment.
|
| MATERIAL |
Brass offers excellent corrosion resistance, strength, and high machinability providing a secure shaft connection and long service life.
|
| SERIES | Signature |
| ALLOY | C360 |
| FINISH | None |
| APPROXIMATE WEIGHT | 3.15 lb |
| COUNTRY OF ORIGIN | USA |
| UPC CODE | 662786037238 |
| ROHS2 COMPLIANT | Yes |
| REACH COMPLIANT | Yes |
| TORQUE CAPACITY | 930.00 lb-in |
| DIMENSIONAL ATTRIBUTES | |
| BORE SIZE A | 1-1/2 in |
| BORE SIZE B | 1-1/2 in |
| OUTSIDE DIAMETER | 2.500 in |
| TOTAL LENGTH | 3.750 in |
| RECESSED SCREW | Yes |
| SCREW SIZE | 1/4-28 x 5/8 in |
| SCREW MATERIAL | 303 Stainless Steel |
| CAPACITIES | |
| SCREW SEATING TORQUE | 81 in-lb |
| AXIAL HOLD | 1160 lbs |
| APPLICATIONS |
Ideal for motion control systems, automation equipment, conveyors, packaging machines, robotics, and other precision power transmission.
|
| BRAND | Stafford Manufacturing |
SKU:5BR108108

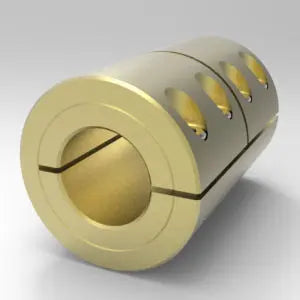

1-1/2" x 1-1/2" Brass One-Piece Clamp Rigid Shaft Coupling
