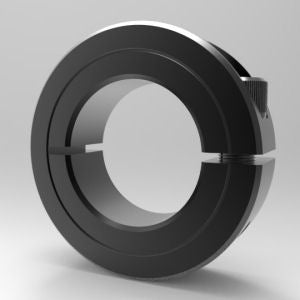

Precision low-profile steel shaft collar with black oxide finish for secure positioning | 2-5/8" Steel (Black Oxide) One-Piece Clamp Shaft Collar - Low Profile | 7L210
    Precision low-profile steel shaft collar with black oxide finish for secure positioning | 2-5/8" Steel (Black Oxide) One-Piece Clamp Shaft Collar - Low Profile | 7L210
Precision low-profile steel shaft collar with black oxide finish for secure positioning | 2-5/8" Steel (Black Oxide) One-Piece Clamp Shaft Collar - Low Profile | 7L210
Precision low-profile steel shaft collar with black oxide finish for secure positioning | 2-5/8" Steel (Black Oxide) One-Piece Clamp Shaft Collar - Low Profile | 7L210
    Precision low-profile steel shaft collar with black oxide finish for secure positioning | 2-5/8" Steel (Black Oxide) One-Piece Clamp Shaft Collar - Low Profile | 7L210
Precision low-profile steel shaft collar with black oxide finish for secure positioning | 2-5/8" Steel (Black Oxide) One-Piece Clamp Shaft Collar - Low Profile | 7L210
Description
The 2-5/8" Steel (Black Oxide) One-Piece Clamp Shaft Collar - Low Profile is designed to provide secure shaft positioning and reliable holding power on standard round shafts, whether hard or soft, as well as on thin-wall tubing and split hubs. Its one-piece clamp construction enables fast installation and easy adjustment while delivering a strong, non-marring grip that protects shaft surfaces from damage. Precision-machined for accurate fit and consistent clamping performance, the collar offers high holding power without the shaft damage often associated with set-screw designs. The low-profile design in which the clamp screw protrudes beyond the outside diameter, for secure shaft clamping in space-constrained applications. The clamp shaft collars are stocked in steel, stainless steel, aluminum, nylon and Delrin and can be offered in 3 styles such as: High Strength, Low Profile and Heavy Duty. Standard Series offers economy-priced versions of low-profile styles (31LXXX and 31SXXX parts).





SPECIFICATIONS DETAILS
PART NUMBER 7L210
TYPE Low Profile
DESIGN
One-piece clamp construction enables fast installation and easy adjustment.
MATERIAL
Steel (Black Oxide) offers high strength, excellent durability, improved wear resistance, and added corrosion protection while maintaining a low-reflective surface.
SERIES Signature
ALLOY C1026
FINISH Black Oxide
APPROXIMATE WEIGHT 1.52 lb
COUNTRY OF ORIGIN USA
UPC CODE 662786002748
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes
DIMENSIONAL ATTRIBUTES
BORE SIZE 2-5/8 in
OUTSIDE DIAMETER 3.875 in
WIDTH 0.875 in
RECESSED SCREW No
SCREW SIZE 3/8-24 x 1 in
SCREW MATERIAL Alloy Steel

CAPACITIES
SCREW SEATING TORQUE 588 in lb
AXIAL HOLD 4500 lb

APPLICATIONS
Ideal for shaft positioning, bearing retention, conveyors, machine tools, packaging equipment, and industrial machinery applications.
BRAND Stafford Manufacturing



Shaft Collar Basics Video


Description
The 2-5/8" Steel (Black Oxide) One-Piece Clamp Shaft Collar - Low Profile is designed to provide secure shaft positioning and reliable holding power on standard round shafts, whether hard or soft, as well as on thin-wall tubing and split hubs. Its one-piece clamp construction enables fast installation and easy adjustment while delivering a strong, non-marring grip that protects shaft surfaces from damage. Precision-machined for accurate fit and consistent clamping performance, the collar offers high holding power without the shaft damage often associated with set-screw designs. The low-profile design in which the clamp screw protrudes beyond the outside diameter, for secure shaft clamping in space-constrained applications. The clamp shaft collars are stocked in steel, stainless steel, aluminum, nylon and Delrin and can be offered in 3 styles such as: High Strength, Low Profile and Heavy Duty. Standard Series offers economy-priced versions of low-profile styles (31LXXX and 31SXXX parts).





SPECIFICATIONS DETAILS
PART NUMBER 7L210
TYPE Low Profile
DESIGN
One-piece clamp construction enables fast installation and easy adjustment.
MATERIAL
Steel (Black Oxide) offers high strength, excellent durability, improved wear resistance, and added corrosion protection while maintaining a low-reflective surface.
SERIES Signature
ALLOY C1026
FINISH Black Oxide
APPROXIMATE WEIGHT 1.52 lb
COUNTRY OF ORIGIN USA
UPC CODE 662786002748
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes
DIMENSIONAL ATTRIBUTES
BORE SIZE 2-5/8 in
OUTSIDE DIAMETER 3.875 in
WIDTH 0.875 in
RECESSED SCREW No
SCREW SIZE 3/8-24 x 1 in
SCREW MATERIAL Alloy Steel

CAPACITIES
SCREW SEATING TORQUE 588 in lb
AXIAL HOLD 4500 lb

APPLICATIONS
Ideal for shaft positioning, bearing retention, conveyors, machine tools, packaging equipment, and industrial machinery applications.
BRAND Stafford Manufacturing



Shaft Collar Basics Video


Stafford Manufacturing by Stafford Manufacturing

7L210

2-5/8" Steel (Black Oxide) One-Piece Clamp Shaft Collar - Low Profile

$56.76
$56.76
Shipping calculated at checkout.
Shipping & returns
Shipping is calculated at checkout and shown before payment. Eligible returns may be requested within 30 days of receipt. Exclusions apply; non-defective returns may incur a restocking fee of up to 25%, and shipping charges are non-refundable. See our Shipping and Refund policies for details.
