The 1-1/4" x 1" Steel (Black Oxide) One-Piece Clamp Rigid Shaft Coupling Low Profile is a precision-engineered coupling designed to join aligned shafts and make them function as a single unit with zero backlash. Its one-piece clamp design provides high clamping power, easy adjustment, and a smooth bore that prevents shaft damage while delivering superior torque capacity compared to set-screw-type couplings. Made from black oxide steel, it offers strength, durability, and reliable performance. The Low Profile design features a clamp screw that extends beyond the outside diameter (OD), making it suitable for compact shaft connection applications. Ideal for automation systems, motion control equipment, machinery assemblies, and industrial applications requiring secure and accurate shaft alignment. This product is offered in High Strength, Low Profile and Heavy Duty styles and available in steel, stainless steel, and aluminum.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 7L104100 | |
| TYPE | Low Profile | |
| DESIGN |
One-piece clamp design provides high clamping power, easy adjustment, and a smooth bore that prevents shaft damage
|
|
| MATERIAL |
Steel (Black Oxide) offers strength, durability, and reliable performance
|
|
| SERIES | Signature | |
| ALLOY | 1215 | |
| FINISH | Black Oxide | |
| APPROXIMATE WEIGHT | 2.07 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786015472 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| TORQUE CAPACITY | 1500.00 lb·in | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE SIZE A | 1-1/4 in | |
| BORE SIZE B | 1 in | |
| OUTSIDE DIAMETER | 2.063 in | |
| TOTAL LENGTH | 3.250 in | |
| RECESSED SCREW | No | |
| SCREW SIZE | 1/4-28 x 5/8 in | |
| SCREW MATERIAL | Alloy Steel | |
| CAPACITIES | ||
| SCREW SEATING TORQUE | 162 in-lb | |
| AXIAL HOLD | 2320 lb | |
| APPLICATIONS |
Ideal for automation systems, motion control equipment, machinery assemblies, and industrial applications
|
|
| BRAND | Stafford Manufacturing |
The 1-1/4" x 1" Steel (Black Oxide) One-Piece Clamp Rigid Shaft Coupling Low Profile is a precision-engineered coupling designed to join aligned shafts and make them function as a single unit with zero backlash. Its one-piece clamp design provides high clamping power, easy adjustment, and a smooth bore that prevents shaft damage while delivering superior torque capacity compared to set-screw-type couplings. Made from black oxide steel, it offers strength, durability, and reliable performance. The Low Profile design features a clamp screw that extends beyond the outside diameter (OD), making it suitable for compact shaft connection applications. Ideal for automation systems, motion control equipment, machinery assemblies, and industrial applications requiring secure and accurate shaft alignment. This product is offered in High Strength, Low Profile and Heavy Duty styles and available in steel, stainless steel, and aluminum.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 7L104100 | |
| TYPE | Low Profile | |
| DESIGN |
One-piece clamp design provides high clamping power, easy adjustment, and a smooth bore that prevents shaft damage
|
|
| MATERIAL |
Steel (Black Oxide) offers strength, durability, and reliable performance
|
|
| SERIES | Signature | |
| ALLOY | 1215 | |
| FINISH | Black Oxide | |
| APPROXIMATE WEIGHT | 2.07 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786015472 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| TORQUE CAPACITY | 1500.00 lb·in | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE SIZE A | 1-1/4 in | |
| BORE SIZE B | 1 in | |
| OUTSIDE DIAMETER | 2.063 in | |
| TOTAL LENGTH | 3.250 in | |
| RECESSED SCREW | No | |
| SCREW SIZE | 1/4-28 x 5/8 in | |
| SCREW MATERIAL | Alloy Steel | |
| CAPACITIES | ||
| SCREW SEATING TORQUE | 162 in-lb | |
| AXIAL HOLD | 2320 lb | |
| APPLICATIONS |
Ideal for automation systems, motion control equipment, machinery assemblies, and industrial applications
|
|
| BRAND | Stafford Manufacturing |
SKU:7L104100

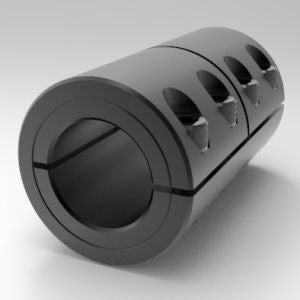

1-1/4" x 1" Steel (Black Oxide) One-Piece Clamp Rigid Shaft Coupling Low Profile
- Regular price
- $156.30
- Sale price
- $156.30
