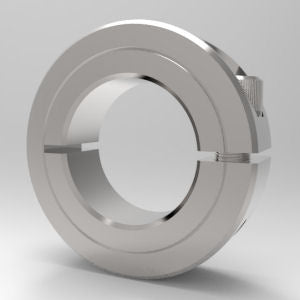

Corrosion-resistant stainless steel shaft collar with low-profile clamp design for precision applications | 1-5/8" Stainless Steel (316/316L) One-Piece Clamp Shaft Collar - Low Profile | 7C110
    Corrosion-resistant stainless steel shaft collar with low-profile clamp design for precision applications | 1-5/8" Stainless Steel (316/316L) One-Piece Clamp Shaft Collar - Low Profile | 7C110
Corrosion-resistant stainless steel shaft collar with low-profile clamp design for precision applications | 1-5/8" Stainless Steel (316/316L) One-Piece Clamp Shaft Collar - Low Profile | 7C110
Corrosion-resistant stainless steel shaft collar with low-profile clamp design for precision applications | 1-5/8" Stainless Steel (316/316L) One-Piece Clamp Shaft Collar - Low Profile | 7C110
    Corrosion-resistant stainless steel shaft collar with low-profile clamp design for precision applications | 1-5/8" Stainless Steel (316/316L) One-Piece Clamp Shaft Collar - Low Profile | 7C110
Corrosion-resistant stainless steel shaft collar with low-profile clamp design for precision applications | 1-5/8" Stainless Steel (316/316L) One-Piece Clamp Shaft Collar - Low Profile | 7C110
Description
The 1-5/8" Stainless Steel (316/316L) One-Piece Clamp Shaft Collar - Low Profile is designed for secure shaft positioning on standard round shafts, thin-wall tubing, and split hub applications. Precision-machined from 316/316L stainless steel, it provides excellent corrosion resistance, smooth bore protection for shaft surfaces, and superior holding power compared to set-screw type collars. Its one-piece clamp design allows easy adjustment while delivering high clamping force and reliable shaft retention. This collar is offered in High Strength, Low Profile, and Heavy Duty styles to accommodate different application requirements. The High Strength style keeps the clamp screw within the outside diameter (OD), the Low Profile style extends the clamp screw beyond the OD, and the Heavy Duty style uses a larger clamp screw and outside diameter for up to twice the holding power. Stocked in steel, stainless steel, aluminum, nylon, and Delrin.
Standard Series offers economy-priced versions of low-profile styles (31LXXX and 31SXXX parts).





SPECIFICATIONS DETAILS
PART NUMBER 7C110
TYPE Low Profile
DESIGN
One-piece clamp design ensures secure positioning, easy adjustment, and non-marring performance.
MATERIAL
Stainless Steel (316/316L) offers exceptional corrosion resistance, high durability, and excellent performance in harsh, moisture-rich, and chemical environments.
SERIES Signature
ALLOY 316/316L
FINISH Shiny
APPROXIMATE WEIGHT 0.72 lb
COUNTRY OF ORIGIN USA
UPC CODE 662786024870
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes
DIMENSIONAL ATTRIBUTES
BORE SIZE 1-5/8 in
OUTSIDE DIAMETER 2.750 in
WIDTH 0.688 in
RECESSED SCREW No
SCREW SIZE 5/16-24 x 1 in
SCREW MATERIAL 316 Stainless Steel
CAPACITIES
SCREW SEATING TORQUE 131 in-lb
AXIAL HOLD 960 lbs


APPLICATIONS
Ideal for marine equipment, food processing machinery, pharmaceutical equipment, chemical processing systems, and water treatment equipment.
BRAND Stafford Manufacturing




Shaft Collar Basics Video


Description
The 1-5/8" Stainless Steel (316/316L) One-Piece Clamp Shaft Collar - Low Profile is designed for secure shaft positioning on standard round shafts, thin-wall tubing, and split hub applications. Precision-machined from 316/316L stainless steel, it provides excellent corrosion resistance, smooth bore protection for shaft surfaces, and superior holding power compared to set-screw type collars. Its one-piece clamp design allows easy adjustment while delivering high clamping force and reliable shaft retention. This collar is offered in High Strength, Low Profile, and Heavy Duty styles to accommodate different application requirements. The High Strength style keeps the clamp screw within the outside diameter (OD), the Low Profile style extends the clamp screw beyond the OD, and the Heavy Duty style uses a larger clamp screw and outside diameter for up to twice the holding power. Stocked in steel, stainless steel, aluminum, nylon, and Delrin.
Standard Series offers economy-priced versions of low-profile styles (31LXXX and 31SXXX parts).





SPECIFICATIONS DETAILS
PART NUMBER 7C110
TYPE Low Profile
DESIGN
One-piece clamp design ensures secure positioning, easy adjustment, and non-marring performance.
MATERIAL
Stainless Steel (316/316L) offers exceptional corrosion resistance, high durability, and excellent performance in harsh, moisture-rich, and chemical environments.
SERIES Signature
ALLOY 316/316L
FINISH Shiny
APPROXIMATE WEIGHT 0.72 lb
COUNTRY OF ORIGIN USA
UPC CODE 662786024870
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes
DIMENSIONAL ATTRIBUTES
BORE SIZE 1-5/8 in
OUTSIDE DIAMETER 2.750 in
WIDTH 0.688 in
RECESSED SCREW No
SCREW SIZE 5/16-24 x 1 in
SCREW MATERIAL 316 Stainless Steel
CAPACITIES
SCREW SEATING TORQUE 131 in-lb
AXIAL HOLD 960 lbs


APPLICATIONS
Ideal for marine equipment, food processing machinery, pharmaceutical equipment, chemical processing systems, and water treatment equipment.
BRAND Stafford Manufacturing




Shaft Collar Basics Video


Stafford Manufacturing by Stafford Manufacturing

7C110

1-5/8" Stainless Steel (316/316L) One-Piece Clamp Shaft Collar - Low Profile

$78.54
$78.54
Shipping calculated at checkout.
