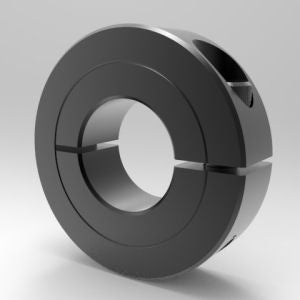

Heavy-duty black oxide steel clamp shaft collar with 2-15/16 inch bore for secure shaft retention | 2-15/16" Steel (Black Oxide) One-Piece Clamp Shaft Collar Heavy Duty | 1L215HD
    Heavy-duty black oxide steel clamp shaft collar with 2-15/16 inch bore for secure shaft retention | 2-15/16" Steel (Black Oxide) One-Piece Clamp Shaft Collar Heavy Duty | 1L215HD
Heavy-duty black oxide steel clamp shaft collar with 2-15/16 inch bore for secure shaft retention | 2-15/16" Steel (Black Oxide) One-Piece Clamp Shaft Collar Heavy Duty | 1L215HD
Heavy-duty black oxide steel clamp shaft collar with 2-15/16 inch bore for secure shaft retention | 2-15/16" Steel (Black Oxide) One-Piece Clamp Shaft Collar Heavy Duty | 1L215HD
    Heavy-duty black oxide steel clamp shaft collar with 2-15/16 inch bore for secure shaft retention | 2-15/16" Steel (Black Oxide) One-Piece Clamp Shaft Collar Heavy Duty | 1L215HD
Heavy-duty black oxide steel clamp shaft collar with 2-15/16 inch bore for secure shaft retention | 2-15/16" Steel (Black Oxide) One-Piece Clamp Shaft Collar Heavy Duty | 1L215HD
Description
The 2-15/16" Steel (Black Oxide) One-Piece Clamp Shaft Collar Heavy Duty is designed to provide secure shaft positioning and reliable holding power on standard round shafts, whether hard or soft, as well as on thin-wall tubing and split hubs. Its one-piece clamp construction enables fast installation and easy adjustment while delivering a strong, non-marring grip that protects shaft surfaces from damage. Precision-machined for accurate fit and consistent clamping performance, the collar offers high holding power without the shaft damage often associated with set-screw designs. The heavy-duty design means it is built to withstand higher loads, stronger clamping forces, and more demanding operating conditions than a standard shaft collar. The clamp shaft collars are stocked in steel, stainless steel, aluminum, nylon and Delrin and can be offered in 3 styles such as: High Strength, Low Profile and Heavy Duty.
Standard Series offers economy-priced versions of low-profile styles (31LXXX and 31SXXX parts).




SPECIFICATIONS DETAILS
PART NUMBER 1L215HD
TYPE Heavy Duty
DESIGN
One-piece clamp construction enables fast installation and easy adjustment.
MATERIAL
Steel (Black Oxide) offers a combination of mechanical strength from the steel and surface protection from the black oxide coating.
SERIES Signature
ALLOY C1026
FINISH Black Oxide
APPROXIMATE WEIGHT 2.95 lb
COUNTRY OF ORIGIN USA
UPC CODE 662786004506
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes
DIMENSIONAL ATTRIBUTES
BORE SIZE 2-15/16 in
OUTSIDE DIAMETER 4.750 in
WIDTH 1.000 in
RECESSED SCREW Yes
SCREW SIZE 1/2-20 x 1-1/4 in
SCREW MATERIAL Alloy Steel
CAPACITIES
SCREW SEATING TORQUE 1428 in-lb
AXIAL HOLD 8550 lb


APPLICATIONS
Ideal for heavy-duty power transmission systems, industrial machinery, conveyors, agricultural equipment, and material handling equipment.
BRAND Stafford Manufacturing



Shaft Collar Basics Video
