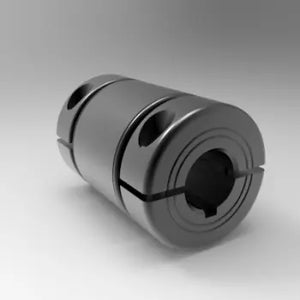

1-1/4" X 1-1/4" Precision Sleeve Coupling One-Piece Clamp-Type, Steel
    1-1/4" X 1-1/4" Precision Sleeve Coupling One-Piece Clamp-Type, Steel
1-1/4" X 1-1/4" Precision Sleeve Coupling One-Piece Clamp-Type, Steel
1-1/4" X 1-1/4" Precision Sleeve Coupling One-Piece Clamp-Type, Steel
    1-1/4" X 1-1/4" Precision Sleeve Coupling One-Piece Clamp-Type, Steel
1-1/4" X 1-1/4" Precision Sleeve Coupling One-Piece Clamp-Type, Steel
Description
The 1-1/4" x 1-1/4" Steel (Black Oxide) Precision Sleeve Coupling One-Piece with Keyway is designed to securely connect two aligned shafts with zero backlash while maintaining precise shaft alignment. Precision-machined from steel with a black oxide finish, it features a solid center section for a close-tolerance fit on ground shafting and an integral keyway for added torque capacity. The Accu-Clamp™ design incorporates self-centering clamping collars at both ends for secure, non-marring shaft retention and high clamping force. With axial runout of less than .001 TIR, it provides reliable concentricity and precision performance. Stocked In: Steel



SPECIFICATIONS

DETAILS
PART NUMBER 5L104104KPSC
TYPE High Strength
DESIGN Integral self-centering clamping collars provide a secure, non-marring grip and help maintain precise shaft alignment
MATERIAL Steel (Black Oxide) construction with black oxide finish provides excellent strength, durability, and wear resistance
APPROXIMATE WEIGHT 2.43 lb
ALLOY 1215
FINISH Black Oxide
SERIES Signature
COUNTRY ORIGIN USA
UPC CODE 662786018763
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes
DIMENSIONAL ATTRIBUTES
BORE SIZE A 1-1/4 in
KEYWAY A 1/4 in
BORE SIZE B 1-1/4 in
KEYWAY B 0.25 in
OUTSIDE DIAMETER 2.250 in
TOTAL LENGTH 3.375 in
RECESSED SCREW Yes
SCREW SIZE 1/4-28 x 3/4 in
SCREW MATERIAL Alloy Steel
CAPACITIES
SCREW SEATING TORQUE 162 in-lb
AXIAL HOLD 1450 lb
APPLICATIONS Ideal for Precision Shaft Alignment, Motion Control Systems, Industrial Automation, Robotics, CNC Machinery, Servo-Driven Equipment, Precision Machinery, OEM Assemblies
BRAND Stafford Manufacturing


Stafford's Accu-Clamp Product Line Video
Description
The 1-1/4" x 1-1/4" Steel (Black Oxide) Precision Sleeve Coupling One-Piece with Keyway is designed to securely connect two aligned shafts with zero backlash while maintaining precise shaft alignment. Precision-machined from steel with a black oxide finish, it features a solid center section for a close-tolerance fit on ground shafting and an integral keyway for added torque capacity. The Accu-Clamp™ design incorporates self-centering clamping collars at both ends for secure, non-marring shaft retention and high clamping force. With axial runout of less than .001 TIR, it provides reliable concentricity and precision performance. Stocked In: Steel



SPECIFICATIONS

DETAILS
PART NUMBER 5L104104KPSC
TYPE High Strength
DESIGN Integral self-centering clamping collars provide a secure, non-marring grip and help maintain precise shaft alignment
MATERIAL Steel (Black Oxide) construction with black oxide finish provides excellent strength, durability, and wear resistance
APPROXIMATE WEIGHT 2.43 lb
ALLOY 1215
FINISH Black Oxide
SERIES Signature
COUNTRY ORIGIN USA
UPC CODE 662786018763
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes
DIMENSIONAL ATTRIBUTES
BORE SIZE A 1-1/4 in
KEYWAY A 1/4 in
BORE SIZE B 1-1/4 in
KEYWAY B 0.25 in
OUTSIDE DIAMETER 2.250 in
TOTAL LENGTH 3.375 in
RECESSED SCREW Yes
SCREW SIZE 1/4-28 x 3/4 in
SCREW MATERIAL Alloy Steel
CAPACITIES
SCREW SEATING TORQUE 162 in-lb
AXIAL HOLD 1450 lb
APPLICATIONS Ideal for Precision Shaft Alignment, Motion Control Systems, Industrial Automation, Robotics, CNC Machinery, Servo-Driven Equipment, Precision Machinery, OEM Assemblies
BRAND Stafford Manufacturing


Stafford's Accu-Clamp Product Line Video
Stafford Manufacturing by Stafford Manufacturing

5L104104KPSC

1-1/4" x 1-1/4" Steel (Black Oxide) Precision Sleeve Coupling One-Piece with Keyway

$108.73
$108.73
Shipping calculated at checkout.
