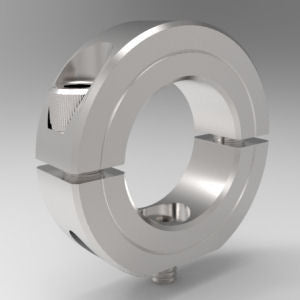

303 stainless steel mounting collar with two-piece stackable clamp and cap design | Stainless Steel (303) Mounting Collar for 1" Pipe - Two-Piece Clamp Stackable (Cap) | 19S105PCP
    303 stainless steel mounting collar with two-piece stackable clamp and cap design | Stainless Steel (303) Mounting Collar for 1" Pipe - Two-Piece Clamp Stackable (Cap) | 19S105PCP
303 stainless steel mounting collar with two-piece stackable clamp and cap design | Stainless Steel (303) Mounting Collar for 1" Pipe - Two-Piece Clamp Stackable (Cap) | 19S105PCP
303 stainless steel mounting collar with two-piece stackable clamp and cap design | Stainless Steel (303) Mounting Collar for 1" Pipe - Two-Piece Clamp Stackable (Cap) | 19S105PCP
    303 stainless steel mounting collar with two-piece stackable clamp and cap design | Stainless Steel (303) Mounting Collar for 1" Pipe - Two-Piece Clamp Stackable (Cap) | 19S105PCP
303 stainless steel mounting collar with two-piece stackable clamp and cap design | Stainless Steel (303) Mounting Collar for 1" Pipe - Two-Piece Clamp Stackable (Cap) | 19S105PCP
Description

The Stainless Steel (303) Mounting Collar for 1" Pipe - Two-Piece Clamp Stackable (Cap) is designed to mount pipes or tubes securely to components, with bores sized to match the outside diameter of standard pipe. Its two-piece construction completely separates for easy installation and can be placed or repositioned anywhere along the pipe or tube. The collars feature flats with drilled and tapped holes for secure attachment and a countersunk mounting hole for fastening to a surface or hanging from a threaded rod. The stackable design allows multiple collars to be combined for flexible mounting configurations, while the precision-machined, non-marring construction provides secure clamping and easy adjustment. Available in Regular Stackable and Stackable (Cap) styles, the Regular version has flats on two surfaces for stacking, while the Cap version has a single flat to provide a finished, rounded outside surface when no additional stacking is required. Each collar is supplied with a mounting screw. This pipe mounting collar is available in both steel and stainless steel.





SPECIFICATIONS DETAILS
PART NUMBER 19S105PCP
TYPE High Strength
DESIGN
Two-piece design for easy installation, repositioning, and adjustment
MATERIAL
Stainless Steel (303) offers excellent corrosion resistance, good machinability, and dependable strength
SERIES Solution
ALLOY 303
FINISH Shiny
APPROXIMATE WEIGHT 0.3 lb
COUNTRY OF ORIGIN USA
UPC CODE 662786025907
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes

DIMENSIONAL ATTRIBUTES
BORE SIZE 1.330 in
FOR PIPE SIZE 1 in
OUTSIDE DIAMETER 2.250 in
WIDTH 0.500 in
RECESSED SCREW Yes
SCREW SIZE 1/4-28 x 5/8 in
SCREW MATERIAL 18-8 Stainless Steel
DISTANCE ACROSS FLATS 2.156 in
BOTTOM THREADED HOLE 1/4-20
MOUNTING SCREW
#10 Flat Head Cap Screw


APPLICATIONS
Ideal for automation equipment, pipe mounting, conveyors, custom machinery, and fixture systems.

BRAND Stafford Manufacturing


Shaft Collar Basics Video


Description

The Stainless Steel (303) Mounting Collar for 1" Pipe - Two-Piece Clamp Stackable (Cap) is designed to mount pipes or tubes securely to components, with bores sized to match the outside diameter of standard pipe. Its two-piece construction completely separates for easy installation and can be placed or repositioned anywhere along the pipe or tube. The collars feature flats with drilled and tapped holes for secure attachment and a countersunk mounting hole for fastening to a surface or hanging from a threaded rod. The stackable design allows multiple collars to be combined for flexible mounting configurations, while the precision-machined, non-marring construction provides secure clamping and easy adjustment. Available in Regular Stackable and Stackable (Cap) styles, the Regular version has flats on two surfaces for stacking, while the Cap version has a single flat to provide a finished, rounded outside surface when no additional stacking is required. Each collar is supplied with a mounting screw. This pipe mounting collar is available in both steel and stainless steel.





SPECIFICATIONS DETAILS
PART NUMBER 19S105PCP
TYPE High Strength
DESIGN
Two-piece design for easy installation, repositioning, and adjustment
MATERIAL
Stainless Steel (303) offers excellent corrosion resistance, good machinability, and dependable strength
SERIES Solution
ALLOY 303
FINISH Shiny
APPROXIMATE WEIGHT 0.3 lb
COUNTRY OF ORIGIN USA
UPC CODE 662786025907
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes

DIMENSIONAL ATTRIBUTES
BORE SIZE 1.330 in
FOR PIPE SIZE 1 in
OUTSIDE DIAMETER 2.250 in
WIDTH 0.500 in
RECESSED SCREW Yes
SCREW SIZE 1/4-28 x 5/8 in
SCREW MATERIAL 18-8 Stainless Steel
DISTANCE ACROSS FLATS 2.156 in
BOTTOM THREADED HOLE 1/4-20
MOUNTING SCREW
#10 Flat Head Cap Screw


APPLICATIONS
Ideal for automation equipment, pipe mounting, conveyors, custom machinery, and fixture systems.

BRAND Stafford Manufacturing


Shaft Collar Basics Video


Stafford Manufacturing by Stafford Manufacturing

SKU:19S105PCP

Stainless Steel (303) Mounting Collar for 1" Pipe - Two-Piece Clamp Stackable (Cap)

Regular price
$122.76
Sale price
$122.76
Regular price
Shipping calculated at checkout.
