Description

The Steel (Black Oxide) Mounting Collar for 1/2" Pipe - Two-Piece Clamp Stackable (Cap) is designed to mount pipes or tubes securely to components, with bores sized to match the outside diameter of standard pipe. Its two-piece construction completely separates for easy installation and can be placed or repositioned anywhere along the pipe or tube. The collars feature flats with drilled and tapped holes for secure attachment and a countersunk mounting hole for fastening to a surface or hanging from a threaded rod. The stackable design allows multiple collars to be combined for flexible mounting configurations, while the precision-machined, non-marring construction provides secure clamping and easy adjustment. Available in Regular Stackable and Stackable (Cap) styles, the Regular version has flats on two surfaces for stacking, while the Cap version has a single flat to provide a finished, rounded outside surface when no additional stacking is required. Each collar is supplied with a mounting screw. This pipe mounting collar is available in both steel and stainless steel.





SPECIFICATIONS DETAILS
PART NUMBER 19L014PCP
TYPE Low Profile
DESIGN
Two-piece design for easy installation, repositioning, and adjustment
MATERIAL
Steel (Black Oxide) offers a combination of mechanical strength from the steel and surface protection from the black oxide coating
SERIES Solution
ALLOY 1215
FINISH Black Oxide
APPROXIMATE WEIGHT 0.22 lb
COUNTRY OF ORIGIN USA
UPC CODE 662786025822
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes

DIMENSIONAL ATTRIBUTES
BORE SIZE 0.857 in
FOR PIPE SIZE 1/2 in
OUTSIDE DIAMETER 1.750 in
WIDTH 0.500 in
RECESSED SCREW No
SCREW SIZE 1/4-28 x 5/8 in
SCREW MATERIAL Alloy Steel
DISTANCE ACROSS FLATS 1.656 in
BOTTOM THREADED HOLE 1/4-20
MOUNTING SCREW
#10 Flat Head Cap Screw


APPLICATIONS
Ideal for automation equipment, pipe mounting, conveyors, custom machinery, and fixture systems.

BRAND Stafford Manufacturing


Shaft Collar Basics Video


Description

The Steel (Black Oxide) Mounting Collar for 1/2" Pipe - Two-Piece Clamp Stackable (Cap) is designed to mount pipes or tubes securely to components, with bores sized to match the outside diameter of standard pipe. Its two-piece construction completely separates for easy installation and can be placed or repositioned anywhere along the pipe or tube. The collars feature flats with drilled and tapped holes for secure attachment and a countersunk mounting hole for fastening to a surface or hanging from a threaded rod. The stackable design allows multiple collars to be combined for flexible mounting configurations, while the precision-machined, non-marring construction provides secure clamping and easy adjustment. Available in Regular Stackable and Stackable (Cap) styles, the Regular version has flats on two surfaces for stacking, while the Cap version has a single flat to provide a finished, rounded outside surface when no additional stacking is required. Each collar is supplied with a mounting screw. This pipe mounting collar is available in both steel and stainless steel.





SPECIFICATIONS DETAILS
PART NUMBER 19L014PCP
TYPE Low Profile
DESIGN
Two-piece design for easy installation, repositioning, and adjustment
MATERIAL
Steel (Black Oxide) offers a combination of mechanical strength from the steel and surface protection from the black oxide coating
SERIES Solution
ALLOY 1215
FINISH Black Oxide
APPROXIMATE WEIGHT 0.22 lb
COUNTRY OF ORIGIN USA
UPC CODE 662786025822
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes

DIMENSIONAL ATTRIBUTES
BORE SIZE 0.857 in
FOR PIPE SIZE 1/2 in
OUTSIDE DIAMETER 1.750 in
WIDTH 0.500 in
RECESSED SCREW No
SCREW SIZE 1/4-28 x 5/8 in
SCREW MATERIAL Alloy Steel
DISTANCE ACROSS FLATS 1.656 in
BOTTOM THREADED HOLE 1/4-20
MOUNTING SCREW
#10 Flat Head Cap Screw


APPLICATIONS
Ideal for automation equipment, pipe mounting, conveyors, custom machinery, and fixture systems.

BRAND Stafford Manufacturing


Shaft Collar Basics Video


Stafford Manufacturing by Stafford Manufacturing

SKU:19L014PCP

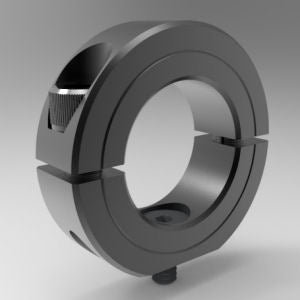

Steel (Black Oxide) Mounting Collar for 1/2" Pipe - Two-Piece Clamp Stackable (Cap)

Regular price
$44.38
Sale price
$44.38
Regular price
Shipping calculated at checkout.
