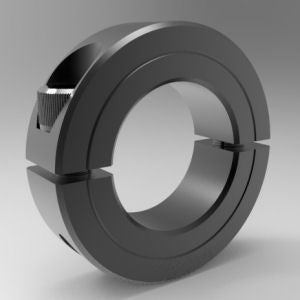

Black oxide steel metric shaft collar with two-piece clamp design | 14mm Steel (Black Oxide) Metric Shaft Collar - Two-Piece Clamp Economy | 32LM014
    Black oxide steel metric shaft collar with two-piece clamp design | 14mm Steel (Black Oxide) Metric Shaft Collar - Two-Piece Clamp Economy | 32LM014
Black oxide steel metric shaft collar with two-piece clamp design | 14mm Steel (Black Oxide) Metric Shaft Collar - Two-Piece Clamp Economy | 32LM014
Black oxide steel metric shaft collar with two-piece clamp design | 14mm Steel (Black Oxide) Metric Shaft Collar - Two-Piece Clamp Economy | 32LM014
    Black oxide steel metric shaft collar with two-piece clamp design | 14mm Steel (Black Oxide) Metric Shaft Collar - Two-Piece Clamp Economy | 32LM014
Black oxide steel metric shaft collar with two-piece clamp design | 14mm Steel (Black Oxide) Metric Shaft Collar - Two-Piece Clamp Economy | 32LM014
Description
The 14mm Steel (Black Oxide) Metric Shaft Collar - Two-Piece Clamp Economy is designed for secure shaft positioning on metric round shafts, thin-wall tubing, and split hub applications. Its fully metric design, including metric clamp screws, ensures compatibility with metric equipment. Precision-machined from black oxide steel, it features a smooth bore that protects shaft surfaces from damage, while the larger clamp screws provide extra holding power. The two-piece clamp design allows the collar to be completely disassembled and installed anywhere along the shaft for easy assembly, adjustment, and maintenance. This shaft collar is available in both steel and stainless steel options..





SPECIFICATIONS DETAILS
PART NUMBER 32LM014
TYPE Economy
DESIGN
Two-piece clamp design enables installation without shaft-end access
MATERIAL
Steel (Black Oxide) provides excellent strength, wear resistance, and durability
SERIES Economy
ALLOY A283grC
FINISH Black Oxide
APPROXIMATE WEIGHT 0.11 lb
COUNTRY OF ORIGIN China
UPC CODE 662786036057
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes
DIMENSIONAL ATTRIBUTES
BORE SIZE 14 mm
OUTSIDE DIAMETER 30 mm
WIDTH 11 mm
RECESSED SCREW No
SCREW SIZE M4 x .7 x 12MM
SCREW MATERIAL Alloy Steel

CAPACITIES
SCREW SEATING TORQUE 2.46 Nm
AXIAL HOLD 1925 N

APPLICATIONS
Ideal for industrial machinery, automation equipment, robotics, conveyors, shaft positioning, and motion control systems.
BRAND Stafford Manufacturing

Shaft Collar Basics Video


Description
The 14mm Steel (Black Oxide) Metric Shaft Collar - Two-Piece Clamp Economy is designed for secure shaft positioning on metric round shafts, thin-wall tubing, and split hub applications. Its fully metric design, including metric clamp screws, ensures compatibility with metric equipment. Precision-machined from black oxide steel, it features a smooth bore that protects shaft surfaces from damage, while the larger clamp screws provide extra holding power. The two-piece clamp design allows the collar to be completely disassembled and installed anywhere along the shaft for easy assembly, adjustment, and maintenance. This shaft collar is available in both steel and stainless steel options..





SPECIFICATIONS DETAILS
PART NUMBER 32LM014
TYPE Economy
DESIGN
Two-piece clamp design enables installation without shaft-end access
MATERIAL
Steel (Black Oxide) provides excellent strength, wear resistance, and durability
SERIES Economy
ALLOY A283grC
FINISH Black Oxide
APPROXIMATE WEIGHT 0.11 lb
COUNTRY OF ORIGIN China
UPC CODE 662786036057
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes
DIMENSIONAL ATTRIBUTES
BORE SIZE 14 mm
OUTSIDE DIAMETER 30 mm
WIDTH 11 mm
RECESSED SCREW No
SCREW SIZE M4 x .7 x 12MM
SCREW MATERIAL Alloy Steel

CAPACITIES
SCREW SEATING TORQUE 2.46 Nm
AXIAL HOLD 1925 N

APPLICATIONS
Ideal for industrial machinery, automation equipment, robotics, conveyors, shaft positioning, and motion control systems.
BRAND Stafford Manufacturing

Shaft Collar Basics Video


Stafford Manufacturing by Stafford Manufacturing

32LM014

14mm Steel (Black Oxide) Metric Shaft Collar - Two-Piece Clamp Economy

$3.49
$3.49
Shipping calculated at checkout.
Shipping & returns
Shipping is calculated at checkout and shown before payment. Eligible returns may be requested within 30 days of receipt. Exclusions apply; non-defective returns may incur a restocking fee of up to 25%, and shipping charges are non-refundable. See our Shipping and Refund policies for details.
