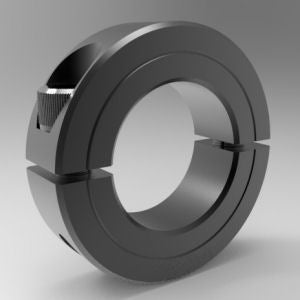

Black oxide steel metric shaft collar with two-piece clamp design | 3mm Steel (Black Oxide) Metric Shaft Collar - Two-Piece Clamp Eoconomy | 32LM003
    Black oxide steel metric shaft collar with two-piece clamp design | 3mm Steel (Black Oxide) Metric Shaft Collar - Two-Piece Clamp Eoconomy | 32LM003
Black oxide steel metric shaft collar with two-piece clamp design | 3mm Steel (Black Oxide) Metric Shaft Collar - Two-Piece Clamp Eoconomy | 32LM003
Black oxide steel metric shaft collar with two-piece clamp design | 3mm Steel (Black Oxide) Metric Shaft Collar - Two-Piece Clamp Eoconomy | 32LM003
    Black oxide steel metric shaft collar with two-piece clamp design | 3mm Steel (Black Oxide) Metric Shaft Collar - Two-Piece Clamp Eoconomy | 32LM003
Black oxide steel metric shaft collar with two-piece clamp design | 3mm Steel (Black Oxide) Metric Shaft Collar - Two-Piece Clamp Eoconomy | 32LM003
Description
The 3mm Steel (Black Oxide) Metric Shaft Collar - Two-Piece Clamp Economy is designed for secure shaft positioning on metric round shafts, thin-wall tubing, and split hub applications. Its fully metric design, including metric clamp screws, ensures compatibility with metric equipment. Precision-machined from black oxide steel, it features a smooth bore that protects shaft surfaces from damage, while the larger clamp screws provide extra holding power. The two-piece clamp design allows the collar to be completely disassembled and installed anywhere along the shaft for easy assembly, adjustment, and maintenance. This shaft collar is available in both steel and stainless steel options.





SPECIFICATIONS DETAILS
PART NUMBER 32LM003
TYPE Economy
DESIGN
Two-piece clamp design enables installation without shaft-end access
MATERIAL
Steel (Black Oxide) provides excellent strength, wear resistance, and durability
SERIES Economy
ALLOY 1215
FINISH Black Oxide
APPROXIMATE WEIGHT 0.03 lb
COUNTRY OF ORIGIN China
UPC CODE 662786035982
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes
DIMENSIONAL ATTRIBUTES
BORE SIZE 3 mm
OUTSIDE DIAMETER 16 mm
WIDTH 9 mm
RECESSED SCREW No
SCREW SIZE M3 x .5 x 8MM
SCREW MATERIAL Alloy Steel

CAPACITIES
SCREW SEATING TORQUE 1.05 NM
AXIAL HOLD 1100 N

APPLICATIONS
Ideal for industrial machinery, automation equipment, robotics, conveyors, shaft positioning, and motion control systems.
BRAND Stafford Manufacturing
