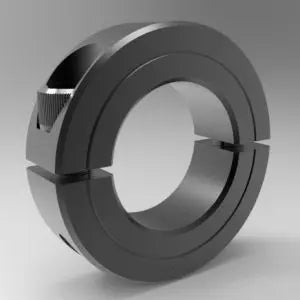

Black oxide steel metric shaft collar with two-piece clamp design | 50mm Steel (Black Oxide) Metric Shaft Collar Two-Piece Clamp | 2LM050
    Black oxide steel metric shaft collar with two-piece clamp design | 50mm Steel (Black Oxide) Metric Shaft Collar Two-Piece Clamp | 2LM050
Black oxide steel metric shaft collar with two-piece clamp design | 50mm Steel (Black Oxide) Metric Shaft Collar Two-Piece Clamp | 2LM050
Black oxide steel metric shaft collar with two-piece clamp design | 50mm Steel (Black Oxide) Metric Shaft Collar Two-Piece Clamp | 2LM050
    Black oxide steel metric shaft collar with two-piece clamp design | 50mm Steel (Black Oxide) Metric Shaft Collar Two-Piece Clamp | 2LM050
Black oxide steel metric shaft collar with two-piece clamp design | 50mm Steel (Black Oxide) Metric Shaft Collar Two-Piece Clamp | 2LM050
Description
The 50mm Steel (Black Oxide) Metric Shaft Collar Two-Piece Clamp is designed for secure shaft positioning on metric round shafts, thin-wall tubing, and split hub applications. Its fully metric design, including metric clamp screws, ensures compatibility with metric equipment. Precision-machined from black oxide steel, it features a smooth bore that protects shaft surfaces from damage, while the larger clamp screws provide extra holding power. The two-piece clamp design allows the collar to be completely disassembled and installed anywhere along the shaft for easy assembly, adjustment, and maintenance. This shaft collar is available in both steel and stainless steel options.





SPECIFICATIONS DETAILS
PART NUMBER 2LM050
TYPE Low Profile
DESIGN
Two-piece clamp design allows the collar to be completely disassembled and installed anywhere along the shaft for easy assembly, adjustment, and maintenance
MATERIAL
Steel (Black Oxide) provides excellent strength, wear resistance, and durability
SERIES Signature
ALLOY 1215
FINISH Black Oxide
APPROXIMATE WEIGHT 0.93 lb
COUNTRY OF ORIGIN USA
UPC CODE 662786019524
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes

DIMENSIONAL ATTRIBUTES
BORE SIZE 50 mm
OUTSIDE DIAMETER 78 mm
WIDTH 19 mm
RECESSED SCREW No
SCREW SIZE M8 x 1.25 x 25MM
SCREW MATERIAL Alloy Steel
CAPACITIES
SCREW SEATING TORQUE 20.7 Nm
AXIAL HOLD 9080 N

APPLICATIONS
Ideal for industrial machinery, automation equipment, robotics, conveyors, shaft positioning, and motion control systems.
BRAND Stafford Manufacturing
