Description

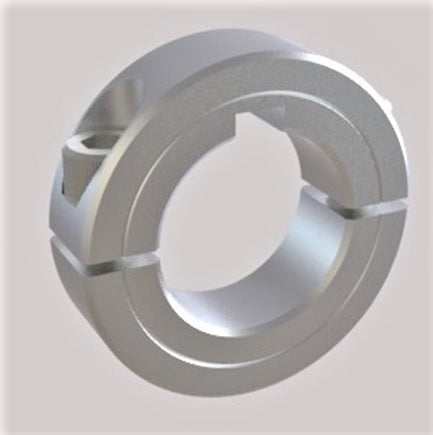

    The 50mm Stainless Steel (303) Metric Shaft Collar Two-Piece Clamp with Keyway features a precision-machined two-piece clamp design with a keyway for secure positioning and easy installation anywhere along a shaft. Its smooth bore design prevents shaft damage, and the larger metric clamp screws deliver increased holding force for a strong, stable grip. Fully metric in design, including the clamping hardware, this heavy-duty collar is suitable for standard round shafts, hard or soft shafts, thin-wall tubing, and split hub assemblies. Stocked in both steel and stainless steel, with and without keyways.





    SPECIFICATIONS DETAILS
    PART NUMBER 2SM050HDK
    TYPE Heavy Duty
    DESIGN
    Smooth bore design prevents shaft damage
    MATERIAL
    Stainless Steel (303) provides superior strength, excellent rust resistance, and long-lasting reliability.
    SERIES Signature
    ALLOY 303
    FINISH Shiny
    APPROXIMATE WEIGHT 1.16 lb
    COUNTRY OF ORIGIN USA
    UPC CODE 662786044847
    SCREW MATERIAL 18-8 Stainless Steel
    ROHS2 COMPLIANT Yes
    REACH COMPLIANT Yes
    DIMENSIONAL ATTRIBUTES
    BORE SIZE 50 mm
    OUTSIDE DIAMETER 84 mm
    WIDTH 22 mm
    RECESSED SCREW No
    SCREW SIZE M10 x 1.5 x 25MM
    CAPACITIES
    SCREW SEATING TORQUE 16.4 Nm
    AXIAL HOLD 6110 N


    APPLICATIONS
    Ideal for automation equipment, robotics, conveyors, machinery, and linear motion systems.
    BRAND Stafford Manufacturing
