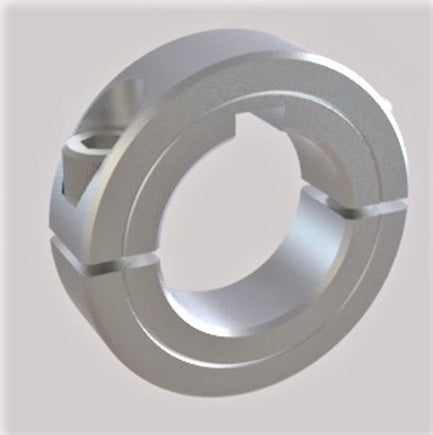

Heavy-duty stainless steel two-piece clamp shaft collar with 10mm bore for secure positioning | 10mm Stainless Steel (303) Metric Shaft Collar Two-Piece Clamp with Keyway | 2SM010HDK
    Heavy-duty stainless steel two-piece clamp shaft collar with 10mm bore for secure positioning | 10mm Stainless Steel (303) Metric Shaft Collar Two-Piece Clamp with Keyway | 2SM010HDK
Heavy-duty stainless steel two-piece clamp shaft collar with 10mm bore for secure positioning | 10mm Stainless Steel (303) Metric Shaft Collar Two-Piece Clamp with Keyway | 2SM010HDK
Heavy-duty stainless steel two-piece clamp shaft collar with 10mm bore for secure positioning | 10mm Stainless Steel (303) Metric Shaft Collar Two-Piece Clamp with Keyway | 2SM010HDK
    Heavy-duty stainless steel two-piece clamp shaft collar with 10mm bore for secure positioning | 10mm Stainless Steel (303) Metric Shaft Collar Two-Piece Clamp with Keyway | 2SM010HDK
Heavy-duty stainless steel two-piece clamp shaft collar with 10mm bore for secure positioning | 10mm Stainless Steel (303) Metric Shaft Collar Two-Piece Clamp with Keyway | 2SM010HDK
Description
    The 10mm Stainless Steel (303) Metric Shaft Collar Two-Piece Clamp with Keyway features a precision-machined two-piece clamp design with a keyway for secure positioning and easy installation anywhere along a shaft. Its smooth bore design prevents shaft damage, and the larger metric clamp screws deliver increased holding force for a strong, stable grip. Fully metric in design, including the clamping hardware, this heavy-duty collar is suitable for standard round shafts, hard or soft shafts, thin-wall tubing, and split hub assemblies. Stocked in both steel and stainless steel, with and without keyways.





    SPECIFICATIONS DETAILS
    PART NUMBER 2SM010HDK
    TYPE Heavy Duty
    DESIGN
    Smooth bore design prevents shaft damage
    MATERIAL
    Stainless Steel (303) provides superior strength, excellent rust resistance, and long-lasting reliability.
    SERIES Signature
    ALLOY 303
    FINISH Shiny
    APPROXIMATE WEIGHT 0.11 lb
    COUNTRY OF ORIGIN USA
    UPC CODE 662786044755
    SCREW MATERIAL 18-8 Stainless Steel
    ROHS2 COMPLIANT Yes
    REACH COMPLIANT Yes
    MI ITEM NUMBER 19743992
    MINO 00797X02985
    DIMENSIONAL ATTRIBUTES
    BORE SIZE 10 mm
    OUTSIDE DIAMETER 30 mm
    WIDTH 12 mm
    RECESSED SCREW No
    SCREW SIZE M4 x .7 x 12MM
    CAPACITIES
    SCREW SEATING TORQUE 0.98 Nm
    AXIAL HOLD 775 N


    APPLICATIONS
    Ideal for automation equipment, robotics, conveyors, machinery, and linear motion systems.
    BRAND Stafford Manufacturing





    Description
      The 10mm Stainless Steel (303) Metric Shaft Collar Two-Piece Clamp with Keyway features a precision-machined two-piece clamp design with a keyway for secure positioning and easy installation anywhere along a shaft. Its smooth bore design prevents shaft damage, and the larger metric clamp screws deliver increased holding force for a strong, stable grip. Fully metric in design, including the clamping hardware, this heavy-duty collar is suitable for standard round shafts, hard or soft shafts, thin-wall tubing, and split hub assemblies. Stocked in both steel and stainless steel, with and without keyways.





      SPECIFICATIONS DETAILS
      PART NUMBER 2SM010HDK
      TYPE Heavy Duty
      DESIGN
      Smooth bore design prevents shaft damage
      MATERIAL
      Stainless Steel (303) provides superior strength, excellent rust resistance, and long-lasting reliability.
      SERIES Signature
      ALLOY 303
      FINISH Shiny
      APPROXIMATE WEIGHT 0.11 lb
      COUNTRY OF ORIGIN USA
      UPC CODE 662786044755
      SCREW MATERIAL 18-8 Stainless Steel
      ROHS2 COMPLIANT Yes
      REACH COMPLIANT Yes
      MI ITEM NUMBER 19743992
      MINO 00797X02985
      DIMENSIONAL ATTRIBUTES
      BORE SIZE 10 mm
      OUTSIDE DIAMETER 30 mm
      WIDTH 12 mm
      RECESSED SCREW No
      SCREW SIZE M4 x .7 x 12MM
      CAPACITIES
      SCREW SEATING TORQUE 0.98 Nm
      AXIAL HOLD 775 N


      APPLICATIONS
      Ideal for automation equipment, robotics, conveyors, machinery, and linear motion systems.
      BRAND Stafford Manufacturing
