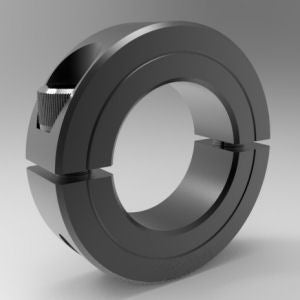

Heavy-duty black oxide steel two-piece clamp shaft collar with 35mm bore for secure positioning | 35mm Steel (Black Oxide) Metric Shaft Collar - Two-Piece Clamp | 2LM035HD
    Heavy-duty black oxide steel two-piece clamp shaft collar with 35mm bore for secure positioning | 35mm Steel (Black Oxide) Metric Shaft Collar - Two-Piece Clamp | 2LM035HD
Heavy-duty black oxide steel two-piece clamp shaft collar with 35mm bore for secure positioning | 35mm Steel (Black Oxide) Metric Shaft Collar - Two-Piece Clamp | 2LM035HD
Heavy-duty black oxide steel two-piece clamp shaft collar with 35mm bore for secure positioning | 35mm Steel (Black Oxide) Metric Shaft Collar - Two-Piece Clamp | 2LM035HD
    Heavy-duty black oxide steel two-piece clamp shaft collar with 35mm bore for secure positioning | 35mm Steel (Black Oxide) Metric Shaft Collar - Two-Piece Clamp | 2LM035HD
Heavy-duty black oxide steel two-piece clamp shaft collar with 35mm bore for secure positioning | 35mm Steel (Black Oxide) Metric Shaft Collar - Two-Piece Clamp | 2LM035HD
Description
    The 35mm Steel (Black Oxide) Metric Shaft Collar - Two-Piece Clamp is a precision-machined clamping component designed for secure shaft positioning and support. Made from durable steel with a black oxide finish for enhanced surface protection, it features a smooth bore to prevent shaft damage and larger clamp screws for increased holding force. Its fully metric design allows easy installation and adjustment on round shafts, tubing, and split-hub assemblies. Stocked in both steel and stainless steel, with and without keyways.





    SPECIFICATIONS DETAILS
    PART NUMBER 2LM035HD
    TYPE Heavy Duty
    DESIGN
    Two-piece clamp design enables easy assembly and positioning anywhere on the shaft.
    MATERIAL
    Steel (Black Oxide) for improved corrosion resistance and surface protection
    SERIES Signature
    ALLOY 1215
    FINISH Black Oxide
    APPROXIMATE WEIGHT 0.57 lb
    COUNTRY OF ORIGIN USA
    UPC CODE 662786044489
    ROHS2 COMPLIANT Yes
    REACH COMPLIANT Yes
    SCREW MATERIAL Alloy Steel
    DIMENSIONAL ATTRIBUTES
    BORE SIZE 35 mm
    OUTSIDE DIAMETER 63 mm
    WIDTH 18 mm
    RECESSED SCREW No
    SCREW SIZE M8 x 1.25 x 25MM
    CAPACITIES
    SCREW SEATING TORQUE 20.7 Nm
    AXIAL HOLD 9080 N


    APPLICATIONS
    Ideal for automation equipment, robotics, conveyors, machinery, linear motion systems.
    BRAND Stafford Manufacturing


    Description
      The 35mm Steel (Black Oxide) Metric Shaft Collar - Two-Piece Clamp is a precision-machined clamping component designed for secure shaft positioning and support. Made from durable steel with a black oxide finish for enhanced surface protection, it features a smooth bore to prevent shaft damage and larger clamp screws for increased holding force. Its fully metric design allows easy installation and adjustment on round shafts, tubing, and split-hub assemblies. Stocked in both steel and stainless steel, with and without keyways.





      SPECIFICATIONS DETAILS
      PART NUMBER 2LM035HD
      TYPE Heavy Duty
      DESIGN
      Two-piece clamp design enables easy assembly and positioning anywhere on the shaft.
      MATERIAL
      Steel (Black Oxide) for improved corrosion resistance and surface protection
      SERIES Signature
      ALLOY 1215
      FINISH Black Oxide
      APPROXIMATE WEIGHT 0.57 lb
      COUNTRY OF ORIGIN USA
      UPC CODE 662786044489
      ROHS2 COMPLIANT Yes
      REACH COMPLIANT Yes
      SCREW MATERIAL Alloy Steel
      DIMENSIONAL ATTRIBUTES
      BORE SIZE 35 mm
      OUTSIDE DIAMETER 63 mm
      WIDTH 18 mm
      RECESSED SCREW No
      SCREW SIZE M8 x 1.25 x 25MM
      CAPACITIES
      SCREW SEATING TORQUE 20.7 Nm
      AXIAL HOLD 9080 N


      APPLICATIONS
      Ideal for automation equipment, robotics, conveyors, machinery, linear motion systems.
      BRAND Stafford Manufacturing


      Stafford Manufacturing by Stafford Manufacturing

      2LM035HD

      35mm Steel (Black Oxide) Metric Shaft Collar - Two-Piece Clamp

      $22.18
      $22.18
      Shipping calculated at checkout.
