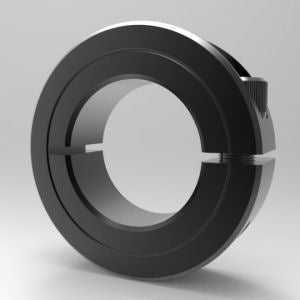

Secure metric one-piece clamp shaft collar for shaft positioning | 45mm Steel (Black Oxide) Metric Shaft Collar One-Piece Clamp | 31LM045
    Secure metric one-piece clamp shaft collar for shaft positioning | 45mm Steel (Black Oxide) Metric Shaft Collar One-Piece Clamp | 31LM045
Secure metric one-piece clamp shaft collar for shaft positioning | 45mm Steel (Black Oxide) Metric Shaft Collar One-Piece Clamp | 31LM045
Secure metric one-piece clamp shaft collar for shaft positioning | 45mm Steel (Black Oxide) Metric Shaft Collar One-Piece Clamp | 31LM045
    Secure metric one-piece clamp shaft collar for shaft positioning | 45mm Steel (Black Oxide) Metric Shaft Collar One-Piece Clamp | 31LM045
Secure metric one-piece clamp shaft collar for shaft positioning | 45mm Steel (Black Oxide) Metric Shaft Collar One-Piece Clamp | 31LM045
Description
The 45mm Steel (Black Oxide) Metric Shaft Collar One-Piece Clamp is designed for secure shaft positioning on metric round shafts, thin-wall tubing, and split hub applications. Its fully metric design, including the clamp screw, ensures compatibility with metric shafting and equipment. Precision-machined from black oxide steel, it provides excellent strength, wear resistance, and durability, while the smooth bore protects shaft surfaces from damage. The one-piece clamp design delivers superior holding power over set-screw type collars with a secure, non-marring grip and high clamping force. This is available in both steel and stainless steel options.





SPECIFICATIONS DETAILS
PART NUMBER 31LM045
TYPE Economy
DESIGN
Fully metric design includes metric clamping screws for compatibility with metric equipment
MATERIAL
Steel (Black Oxide) construction provides excellent strength, wear resistance, and durability
SERIES Economy
ALLOY A283grC
FINISH Black Oxide
APPROXIMATE WEIGHT 0.85 lb
COUNTRY OF ORIGIN China
UPC CODE 662786035753
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes

DIMENSIONAL ATTRIBUTES
BORE SIZE 45 mm
OUTSIDE DIAMETER 73 mm
WIDTH 19 mm
RECESSED SCREW No
SCREW SIZE M6 x 1.0 x 18MM
SCREW MATERIAL Alloy Steel
CAPACITIES
SCREW SEATING TORQUE 8.48 Nm
AXIAL HOLD 4650 N

APPLICATIONS
Ideal for industrial machinery, automation equipment, conveyors, motors, gearboxes, machine tools, robotics, thin-wall tubing, and split-hub applications.
BRAND Stafford Manufacturing

Description
The 45mm Steel (Black Oxide) Metric Shaft Collar One-Piece Clamp is designed for secure shaft positioning on metric round shafts, thin-wall tubing, and split hub applications. Its fully metric design, including the clamp screw, ensures compatibility with metric shafting and equipment. Precision-machined from black oxide steel, it provides excellent strength, wear resistance, and durability, while the smooth bore protects shaft surfaces from damage. The one-piece clamp design delivers superior holding power over set-screw type collars with a secure, non-marring grip and high clamping force. This is available in both steel and stainless steel options.





SPECIFICATIONS DETAILS
PART NUMBER 31LM045
TYPE Economy
DESIGN
Fully metric design includes metric clamping screws for compatibility with metric equipment
MATERIAL
Steel (Black Oxide) construction provides excellent strength, wear resistance, and durability
SERIES Economy
ALLOY A283grC
FINISH Black Oxide
APPROXIMATE WEIGHT 0.85 lb
COUNTRY OF ORIGIN China
UPC CODE 662786035753
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes

DIMENSIONAL ATTRIBUTES
BORE SIZE 45 mm
OUTSIDE DIAMETER 73 mm
WIDTH 19 mm
RECESSED SCREW No
SCREW SIZE M6 x 1.0 x 18MM
SCREW MATERIAL Alloy Steel
CAPACITIES
SCREW SEATING TORQUE 8.48 Nm
AXIAL HOLD 4650 N

APPLICATIONS
Ideal for industrial machinery, automation equipment, conveyors, motors, gearboxes, machine tools, robotics, thin-wall tubing, and split-hub applications.
BRAND Stafford Manufacturing

Stafford Manufacturing by Stafford Manufacturing

31LM045

45mm Steel (Black Oxide) Metric Shaft Collar One-Piece Clamp

$17.46
