The 75mm Steel (Black Oxide) Metric Shaft Collar - One Piece Clamp is designed for secure shaft positioning on metric round shafts, thin-wall tubing, and split hub applications. Precision-machined from black oxide steel, it provides superior holding power compared to set-screw type collars while protecting shaft surfaces with its smooth bore design. The one-piece clamp construction allows easy adjustment and provides a secure, non-marring grip. Stocked In: Steel, Stainless Steel
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 1LM075 | |
| TYPE | Low Profile | |
| DESIGN | Fully metric design, including the clamp screw, ensures compatibility with metric equipment while maintaining high clamping force and reliable shaft retention | |
| MATERIAL | Steel (Black Oxide) offers a combination of mechanical strength from the steel and surface protection from the black oxide coating | |
| APPROXIMATE WEIGHT | 1.29 lb | |
| ALLOY | 1215 | |
| FINISH | Black Oxide | |
| SERIES | Signature | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786019074 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE SIZE | 75 mm | |
| OUTSIDE DIAMETER | 103 mm | |
| WIDTH | 19 mm | |
| RECESSED SCREW | No | |
| SCREW SIZE | M8 x 1.25 x 25MM | |
| SCREW MATERIAL | Alloy Steel | |
| CAPACITIES | ||
| SCREW SEATING TORQUE | 20.7 Nm | |
| AXIAL HOLD | 9080 N | |
| APPLICATION | Ideal for Metric Industrial Automation Systems, Shaft Positioning, Shaft Retention, Industrial Machinery, Power Transmission, Automation Systems, Motion Control, Robotics, CNC Machines, Conveyors, Packaging Equipment, Processing Equipment | |
| BRAND | Stafford Manufacturing |
The 75mm Steel (Black Oxide) Metric Shaft Collar - One Piece Clamp is designed for secure shaft positioning on metric round shafts, thin-wall tubing, and split hub applications. Precision-machined from black oxide steel, it provides superior holding power compared to set-screw type collars while protecting shaft surfaces with its smooth bore design. The one-piece clamp construction allows easy adjustment and provides a secure, non-marring grip. Stocked In: Steel, Stainless Steel
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 1LM075 | |
| TYPE | Low Profile | |
| DESIGN | Fully metric design, including the clamp screw, ensures compatibility with metric equipment while maintaining high clamping force and reliable shaft retention | |
| MATERIAL | Steel (Black Oxide) offers a combination of mechanical strength from the steel and surface protection from the black oxide coating | |
| APPROXIMATE WEIGHT | 1.29 lb | |
| ALLOY | 1215 | |
| FINISH | Black Oxide | |
| SERIES | Signature | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786019074 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE SIZE | 75 mm | |
| OUTSIDE DIAMETER | 103 mm | |
| WIDTH | 19 mm | |
| RECESSED SCREW | No | |
| SCREW SIZE | M8 x 1.25 x 25MM | |
| SCREW MATERIAL | Alloy Steel | |
| CAPACITIES | ||
| SCREW SEATING TORQUE | 20.7 Nm | |
| AXIAL HOLD | 9080 N | |
| APPLICATION | Ideal for Metric Industrial Automation Systems, Shaft Positioning, Shaft Retention, Industrial Machinery, Power Transmission, Automation Systems, Motion Control, Robotics, CNC Machines, Conveyors, Packaging Equipment, Processing Equipment | |
| BRAND | Stafford Manufacturing |
SKU:1LM075

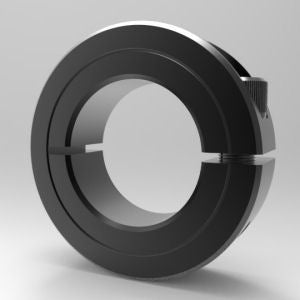

75mm Steel (Black Oxide) Metric Shaft Collar - One Piece Clamp
- Regular price
- $38.30
- Sale price
- $38.30
