Description

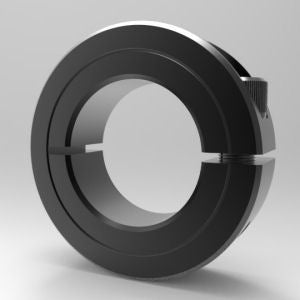

The 65mm Steel (Black Oxide) Metric Shaft Collar - One-Piece Clamp is designed for secure shaft positioning on metric round shafts, thin-wall tubing, and split hub applications. Its fully metric design, including the metric clamp screw, ensures compatibility with metric equipment. Precision-machined from black oxide steel, it features a smooth bore that protects shaft surfaces from damage while providing superior holding power over set-screw type collars. The one-piece clamp design allows for easy installation, adjustment, and reliable shaft retention. This product is available in steel and stainless steel.





SPECIFICATIONS DETAILS
PART NUMBER 1LM065
TYPE Economy
DESIGN
One-piece clamp design delivers a secure, non-marring grip with high clamping force for dependable performance.
MATERIAL
Steel (Black Oxide) provides excellent strength, wear resistance, and durability
SERIES Economy
ALLOY A283grC
FINISH Black Oxide
APPROXIMATE WEIGHT 1.14 lb
COUNTRY OF ORIGIN USA
UPC CODE 662786019050
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes

DIMENSIONAL ATTRIBUTES
BORE SIZE 65 mm
OUTSIDE DIAMETER 93 mm
WIDTH 19 mm
RECESSED SCREW No
SCREW SIZE M8 x 1.25 x 25MM
SCREW MATERIAL Alloy Steel
CAPACITIES
SCREW SEATING TORQUE 20.7 Nm
AXIAL HOLD 9080 N

APPLICATIONS
Ideal for industrial machinery, automation equipment, robotics, conveyors, shaft positioning, and motion control systems.
BRAND Stafford Manufacturing
