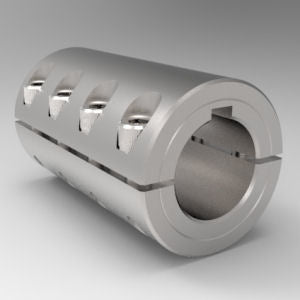

The 14mm x 14mm Stainless Steel (303) Metric Rigid Shaft Coupling Two-Piece Clamp with Keyway is designed to connect two aligned metric shafts with zero backlash for precise torque transmission. Its fully metric design, including metric clamp screws, ensures compatibility with metric equipment. Standard keyways provide added torque capacity and fixed shaft phasing, while the two-piece clamp design allows easy assembly and adjustment. Precision-machined from 303 stainless steel, it features a smooth bore, high clamping force, excellent corrosion resistance, and superior torque capacity over set-screw-type couplings. Stocked in: Steel, Stainless steel
| SPECIFICATIONS | DETAILS |
| PART NUMBER | 5SM014014FK |
| TYPE | Low Profile |
| DESIGN | Two-piece clamp design ensures secure shaft alignment and reliable performance. |
| MATERIAL | Stainless Steel (303) construction provides excellent corrosion resistance, strength, and durability |
| APPROXIMATE WEIGHT | 0.45 lb |
| SERIES | Signature |
| ALLOY | 303 |
| FINISH | Shiny |
| COUNTRY ORIGIN | USA |
| UPC CODE | 662786021398 |
| ROHS2 COMPLIANT | Yes |
| REACH COMPLIANT | Yes |
| DIMENSIONAL ATTRIBUTES | |
| BORE SIZE A | 14 mm |
| KEYWAY A | 5 mm |
| BORE SIZE B | 14 mm |
| KEYWAY B | 5 mm |
| OUTSIDE DIAMETER | 30 mm |
| TOTAL LENGTH | 50 mm |
| RECESSED SCREW | No |
| SCREW SIZE | M4x0.7 |
| SCREW MATERIAL | 303 Stainless Steel |
| CAPACITIES | |
| SCREW SEATING TORQUE | 0.98 Nm |
| AXIAL HOLD | 1160 N |
| APPLICATION | Ideal for metric industrial automation systems, electric motors, gearboxes, conveyors, CNC machines, robotics, pumps, compressors, and other metric power transmission applications |
| BRAND | Stafford Manufacturing |
Stafford Shaft Collar Basics Video
The 14mm x 14mm Stainless Steel (303) Metric Rigid Shaft Coupling Two-Piece Clamp with Keyway is designed to connect two aligned metric shafts with zero backlash for precise torque transmission. Its fully metric design, including metric clamp screws, ensures compatibility with metric equipment. Standard keyways provide added torque capacity and fixed shaft phasing, while the two-piece clamp design allows easy assembly and adjustment. Precision-machined from 303 stainless steel, it features a smooth bore, high clamping force, excellent corrosion resistance, and superior torque capacity over set-screw-type couplings. Stocked in: Steel, Stainless steel
| SPECIFICATIONS | DETAILS |
| PART NUMBER | 5SM014014FK |
| TYPE | Low Profile |
| DESIGN | Two-piece clamp design ensures secure shaft alignment and reliable performance. |
| MATERIAL | Stainless Steel (303) construction provides excellent corrosion resistance, strength, and durability |
| APPROXIMATE WEIGHT | 0.45 lb |
| SERIES | Signature |
| ALLOY | 303 |
| FINISH | Shiny |
| COUNTRY ORIGIN | USA |
| UPC CODE | 662786021398 |
| ROHS2 COMPLIANT | Yes |
| REACH COMPLIANT | Yes |
| DIMENSIONAL ATTRIBUTES | |
| BORE SIZE A | 14 mm |
| KEYWAY A | 5 mm |
| BORE SIZE B | 14 mm |
| KEYWAY B | 5 mm |
| OUTSIDE DIAMETER | 30 mm |
| TOTAL LENGTH | 50 mm |
| RECESSED SCREW | No |
| SCREW SIZE | M4x0.7 |
| SCREW MATERIAL | 303 Stainless Steel |
| CAPACITIES | |
| SCREW SEATING TORQUE | 0.98 Nm |
| AXIAL HOLD | 1160 N |
| APPLICATION | Ideal for metric industrial automation systems, electric motors, gearboxes, conveyors, CNC machines, robotics, pumps, compressors, and other metric power transmission applications |
| BRAND | Stafford Manufacturing |
Stafford Shaft Collar Basics Video
SKU:5SM014014FK
14mm x 14mm Stainless Steel (303) Metric Rigid Shaft Coupling Two-Piece Clamp with Keyway
