The 9mm x 9mm Stainless Steel (303) Metric Rigid Shaft Coupling One-Piece Clamp with Keyway is designed to connect two aligned shafts and make them function as one with zero backlash. Its one-piece clamp design provides secure, high-strength clamping, while the standard keyway increases torque capacity and maintains fixed shaft phasing for reliable power transmission. Precision machined with a smooth bore, it allows easy adjustment and helps protect shafts from damage. Made from 303 stainless steel, it provides excellent corrosion resistance, strength, and durability for reliable performance in demanding applications.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 5SM009009K | |
| TYPE | Low Profile | |
| DESIGN |
One-piece clamp design for secure, reliable gripping with simple installation
|
|
| MATERIAL |
Stainless Steel (303) offers excellent corrosion resistance, good machinability, and dependable strength
|
|
| SERIES | Signature | |
| ALLOY | 303 | |
| FINISH | Shiny | |
| APPROXIMATE WEIGHT | 0.21 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786020605 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE SIZE A | 9 mm | |
| KEYWAY A | 3 mm | |
| BORE SIZE B | 9 mm | |
| KEYWAY B | 3 mm | |
| OUTSIDE DIAMETER | 24 mm | |
| TOTAL LENGTH | 35 mm | |
| RECESSED SCREW | No | |
| SCREW SIZE | M3 x .5 x 10MM | |
| SCREW MATERIAL | 303 Stainless Steel | |
| CAPACITIES | ||
| SCREW SEATING TORQUE | 0.43 Nm | |
| AXIAL HOLD | 698 N | |
| APPLICATIONS |
Ideal for automation equipment, conveyors, machinery, motion-control systems, and power transmission applications
|
|
| BRAND | Stafford Manufacturing |
The 9mm x 9mm Stainless Steel (303) Metric Rigid Shaft Coupling One-Piece Clamp with Keyway is designed to connect two aligned shafts and make them function as one with zero backlash. Its one-piece clamp design provides secure, high-strength clamping, while the standard keyway increases torque capacity and maintains fixed shaft phasing for reliable power transmission. Precision machined with a smooth bore, it allows easy adjustment and helps protect shafts from damage. Made from 303 stainless steel, it provides excellent corrosion resistance, strength, and durability for reliable performance in demanding applications.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 5SM009009K | |
| TYPE | Low Profile | |
| DESIGN |
One-piece clamp design for secure, reliable gripping with simple installation
|
|
| MATERIAL |
Stainless Steel (303) offers excellent corrosion resistance, good machinability, and dependable strength
|
|
| SERIES | Signature | |
| ALLOY | 303 | |
| FINISH | Shiny | |
| APPROXIMATE WEIGHT | 0.21 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786020605 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE SIZE A | 9 mm | |
| KEYWAY A | 3 mm | |
| BORE SIZE B | 9 mm | |
| KEYWAY B | 3 mm | |
| OUTSIDE DIAMETER | 24 mm | |
| TOTAL LENGTH | 35 mm | |
| RECESSED SCREW | No | |
| SCREW SIZE | M3 x .5 x 10MM | |
| SCREW MATERIAL | 303 Stainless Steel | |
| CAPACITIES | ||
| SCREW SEATING TORQUE | 0.43 Nm | |
| AXIAL HOLD | 698 N | |
| APPLICATIONS |
Ideal for automation equipment, conveyors, machinery, motion-control systems, and power transmission applications
|
|
| BRAND | Stafford Manufacturing |
SKU:5SM009009K

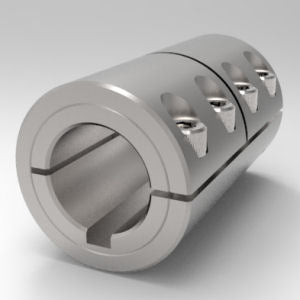

9mm x 9mm Stainless Steel (303) Metric Rigid Shaft Coupling One-Piece Clamp with Keyway
