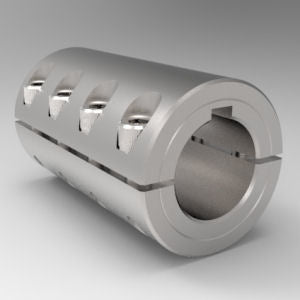

The 9mm x 9mm Stainless Steel (303) Metric Rigid Shaft Coupling Two-Piece Clamp with Keyway is designed to connect two aligned shafts and make them function as one with zero backlash. Its two-piece clamp design completely separates for convenient assembly, installation, and adjustment, while the standard keyway provides added torque capacity and maintains fixed shaft phasing for reliable power transmission. Fully metric in all specifications, including the clamping screws, it offers convenient compatibility with metric machinery. Precision machined with high clamping power, its smooth bore helps protect shafts from damage and provides superior torque capacity compared to set-screw-type couplings. Made from 303 stainless steel, it provides excellent corrosion resistance, strength, and durability for reliable performance in demanding applications.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 5SM009009FK | |
| TYPE | Low Profile | |
| DESIGN |
Two-piece design for easy installation, repositioning, and adjustment
|
|
| MATERIAL |
Stainless Steel (303) offers corrosion resistance, durability, and strength for demanding applications
|
|
| SERIES | Signature | |
| ALLOY | 303 | |
| FINISH | Shiny | |
| APPROXIMATE WEIGHT | 0.20 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786021367 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE SIZE A | 9 mm | |
| KEYWAY A | 3 mm | |
| BORE SIZE B | 9 mm | |
| KEYWAY B | 3 mm | |
| OUTSIDE DIAMETER | 24 mm | |
| TOTAL LENGTH | 35 mm | |
| RECESSED SCREW | No | |
| SCREW SIZE | M3x0.5 | |
| SCREW MATERIAL | 303 Stainless Steel | |
| CAPACITIES | ||
| SCREW SEATING TORQUE | 0.43 Nm | |
| AXIAL HOLD | 698 N | |
| APPLICATIONS |
Ideal for machinery, automation equipment, conveyors, motion-control systems, and power transmission systems
|
|
| BRAND | Stafford Manufacturing |
The 9mm x 9mm Stainless Steel (303) Metric Rigid Shaft Coupling Two-Piece Clamp with Keyway is designed to connect two aligned shafts and make them function as one with zero backlash. Its two-piece clamp design completely separates for convenient assembly, installation, and adjustment, while the standard keyway provides added torque capacity and maintains fixed shaft phasing for reliable power transmission. Fully metric in all specifications, including the clamping screws, it offers convenient compatibility with metric machinery. Precision machined with high clamping power, its smooth bore helps protect shafts from damage and provides superior torque capacity compared to set-screw-type couplings. Made from 303 stainless steel, it provides excellent corrosion resistance, strength, and durability for reliable performance in demanding applications.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 5SM009009FK | |
| TYPE | Low Profile | |
| DESIGN |
Two-piece design for easy installation, repositioning, and adjustment
|
|
| MATERIAL |
Stainless Steel (303) offers corrosion resistance, durability, and strength for demanding applications
|
|
| SERIES | Signature | |
| ALLOY | 303 | |
| FINISH | Shiny | |
| APPROXIMATE WEIGHT | 0.20 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786021367 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE SIZE A | 9 mm | |
| KEYWAY A | 3 mm | |
| BORE SIZE B | 9 mm | |
| KEYWAY B | 3 mm | |
| OUTSIDE DIAMETER | 24 mm | |
| TOTAL LENGTH | 35 mm | |
| RECESSED SCREW | No | |
| SCREW SIZE | M3x0.5 | |
| SCREW MATERIAL | 303 Stainless Steel | |
| CAPACITIES | ||
| SCREW SEATING TORQUE | 0.43 Nm | |
| AXIAL HOLD | 698 N | |
| APPLICATIONS |
Ideal for machinery, automation equipment, conveyors, motion-control systems, and power transmission systems
|
|
| BRAND | Stafford Manufacturing |
SKU:5SM009009FK
9mm x 9mm Stainless Steel (303) Metric Rigid Shaft Coupling Two-Piece Clamp with Keyway
