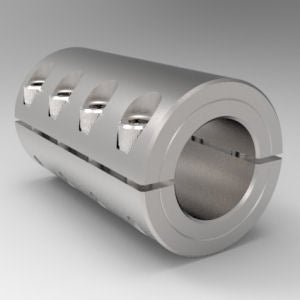

Rigid metric clamp coupling for equal 9 mm shafts | 9mm x 9mm Stainless Steel (303) Metric Rigid Shaft Coupling - Two-Piece Clamp | 5SM009009F
    Rigid metric clamp coupling for equal 9 mm shafts | 9mm x 9mm Stainless Steel (303) Metric Rigid Shaft Coupling - Two-Piece Clamp | 5SM009009F
Rigid metric clamp coupling for equal 9 mm shafts | 9mm x 9mm Stainless Steel (303) Metric Rigid Shaft Coupling - Two-Piece Clamp | 5SM009009F
Rigid metric clamp coupling for equal 9 mm shafts | 9mm x 9mm Stainless Steel (303) Metric Rigid Shaft Coupling - Two-Piece Clamp | 5SM009009F
    Rigid metric clamp coupling for equal 9 mm shafts | 9mm x 9mm Stainless Steel (303) Metric Rigid Shaft Coupling - Two-Piece Clamp | 5SM009009F
Rigid metric clamp coupling for equal 9 mm shafts | 9mm x 9mm Stainless Steel (303) Metric Rigid Shaft Coupling - Two-Piece Clamp | 5SM009009F
Description
The 9mm x 9mm Stainless Steel (303) Metric Rigid Shaft Coupling - Two-Piece Clamp is designed to securely connect two aligned 9 mm shafts, providing a rigid, zero-backlash connection for precise torque transmission and accurate rotational synchronization. Manufactured to fully metric specifications, including its clamping screws, this coupling ensures compatibility with metric shafting and equipment. Its two-piece clamp design allows the coupling to be completely separated, enabling quick installation, convenient assembly, and easy shaft adjustment or replacement without disturbing adjacent components. Precision-machined with a smooth straight-through bore, it delivers high clamping force while protecting shaft surfaces from marring or damage, ensuring reliable performance and accurate shaft alignment. Stocked in steel and stainless steel.





SPECIFICATIONS DETAILS
PART NUMBER 5SM009009F
TYPE Low Profile
DESIGN
Two-piece clamp design allows the coupling to be completely separated, enabling quick installation, convenient assembly, and easy shaft adjustment
MATERIAL
Stainless Steel (303) offers excellent mechanical strength, corrosion resistance, and reliable performance
SERIES Signature
ALLOY 303
FINISH Shiny
APPROXIMATE WEIGHT 0.21 lb
COUNTRY OF ORIGIN USA
UPC CODE 662786021046
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes
TORQUE CAPACITY 3.20 N·m

DIMENSIONAL ATTRIBUTES
BORE SIZE A 9 mm
BORE SIZE B 9 mm
OUTSIDE DIAMETER 24 mm
TOTAL LENGTH 35 mm
RECESSED SCREW No
SCREW SIZE M3x0.5
SCREW MATERIAL 303 Stainless Steel

CAPACITIES
SCREW SEATING TORQUE 0.43 Nm
AXIAL HOLD 748 N

APPLICATIONS
Ideal for motion control systems, automation systems, conveyors, machine tools, packaging machinery, and other precision power transmission applications.
BRAND Stafford Manufacturing
