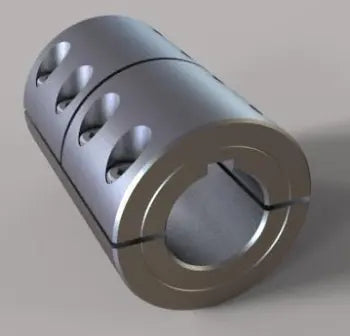

The 35mm x 35mm Steel (Black Oxide) Metric Three-Piece Clamp Coupling with Keyway is designed to securely connect two aligned metric shafts, allowing them to function as a single unit with zero backlash for precise torque transmission. Its fully metric design, including metric clamp screws, ensures compatibility with metric shafting and equipment. The integrated keyways provide added torque capacity and fixed shaft phasing, while the three-piece clamp design keeps one shaft securely in place as the other is moved or replaced for easy installation and maintenance. Precision-machined from black oxide steel, it features a smooth straight-through bore that protects shaft surfaces from damage, along with a non-marring clamp mechanism and high clamping force for a secure and reliable connection. Stocked In: Steel, Stainless Steel
| SPECIFICATIONS | DETAILS |
| PART NUMBER | 5LM035035TK |
| TYPE | Low Profile |
| DESIGN | Three-piece clamp design ensures accurate shaft alignment and dependable performance. |
| MATERIAL | Steel (Black Oxide) construction provides excellent strength, wear resistance, and durability |
| APPROXIMATE WEIGHT | 1.88 lb |
| SERIES | Signature |
| ALLOY | 1215 |
| FINISH | Black Oxide |
| COUNTRY ORIGIN | USA |
| UPC CODE | 662786042935 |
| ROHS2 COMPLIANT | Yes |
| REACH COMPLIANT | Yes |
| DIMENSIONAL ATTRIBUTES | |
| BORE SIZE A | 35 mm |
| KEYWAY A | 10 mm |
| BORE SIZE B | 35 mm |
| KEYWAY B | 10 mm |
| OUTSIDE DIAMETER | 57 mm |
| TOTAL LENGTH | 80 mm |
| RECESSED SCREW | No |
| SCREW SIZE | M6x1 |
| SCREW MATERIAL | Alloy Steel |
| CAPACITIES | |
| SCREW SEATING TORQUE | 8.48 Nm |
| AXIAL HOLD | 6900 N |
| APPLICATION | Ideal for metric industrial automation systems, electric motors, gearboxes, conveyors, packaging and processing equipment, CNC machines, robotics, pumps, compressors, and other metric power transmission |
| BRAND | Stafford Manufacturing |
The 35mm x 35mm Steel (Black Oxide) Metric Three-Piece Clamp Coupling with Keyway is designed to securely connect two aligned metric shafts, allowing them to function as a single unit with zero backlash for precise torque transmission. Its fully metric design, including metric clamp screws, ensures compatibility with metric shafting and equipment. The integrated keyways provide added torque capacity and fixed shaft phasing, while the three-piece clamp design keeps one shaft securely in place as the other is moved or replaced for easy installation and maintenance. Precision-machined from black oxide steel, it features a smooth straight-through bore that protects shaft surfaces from damage, along with a non-marring clamp mechanism and high clamping force for a secure and reliable connection. Stocked In: Steel, Stainless Steel
| SPECIFICATIONS | DETAILS |
| PART NUMBER | 5LM035035TK |
| TYPE | Low Profile |
| DESIGN | Three-piece clamp design ensures accurate shaft alignment and dependable performance. |
| MATERIAL | Steel (Black Oxide) construction provides excellent strength, wear resistance, and durability |
| APPROXIMATE WEIGHT | 1.88 lb |
| SERIES | Signature |
| ALLOY | 1215 |
| FINISH | Black Oxide |
| COUNTRY ORIGIN | USA |
| UPC CODE | 662786042935 |
| ROHS2 COMPLIANT | Yes |
| REACH COMPLIANT | Yes |
| DIMENSIONAL ATTRIBUTES | |
| BORE SIZE A | 35 mm |
| KEYWAY A | 10 mm |
| BORE SIZE B | 35 mm |
| KEYWAY B | 10 mm |
| OUTSIDE DIAMETER | 57 mm |
| TOTAL LENGTH | 80 mm |
| RECESSED SCREW | No |
| SCREW SIZE | M6x1 |
| SCREW MATERIAL | Alloy Steel |
| CAPACITIES | |
| SCREW SEATING TORQUE | 8.48 Nm |
| AXIAL HOLD | 6900 N |
| APPLICATION | Ideal for metric industrial automation systems, electric motors, gearboxes, conveyors, packaging and processing equipment, CNC machines, robotics, pumps, compressors, and other metric power transmission |
| BRAND | Stafford Manufacturing |
SKU:5LM035035TK
35mm x 35mm Steel (Black Oxide) Metric Three Piece Clamp Coupling with Keyway
- Regular price
- $152.66
- Sale price
- $152.66
