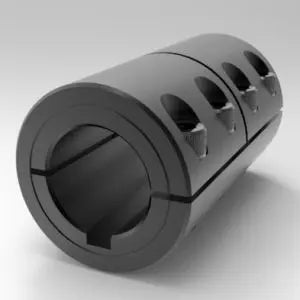

The 30mm x 30mm Steel (Black Oxide) Metric Rigid Shaft Coupling One-Piece Clamp with Keyway is designed to connect two aligned shafts and make them function as one with zero backlash. Its one-piece clamp design provides secure, high-strength clamping, while the standard keyway increases torque capacity and maintains fixed shaft phasing for reliable power transmission. Precision machined with a smooth bore, it allows easy adjustment and helps protect shafts from damage. Made from steel with a black oxide finish, it provides excellent strength, durability, and wear resistance for reliable performance in demanding applications.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 5LM030030K | |
| TYPE | Low Profile | |
| DESIGN |
One-piece clamp design for secure, reliable gripping with simple installation
|
|
| MATERIAL |
Steel (Black Oxide) offers a combination of mechanical strength from the steel and surface protection from the black oxide coating
|
|
| SERIES | Signature | |
| ALLOY | 1215 | |
| FINISH | Black Oxide | |
| APPROXIMATE WEIGHT | 1.91 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786020544 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE SIZE A | 30 mm | |
| KEYWAY A | 8 mm | |
| BORE SIZE B | 30 mm | |
| KEYWAY B | 8 mm | |
| OUTSIDE DIAMETER | 54 mm | |
| TOTAL LENGTH | 75 mm | |
| RECESSED SCREW | No | |
| SCREW SIZE | M6 x 1.0 x 18MM | |
| SCREW MATERIAL | Alloy Steel | |
| CAPACITIES | ||
| SCREW SEATING TORQUE | 8.48 Nm | |
| AXIAL HOLD | 6900 N | |
| APPLICATIONS |
Ideal for automation equipment, conveyors, machinery, motion-control systems, and power transmission applications
|
|
| BRAND | Stafford Manufacturing |
The 30mm x 30mm Steel (Black Oxide) Metric Rigid Shaft Coupling One-Piece Clamp with Keyway is designed to connect two aligned shafts and make them function as one with zero backlash. Its one-piece clamp design provides secure, high-strength clamping, while the standard keyway increases torque capacity and maintains fixed shaft phasing for reliable power transmission. Precision machined with a smooth bore, it allows easy adjustment and helps protect shafts from damage. Made from steel with a black oxide finish, it provides excellent strength, durability, and wear resistance for reliable performance in demanding applications.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 5LM030030K | |
| TYPE | Low Profile | |
| DESIGN |
One-piece clamp design for secure, reliable gripping with simple installation
|
|
| MATERIAL |
Steel (Black Oxide) offers a combination of mechanical strength from the steel and surface protection from the black oxide coating
|
|
| SERIES | Signature | |
| ALLOY | 1215 | |
| FINISH | Black Oxide | |
| APPROXIMATE WEIGHT | 1.91 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786020544 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE SIZE A | 30 mm | |
| KEYWAY A | 8 mm | |
| BORE SIZE B | 30 mm | |
| KEYWAY B | 8 mm | |
| OUTSIDE DIAMETER | 54 mm | |
| TOTAL LENGTH | 75 mm | |
| RECESSED SCREW | No | |
| SCREW SIZE | M6 x 1.0 x 18MM | |
| SCREW MATERIAL | Alloy Steel | |
| CAPACITIES | ||
| SCREW SEATING TORQUE | 8.48 Nm | |
| AXIAL HOLD | 6900 N | |
| APPLICATIONS |
Ideal for automation equipment, conveyors, machinery, motion-control systems, and power transmission applications
|
|
| BRAND | Stafford Manufacturing |
SKU:5LM030030K
30mm x 30mm Steel (Black Oxide) Metric Rigid Shaft Coupling One-Piece Clamp with Keyway
