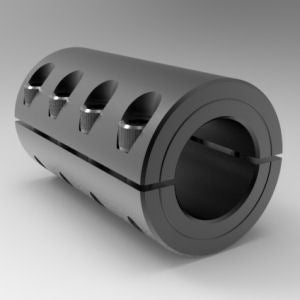

Rigid metric clamp coupling for equal 18mm shafts | 18mm x 18mm Steel (Black Oxide) Metric Rigid Shaft Coupling - Two-Piece Clamp | 5LM018018F
    Rigid metric clamp coupling for equal 18mm shafts | 18mm x 18mm Steel (Black Oxide) Metric Rigid Shaft Coupling - Two-Piece Clamp | 5LM018018F
Rigid metric clamp coupling for equal 18mm shafts | 18mm x 18mm Steel (Black Oxide) Metric Rigid Shaft Coupling - Two-Piece Clamp | 5LM018018F
Rigid metric clamp coupling for equal 18mm shafts | 18mm x 18mm Steel (Black Oxide) Metric Rigid Shaft Coupling - Two-Piece Clamp | 5LM018018F
    Rigid metric clamp coupling for equal 18mm shafts | 18mm x 18mm Steel (Black Oxide) Metric Rigid Shaft Coupling - Two-Piece Clamp | 5LM018018F
Rigid metric clamp coupling for equal 18mm shafts | 18mm x 18mm Steel (Black Oxide) Metric Rigid Shaft Coupling - Two-Piece Clamp | 5LM018018F
Description
    The 18mm x 18mm Steel (Black Oxide) Metric Rigid Shaft Coupling - Two-Piece Clamp is designed to securely connect two aligned 18 mm shafts, providing a rigid, zero-backlash connection for precise torque transmission and accurate rotational synchronization. Manufactured to fully metric specifications, including its clamping screws, this coupling ensures compatibility with metric shafting and equipment. Its two-piece clamp design allows the coupling to be completely separated, enabling quick installation, convenient assembly, and easy shaft adjustment or replacement without disturbing adjacent components. Precision-machined with a smooth straight-through bore, it delivers high clamping force while protecting shaft surfaces from marring or damage, ensuring reliable performance and accurate shaft alignment. Stocked in steel and stainless steel.





    SPECIFICATIONS DETAILS
    PART NUMBER 5LM018018F
    TYPE Low Profile
    DESIGN
    Two-piece clamp design allows the coupling to be completely disassembled, making installation, maintenance, and shaft adjustments quick and convenient
    MATERIAL
    Steel (Black Oxide) offers a combination of mechanical strength from the steel and surface protection from the black oxide coating.
    SERIES Signature
    ALLOY 1215
    FINISH Black Oxide
    APPROXIMATE WEIGHT 0.73 lb
    COUNTRY OF ORIGIN USA
    UPC CODE 662786020940
    ROHS2 COMPLIANT Yes
    REACH COMPLIANT Yes
    TORQUE CAPACITY 60.05 N·m

    DIMENSIONAL ATTRIBUTES
    BORE SIZE A 18 mm
    BORE SIZE B 18 mm
    OUTSIDE DIAMETER 36 mm
    TOTAL LENGTH 60 mm
    RECESSED SCREW No
    SCREW SIZE M5x0.8
    SCREW MATERIAL Alloy Steel

    CAPACITIES
    SCREW SEATING TORQUE 5.0 Nm
    AXIAL HOLD 5430 N

    APPLICATIONS
    Ideal for motion control systems, automation systems, conveyors, machine tools, packaging machinery, and other precision power transmission applications.
