The 1-1/2" x 35mm Steel (Black Oxide) Inch-Metric Conversion Coupling - Two-Piece Clamp is designed to securely connect an inch-sized shaft to a metric-sized shaft, providing a rigid, zero-backlash connection for precise torque transmission and accurate rotational synchronization. Featuring a two-piece clamp design, the coupling can be completely separated for convenient installation, assembly, maintenance, and shaft adjustment. One side is machined with a 1-1/2-inch bore and the other with a 35 mm bore, while the external dimensions and clamping screws are manufactured to inch standards, making it ideal for integrating inch and metric components within the same system. Precision-machined with smooth bores, the coupling delivers high clamping force without marring or damaging shaft surfaces and provides superior torque capacity compared to traditional set-screw couplings. It can also be modified with optional keyways to meet specific application requirements.
| SPECIFICATIONS | DETAILS |
| PART NUMBER | 5L10835MF |
| TYPE | High Strength |
| DESIGN |
Two-piece clamp design, can be completely separated for convenient installation, assembly, maintenance, and shaft adjustment.
|
| MATERIAL |
Steel (Black Oxide) offers excellent mechanical strength, wear resistance, and added corrosion protection for reliable industrial performance
|
| SERIES | Signature |
| ALLOY | 1215 |
| FINISH | Black Oxide |
| APPROXIMATE WEIGHT | 3.37 lb |
| COUNTRY OF ORIGIN | USA |
| UPC CODE | 662786021619 |
| ROHS2 COMPLIANT | Yes |
| REACH COMPLIANT | Yes |
| DIMENSIONAL ATTRIBUTES | |
| BORE SIZE A | 1-1/2 in |
| BORE SIZE B | 35 mm |
| OUTSIDE DIAMETER | 2.500 in |
| TOTAL LENGTH | 3.750 in |
| RECESSED SCREW | Yes |
| SCREW SIZE | 1/4-28 x 3/4 in |
| SCREW MATERIAL | Alloy Steel |
| CAPACITIES | |
| SCREW SEATING TORQUE | 162 in-lb |
| AXIAL HOLD | 2320 lbs |
| TORQUE CAPACITY | 2262 in-lbs |
| APPLICATIONS |
Ideal for automation systems, conveyors, machine tools, packaging equipment, testing machinery, and other precision power transmission applications.
|
| BRAND | Stafford Manufacturing |
The 1-1/2" x 35mm Steel (Black Oxide) Inch-Metric Conversion Coupling - Two-Piece Clamp is designed to securely connect an inch-sized shaft to a metric-sized shaft, providing a rigid, zero-backlash connection for precise torque transmission and accurate rotational synchronization. Featuring a two-piece clamp design, the coupling can be completely separated for convenient installation, assembly, maintenance, and shaft adjustment. One side is machined with a 1-1/2-inch bore and the other with a 35 mm bore, while the external dimensions and clamping screws are manufactured to inch standards, making it ideal for integrating inch and metric components within the same system. Precision-machined with smooth bores, the coupling delivers high clamping force without marring or damaging shaft surfaces and provides superior torque capacity compared to traditional set-screw couplings. It can also be modified with optional keyways to meet specific application requirements.
| SPECIFICATIONS | DETAILS |
| PART NUMBER | 5L10835MF |
| TYPE | High Strength |
| DESIGN |
Two-piece clamp design, can be completely separated for convenient installation, assembly, maintenance, and shaft adjustment.
|
| MATERIAL |
Steel (Black Oxide) offers excellent mechanical strength, wear resistance, and added corrosion protection for reliable industrial performance
|
| SERIES | Signature |
| ALLOY | 1215 |
| FINISH | Black Oxide |
| APPROXIMATE WEIGHT | 3.37 lb |
| COUNTRY OF ORIGIN | USA |
| UPC CODE | 662786021619 |
| ROHS2 COMPLIANT | Yes |
| REACH COMPLIANT | Yes |
| DIMENSIONAL ATTRIBUTES | |
| BORE SIZE A | 1-1/2 in |
| BORE SIZE B | 35 mm |
| OUTSIDE DIAMETER | 2.500 in |
| TOTAL LENGTH | 3.750 in |
| RECESSED SCREW | Yes |
| SCREW SIZE | 1/4-28 x 3/4 in |
| SCREW MATERIAL | Alloy Steel |
| CAPACITIES | |
| SCREW SEATING TORQUE | 162 in-lb |
| AXIAL HOLD | 2320 lbs |
| TORQUE CAPACITY | 2262 in-lbs |
| APPLICATIONS |
Ideal for automation systems, conveyors, machine tools, packaging equipment, testing machinery, and other precision power transmission applications.
|
| BRAND | Stafford Manufacturing |
SKU:5L10835MF

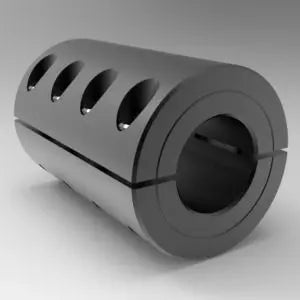

1-1/2" x 35mm Steel (Black Oxide) Inch-Metric Conversion Coupling - Two-Piece Clamp
