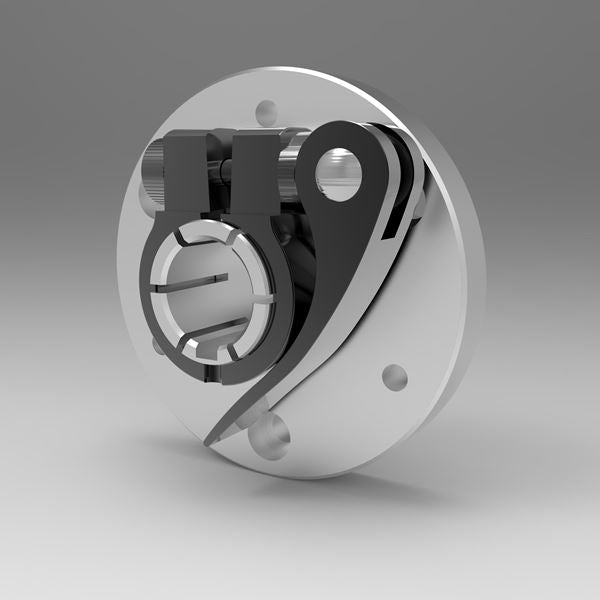

Precision-machined aluminum metric mounting collar with 22mm bore and keyway for Python System assemblies | 22mm Aluminum Metric Python Flange Mounting Collar with Keyway | PYFMAM022K
    Precision-machined aluminum metric mounting collar with 22mm bore and keyway for Python System assemblies | 22mm Aluminum Metric Python Flange Mounting Collar with Keyway | PYFMAM022K
Precision-machined aluminum metric mounting collar with 22mm bore and keyway for Python System assemblies | 22mm Aluminum Metric Python Flange Mounting Collar with Keyway | PYFMAM022K
Precision-machined aluminum metric mounting collar with 22mm bore and keyway for Python System assemblies | 22mm Aluminum Metric Python Flange Mounting Collar with Keyway | PYFMAM022K
    Precision-machined aluminum metric mounting collar with 22mm bore and keyway for Python System assemblies | 22mm Aluminum Metric Python Flange Mounting Collar with Keyway | PYFMAM022K
Precision-machined aluminum metric mounting collar with 22mm bore and keyway for Python System assemblies | 22mm Aluminum Metric Python Flange Mounting Collar with Keyway | PYFMAM022K
Description
The 22mm Aluminum Metric Python Flange Mounting Collar with Keyway is an adjustable flange collar designed for quick, tool-free positioning and secure mounting in linear and rotary applications. Its integrated Flip-Lok™ lever-operated clamp allows easy hand adjustment and repositioning, while the thumbscrew tension nut provides reliable clamping force when engaged. Featuring a 6-hole bolt pattern and keyway, the collar offers flexible mounting options for equipment and components. Manufactured from lightweight, durable aluminum, it supports up to 200 lbs. of axial load and is ideal for use in bagging and packaging machinery, paper handling systems, laboratory equipment, and other industrial applications requiring fast, repeatable adjustments. This product is available in 15 inch sizes from 3/8” to 1-1/4” and 10 metric from 8 mm to 30 mm.





SPECIFICATIONS DETAILS
PART NUMBER PYFMAM022K
TYPE Python
DESIGN
Flip-Lok™ lever-operated clamp allows easy hand adjustment and repositioning
MATERIAL
Aluminum offers a lightweight and durability
UPC CODE 662786045455
ALLOY 2024
FINISH Shiny
COUNTRY OF ORIGIN
USA / Handle Made In China
MAXIMUM AXIAL LOAD 200 lb
CLAMP PART # QC1A104P7
DIMENSIONAL ATTRIBUTES
BORE 13/15 in
22 mm
LEVER HUB O.D. 1.625 in
LEVER RELAXED ACTUAL GAP 0.36 in
KEYWAY WIDTH 0.236 in
FLANGE O.D. 2.717 in
69.01 mm
FLANGE WIDTH 0.445 in
FLANGE BOLT CIRCLE DIA. 2.165 in
FLANGE THREAD M6 X 1
FLANGE C-BORE DIA. 0.438 in
FLANGE C-BORE DEPTH 0.246 in
FLANGE THRU DIA. 0.25 in
COLLAR HUB O.D. 1.255 in
COLLAR RECESS DIA. 0.9911 in
COLLAR BOSS WIDTH 0.335 in
COLLAR BOSS HEIGHT 0.15 in
COLLAR BOSS DEPTH 0.125 in
OVER-ALL WIDTH 1.225 in
31.12 mm



APPLICATIONS
Ideal for bagging and packaging machinery, paper handling equipment, and laboratory instruments.
BRAND Stafford Manufacturing

Description
The 22mm Aluminum Metric Python Flange Mounting Collar with Keyway is an adjustable flange collar designed for quick, tool-free positioning and secure mounting in linear and rotary applications. Its integrated Flip-Lok™ lever-operated clamp allows easy hand adjustment and repositioning, while the thumbscrew tension nut provides reliable clamping force when engaged. Featuring a 6-hole bolt pattern and keyway, the collar offers flexible mounting options for equipment and components. Manufactured from lightweight, durable aluminum, it supports up to 200 lbs. of axial load and is ideal for use in bagging and packaging machinery, paper handling systems, laboratory equipment, and other industrial applications requiring fast, repeatable adjustments. This product is available in 15 inch sizes from 3/8” to 1-1/4” and 10 metric from 8 mm to 30 mm.





SPECIFICATIONS DETAILS
PART NUMBER PYFMAM022K
TYPE Python
DESIGN
Flip-Lok™ lever-operated clamp allows easy hand adjustment and repositioning
MATERIAL
Aluminum offers a lightweight and durability
UPC CODE 662786045455
ALLOY 2024
FINISH Shiny
COUNTRY OF ORIGIN
USA / Handle Made In China
MAXIMUM AXIAL LOAD 200 lb
CLAMP PART # QC1A104P7
DIMENSIONAL ATTRIBUTES
BORE 13/15 in
22 mm
LEVER HUB O.D. 1.625 in
LEVER RELAXED ACTUAL GAP 0.36 in
KEYWAY WIDTH 0.236 in
FLANGE O.D. 2.717 in
69.01 mm
FLANGE WIDTH 0.445 in
FLANGE BOLT CIRCLE DIA. 2.165 in
FLANGE THREAD M6 X 1
FLANGE C-BORE DIA. 0.438 in
FLANGE C-BORE DEPTH 0.246 in
FLANGE THRU DIA. 0.25 in
COLLAR HUB O.D. 1.255 in
COLLAR RECESS DIA. 0.9911 in
COLLAR BOSS WIDTH 0.335 in
COLLAR BOSS HEIGHT 0.15 in
COLLAR BOSS DEPTH 0.125 in
OVER-ALL WIDTH 1.225 in
31.12 mm



APPLICATIONS
Ideal for bagging and packaging machinery, paper handling equipment, and laboratory instruments.
BRAND Stafford Manufacturing

Stafford Manufacturing by Stafford Manufacturing

PYFMAM022K

22mm Aluminum Metric Python Flange Mounting Collar with Keyway

$81.34
