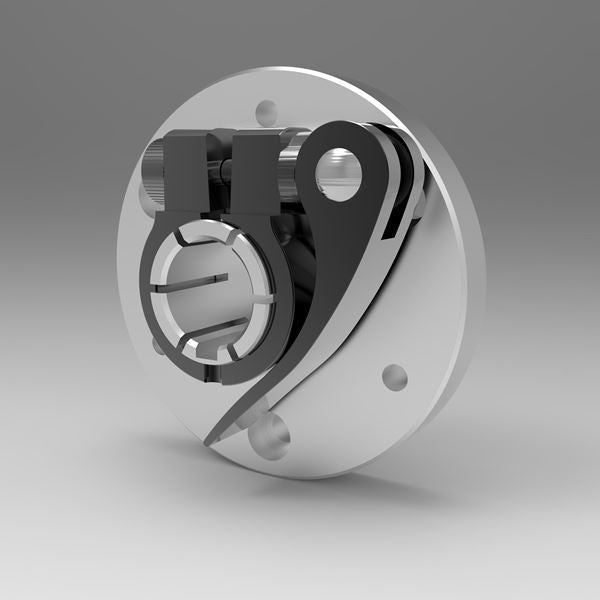

Precision-machined aluminum metric mounting collar with 16mm bore and keyway for Python System assemblies | 16mm Aluminum Metric Python Flange Mounting Collar with Keyway | PYFMAM016K
    Precision-machined aluminum metric mounting collar with 16mm bore and keyway for Python System assemblies | 16mm Aluminum Metric Python Flange Mounting Collar with Keyway | PYFMAM016K
Precision-machined aluminum metric mounting collar with 16mm bore and keyway for Python System assemblies | 16mm Aluminum Metric Python Flange Mounting Collar with Keyway | PYFMAM016K
Precision-machined aluminum metric mounting collar with 16mm bore and keyway for Python System assemblies | 16mm Aluminum Metric Python Flange Mounting Collar with Keyway | PYFMAM016K
    Precision-machined aluminum metric mounting collar with 16mm bore and keyway for Python System assemblies | 16mm Aluminum Metric Python Flange Mounting Collar with Keyway | PYFMAM016K
Precision-machined aluminum metric mounting collar with 16mm bore and keyway for Python System assemblies | 16mm Aluminum Metric Python Flange Mounting Collar with Keyway | PYFMAM016K
Description
The 16mm Aluminum Metric Python Flange Mounting Collar with Keyway is an adjustable flange collar designed for quick, tool-free positioning and secure mounting in linear and rotary applications. Its integrated Flip-Lok™ lever-operated clamp allows easy hand adjustment and repositioning, while the thumbscrew tension nut provides reliable clamping force when engaged. Featuring a 6-hole bolt pattern and keyway, the collar offers flexible mounting options for equipment and components. Manufactured from lightweight, durable aluminum, it supports up to 200 lbs. of axial load and is ideal for use in bagging and packaging machinery, paper handling systems, laboratory equipment, and other industrial applications requiring fast, repeatable adjustments. This product is available in 15 inch sizes from 3/8” to 1-1/4” and 10 metric from 8 mm to 30 mm.





SPECIFICATIONS DETAILS
PART NUMBER PYFMAM016K
TYPE Python
DESIGN
Flip-Lok™ lever-operated clamp allows easy hand adjustment and repositioning
MATERIAL
Aluminum offers a lightweight and durability
UPC CODE 662786045424
ALLOY 2024
FINISH Shiny
COUNTRY OF ORIGIN
USA / Handle Made In China
MAXIMUM AXIAL LOAD 200 lb
CLAMP PART # QC1A100P7
DIMENSIONAL ATTRIBUTES
BORE 5/8 in
16 mm
LEVER HUB O.D. 1.375 in
LEVER RELAXED ACTUAL GAP 0.29 in
KEYWAY WIDTH 0.197 in
FLANGE O.D. 2.48 in
62.99 mm
FLANGE WIDTH 0.35 in
FLANGE BOLT CIRCLE DIA. 1.93 in
FLANGE THREAD M5 X 0.8
FLANGE C-BORE DIA. 0.375 in
FLANGE C-BORE DEPTH 0.206 in
FLANGE THRU DIA. 0.213 in
COLLAR HUB O.D. 1.005 in
COLLAR RECESS DIA. 0.7549 in
COLLAR BOSS WIDTH 0.265 in
COLLAR BOSS HEIGHT 0.15 in
COLLAR BOSS DEPTH 0.125 in
OVER-ALL WIDTH 1.13 in
28.70 mm



APPLICATIONS
Ideal for bagging and packaging machinery, paper handling equipment, and laboratory instruments.
BRAND Stafford Manufacturing

Description
The 16mm Aluminum Metric Python Flange Mounting Collar with Keyway is an adjustable flange collar designed for quick, tool-free positioning and secure mounting in linear and rotary applications. Its integrated Flip-Lok™ lever-operated clamp allows easy hand adjustment and repositioning, while the thumbscrew tension nut provides reliable clamping force when engaged. Featuring a 6-hole bolt pattern and keyway, the collar offers flexible mounting options for equipment and components. Manufactured from lightweight, durable aluminum, it supports up to 200 lbs. of axial load and is ideal for use in bagging and packaging machinery, paper handling systems, laboratory equipment, and other industrial applications requiring fast, repeatable adjustments. This product is available in 15 inch sizes from 3/8” to 1-1/4” and 10 metric from 8 mm to 30 mm.





SPECIFICATIONS DETAILS
PART NUMBER PYFMAM016K
TYPE Python
DESIGN
Flip-Lok™ lever-operated clamp allows easy hand adjustment and repositioning
MATERIAL
Aluminum offers a lightweight and durability
UPC CODE 662786045424
ALLOY 2024
FINISH Shiny
COUNTRY OF ORIGIN
USA / Handle Made In China
MAXIMUM AXIAL LOAD 200 lb
CLAMP PART # QC1A100P7
DIMENSIONAL ATTRIBUTES
BORE 5/8 in
16 mm
LEVER HUB O.D. 1.375 in
LEVER RELAXED ACTUAL GAP 0.29 in
KEYWAY WIDTH 0.197 in
FLANGE O.D. 2.48 in
62.99 mm
FLANGE WIDTH 0.35 in
FLANGE BOLT CIRCLE DIA. 1.93 in
FLANGE THREAD M5 X 0.8
FLANGE C-BORE DIA. 0.375 in
FLANGE C-BORE DEPTH 0.206 in
FLANGE THRU DIA. 0.213 in
COLLAR HUB O.D. 1.005 in
COLLAR RECESS DIA. 0.7549 in
COLLAR BOSS WIDTH 0.265 in
COLLAR BOSS HEIGHT 0.15 in
COLLAR BOSS DEPTH 0.125 in
OVER-ALL WIDTH 1.13 in
28.70 mm



APPLICATIONS
Ideal for bagging and packaging machinery, paper handling equipment, and laboratory instruments.
BRAND Stafford Manufacturing

Stafford Manufacturing by Stafford Manufacturing

PYFMAM016K

16mm Aluminum Metric Python Flange Mounting Collar with Keyway

$73.55
$73.55
Shipping calculated at checkout.
