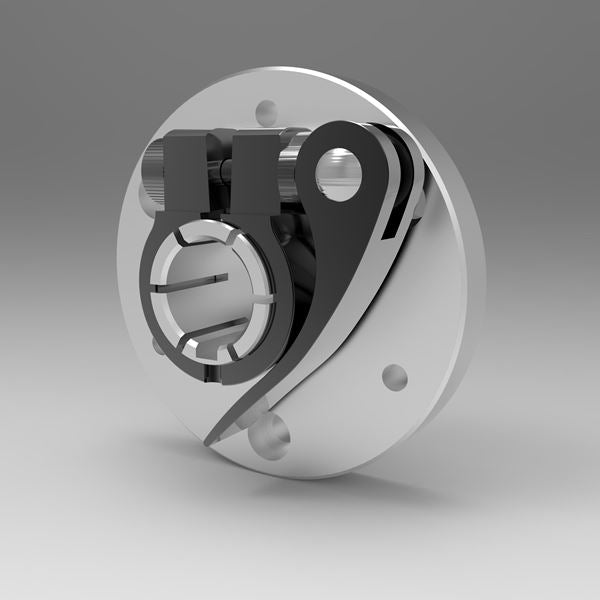

The 12mm Aluminum Metric Python Flange Mounting Collar with Keyway is an adjustable flange collar designed for quick, tool-free positioning and secure mounting in linear and rotary applications. Its integrated Flip-Lok™ lever-operated clamp allows easy hand adjustment and repositioning, while the thumbscrew tension nut provides reliable clamping force when engaged. Featuring a 6-hole bolt pattern and keyway, the collar offers flexible mounting options for equipment and components. Manufactured from lightweight, durable aluminum, it supports up to 200 lbs. of axial load and is ideal for use in bagging and packaging machinery, paper handling systems, laboratory equipment, and other industrial applications requiring fast, repeatable adjustments. This product is available in 15 inch sizes from 3/8” to 1-1/4” and 10 metric from 8 mm to 30 mm.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | PYFMAM012K | |
| TYPE | Python | |
| DESIGN |
Flip-Lok™ lever-operated clamp allows easy hand adjustment and repositioning
|
|
| MATERIAL |
Aluminum offers a lightweight and durability
|
|
| UPC CODE | 662786045400 | |
| ALLOY | 2024 | |
| FINISH | Shiny | |
| COUNTRY OF ORIGIN |
USA / Handle Made In China
|
|
| MAXIMUM AXIAL LOAD | 200 lb | |
| CLAMP PART # | QC1A012P7 | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE |
15/32 in 12 mm |
|
| LEVER HUB O.D. | 1.1 in | |
| LEVER RELAXED ACTUAL GAP | 0.275 in | |
| KEYWAY WIDTH | 0.157 in | |
| FLANGE O.D. |
2.165 in 54.99 mm |
|
| FLANGE WIDTH | 0.3 in | |
| FLANGE BOLT CIRCLE DIA. | 1.654 in | |
| FLANGE THREAD | M4 X 0.7 | |
| FLANGE C-BORE DIA. | 0.313 in | |
| FLANGE C-BORE DEPTH | 0.167 in | |
| FLANGE THRU DIA. | 0.173 in | |
| COLLAR HUB O.D. | 0.755 in | |
| COLLAR RECESS DIA. | 0.5974 in | |
| COLLAR BOSS WIDTH | 0.250 in | |
| COLLAR BOSS HEIGHT | 0.15 in | |
| COLLAR BOSS DEPTH | 0.125 in | |
| OVER-ALL WIDTH |
1.08 in 27.43 mm |
|
| APPLICATIONS |
Ideal for bagging and packaging machinery, paper handling equipment, and laboratory instruments.
|
|
| BRAND | Stafford Manufacturing |
The 12mm Aluminum Metric Python Flange Mounting Collar with Keyway is an adjustable flange collar designed for quick, tool-free positioning and secure mounting in linear and rotary applications. Its integrated Flip-Lok™ lever-operated clamp allows easy hand adjustment and repositioning, while the thumbscrew tension nut provides reliable clamping force when engaged. Featuring a 6-hole bolt pattern and keyway, the collar offers flexible mounting options for equipment and components. Manufactured from lightweight, durable aluminum, it supports up to 200 lbs. of axial load and is ideal for use in bagging and packaging machinery, paper handling systems, laboratory equipment, and other industrial applications requiring fast, repeatable adjustments. This product is available in 15 inch sizes from 3/8” to 1-1/4” and 10 metric from 8 mm to 30 mm.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | PYFMAM012K | |
| TYPE | Python | |
| DESIGN |
Flip-Lok™ lever-operated clamp allows easy hand adjustment and repositioning
|
|
| MATERIAL |
Aluminum offers a lightweight and durability
|
|
| UPC CODE | 662786045400 | |
| ALLOY | 2024 | |
| FINISH | Shiny | |
| COUNTRY OF ORIGIN |
USA / Handle Made In China
|
|
| MAXIMUM AXIAL LOAD | 200 lb | |
| CLAMP PART # | QC1A012P7 | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE |
15/32 in 12 mm |
|
| LEVER HUB O.D. | 1.1 in | |
| LEVER RELAXED ACTUAL GAP | 0.275 in | |
| KEYWAY WIDTH | 0.157 in | |
| FLANGE O.D. |
2.165 in 54.99 mm |
|
| FLANGE WIDTH | 0.3 in | |
| FLANGE BOLT CIRCLE DIA. | 1.654 in | |
| FLANGE THREAD | M4 X 0.7 | |
| FLANGE C-BORE DIA. | 0.313 in | |
| FLANGE C-BORE DEPTH | 0.167 in | |
| FLANGE THRU DIA. | 0.173 in | |
| COLLAR HUB O.D. | 0.755 in | |
| COLLAR RECESS DIA. | 0.5974 in | |
| COLLAR BOSS WIDTH | 0.250 in | |
| COLLAR BOSS HEIGHT | 0.15 in | |
| COLLAR BOSS DEPTH | 0.125 in | |
| OVER-ALL WIDTH |
1.08 in 27.43 mm |
|
| APPLICATIONS |
Ideal for bagging and packaging machinery, paper handling equipment, and laboratory instruments.
|
|
| BRAND | Stafford Manufacturing |
SKU:PYFMAM012K
12mm Aluminum Metric Python Flange Mounting Collar with Keyway
- Regular price
- $63.53
- Sale price
- $63.53
