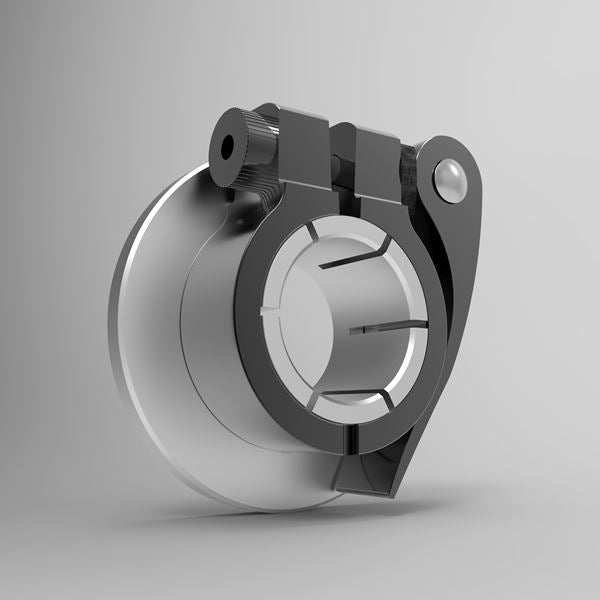

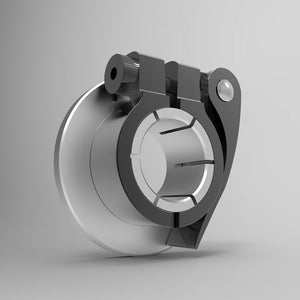

Lightweight aluminum metric flange collar designed for 30mm Python System applications | 30mm Aluminum Metric Python Flange Collar | PYFAM030
    Lightweight aluminum metric flange collar designed for 30mm Python System applications | 30mm Aluminum Metric Python Flange Collar | PYFAM030
Lightweight aluminum metric flange collar designed for 30mm Python System applications | 30mm Aluminum Metric Python Flange Collar | PYFAM030
Lightweight aluminum metric flange collar designed for 30mm Python System applications | 30mm Aluminum Metric Python Flange Collar | PYFAM030
    Lightweight aluminum metric flange collar designed for 30mm Python System applications | 30mm Aluminum Metric Python Flange Collar | PYFAM030
Lightweight aluminum metric flange collar designed for 30mm Python System applications | 30mm Aluminum Metric Python Flange Collar | PYFAM030
Description
The 30mm Aluminum Metric Python Flange Collar is a split hub collar designed with an integral Flip-Lok™ lever-operated clamp, allowing quick, one-handed adjustments without the need for wrenches. Its thumbscrew tension nut provides secure, repeatable clamping, making it ideal for rapidly setting stops in linear and rotary applications. Manufactured from lightweight, corrosion-resistant aluminum, the collar is capable of handling up to 200 lbs. of axial load, delivering reliable performance while remaining easy to operate. Common applications include bagging and packaging machinery, paper handling equipment, laboratory instruments, and other systems requiring fast, tool-free positioning and adjustment. This product is available in 15 inch sizes from 3/8” to 1-1/4” and 10 metric from 8 mm to 30 mm.





SPECIFICATIONS DETAILS
PART NUMBER PYFAM030
TYPE Python
DESIGN
Flip-Lok™ lever-operated clamp, allowing quick, one-handed adjustments without the need for wrenches
MATERIAL
Aluminum offers a lightweight construction which helps reduce overall system weight while maintaining dependable holding power
UPC CODE 662786045370
ALLOY 2024
FINISH Shiny
COUNTRY OF ORIGIN
USA / Handle Made In China
MAXIMUM AXIAL LOAD 200 lb
CLAMP PART # QC1A108P7
DIMENSIONAL ATTRIBUTES
BORE 30 mm
LEVER HUB O.D. 1.875 in
47.63 mm
LEVER RELAXED ACTUAL GAP 0.31 in
7.87 mm
FLANGE O.D. 2.875 in
73.03 mm
FLANGE WIDTH 1/4 in
6.35 mm
COLLAR HUB O.D. 1.505 in
38.23 mm
COLLAR RECESS DIA. 1.306 in
33.17 mm
COLLAR BOSS WIDTH 0.285 in
7.24 mm
COLLAR BOSS HEIGHT 0.15 in
3.81 mm
COLLAR BOSS DEPTH 0.125 in
3.18 mm
OVER-ALL WIDTH 1.03 in
26.16 mm



APPLICATIONS
Ideal for bagging and packaging machinery, paper handling equipment, and laboratory instruments.
BRAND Stafford Manufacturing

Description
The 30mm Aluminum Metric Python Flange Collar is a split hub collar designed with an integral Flip-Lok™ lever-operated clamp, allowing quick, one-handed adjustments without the need for wrenches. Its thumbscrew tension nut provides secure, repeatable clamping, making it ideal for rapidly setting stops in linear and rotary applications. Manufactured from lightweight, corrosion-resistant aluminum, the collar is capable of handling up to 200 lbs. of axial load, delivering reliable performance while remaining easy to operate. Common applications include bagging and packaging machinery, paper handling equipment, laboratory instruments, and other systems requiring fast, tool-free positioning and adjustment. This product is available in 15 inch sizes from 3/8” to 1-1/4” and 10 metric from 8 mm to 30 mm.





SPECIFICATIONS DETAILS
PART NUMBER PYFAM030
TYPE Python
DESIGN
Flip-Lok™ lever-operated clamp, allowing quick, one-handed adjustments without the need for wrenches
MATERIAL
Aluminum offers a lightweight construction which helps reduce overall system weight while maintaining dependable holding power
UPC CODE 662786045370
ALLOY 2024
FINISH Shiny
COUNTRY OF ORIGIN
USA / Handle Made In China
MAXIMUM AXIAL LOAD 200 lb
CLAMP PART # QC1A108P7
DIMENSIONAL ATTRIBUTES
BORE 30 mm
LEVER HUB O.D. 1.875 in
47.63 mm
LEVER RELAXED ACTUAL GAP 0.31 in
7.87 mm
FLANGE O.D. 2.875 in
73.03 mm
FLANGE WIDTH 1/4 in
6.35 mm
COLLAR HUB O.D. 1.505 in
38.23 mm
COLLAR RECESS DIA. 1.306 in
33.17 mm
COLLAR BOSS WIDTH 0.285 in
7.24 mm
COLLAR BOSS HEIGHT 0.15 in
3.81 mm
COLLAR BOSS DEPTH 0.125 in
3.18 mm
OVER-ALL WIDTH 1.03 in
26.16 mm



APPLICATIONS
Ideal for bagging and packaging machinery, paper handling equipment, and laboratory instruments.
BRAND Stafford Manufacturing

Stafford Manufacturing by Stafford Manufacturing

PYFAM030

30mm Aluminum Metric Python Flange Collar

$65.17
$65.17
Shipping calculated at checkout.
