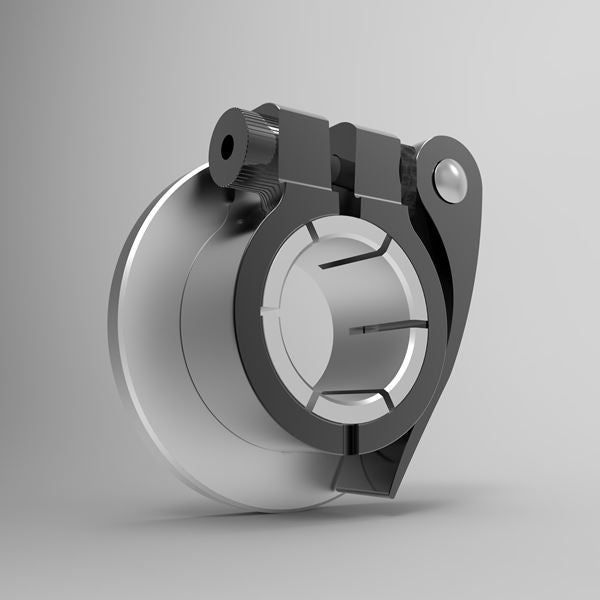

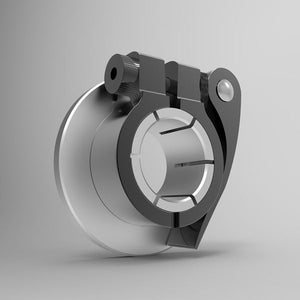

Lightweight aluminum metric flange collar designed for 22mm Python System applications | 22mm Aluminum Metric Python Flange Collar | PYFAM022
    Lightweight aluminum metric flange collar designed for 22mm Python System applications | 22mm Aluminum Metric Python Flange Collar | PYFAM022
Lightweight aluminum metric flange collar designed for 22mm Python System applications | 22mm Aluminum Metric Python Flange Collar | PYFAM022
Lightweight aluminum metric flange collar designed for 22mm Python System applications | 22mm Aluminum Metric Python Flange Collar | PYFAM022
    Lightweight aluminum metric flange collar designed for 22mm Python System applications | 22mm Aluminum Metric Python Flange Collar | PYFAM022
Lightweight aluminum metric flange collar designed for 22mm Python System applications | 22mm Aluminum Metric Python Flange Collar | PYFAM022
Description
The 22mm Aluminum Metric Python Flange Collar is a split hub collar designed with an integral Flip-Lok™ lever-operated clamp, allowing quick, one-handed adjustments without the need for wrenches. Its thumbscrew tension nut provides secure, repeatable clamping, making it ideal for rapidly setting stops in linear and rotary applications. Manufactured from lightweight, corrosion-resistant aluminum, the collar is capable of handling up to 200 lbs. of axial load, delivering reliable performance while remaining easy to operate. Common applications include bagging and packaging machinery, paper handling equipment, laboratory instruments, and other systems requiring fast, tool-free positioning and adjustment. This product is available in 15 inch sizes from 3/8” to 1-1/4” and 10 metric from 8 mm to 30 mm.





SPECIFICATIONS DETAILS
PART NUMBER PYFAM022
TYPE Python
DESIGN
Flip-Lok™ lever-operated clamp, allowing quick, one-handed adjustments without the need for wrenches
MATERIAL
Aluminum offers a lightweight construction which helps reduce overall system weight while maintaining dependable holding power
UPC CODE 662786045356
ALLOY 2024
FINISH Shiny
COUNTRY OF ORIGIN
USA / Handle Made In China
MAXIMUM AXIAL LOAD 200 lb
CLAMP PART # QC1A104P7
DIMENSIONAL ATTRIBUTES
BORE 22 mm
LEVER HUB O.D. 1.625 in
41.28 mm
LEVER RELAXED ACTUAL GAP 0.36 in
9.14 mm
FLANGE O.D. 2.625 in
66.68 mm
FLANGE WIDTH 1/4 in
6.35 mm
COLLAR HUB O.D. 1.255 in
31.88 mm
COLLAR RECESS DIA. 0.991 in
25.17 mm
COLLAR BOSS WIDTH 0.335 in
8.51 mm
COLLAR BOSS HEIGHT 0.15 in
3.81 mm
COLLAR BOSS DEPTH 0.125 in
3.18 mm
OVER-ALL WIDTH 1.03 in
26.16 mm



APPLICATIONS
Ideal for bagging and packaging machinery, paper handling equipment, and laboratory instruments.
BRAND Stafford Manufacturing

Description
The 22mm Aluminum Metric Python Flange Collar is a split hub collar designed with an integral Flip-Lok™ lever-operated clamp, allowing quick, one-handed adjustments without the need for wrenches. Its thumbscrew tension nut provides secure, repeatable clamping, making it ideal for rapidly setting stops in linear and rotary applications. Manufactured from lightweight, corrosion-resistant aluminum, the collar is capable of handling up to 200 lbs. of axial load, delivering reliable performance while remaining easy to operate. Common applications include bagging and packaging machinery, paper handling equipment, laboratory instruments, and other systems requiring fast, tool-free positioning and adjustment. This product is available in 15 inch sizes from 3/8” to 1-1/4” and 10 metric from 8 mm to 30 mm.





SPECIFICATIONS DETAILS
PART NUMBER PYFAM022
TYPE Python
DESIGN
Flip-Lok™ lever-operated clamp, allowing quick, one-handed adjustments without the need for wrenches
MATERIAL
Aluminum offers a lightweight construction which helps reduce overall system weight while maintaining dependable holding power
UPC CODE 662786045356
ALLOY 2024
FINISH Shiny
COUNTRY OF ORIGIN
USA / Handle Made In China
MAXIMUM AXIAL LOAD 200 lb
CLAMP PART # QC1A104P7
DIMENSIONAL ATTRIBUTES
BORE 22 mm
LEVER HUB O.D. 1.625 in
41.28 mm
LEVER RELAXED ACTUAL GAP 0.36 in
9.14 mm
FLANGE O.D. 2.625 in
66.68 mm
FLANGE WIDTH 1/4 in
6.35 mm
COLLAR HUB O.D. 1.255 in
31.88 mm
COLLAR RECESS DIA. 0.991 in
25.17 mm
COLLAR BOSS WIDTH 0.335 in
8.51 mm
COLLAR BOSS HEIGHT 0.15 in
3.81 mm
COLLAR BOSS DEPTH 0.125 in
3.18 mm
OVER-ALL WIDTH 1.03 in
26.16 mm



APPLICATIONS
Ideal for bagging and packaging machinery, paper handling equipment, and laboratory instruments.
BRAND Stafford Manufacturing

Stafford Manufacturing by Stafford Manufacturing

PYFAM022

22mm Aluminum Metric Python Flange Collar

$57.41
$57.41
Shipping calculated at checkout.
