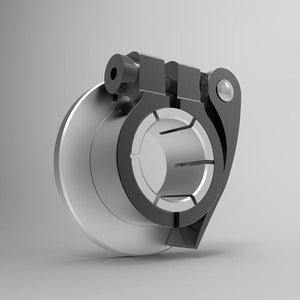

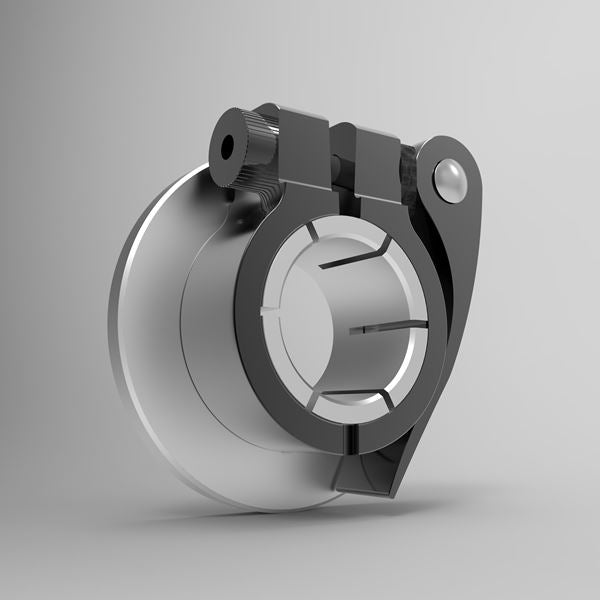

The 14mm Aluminum Metric Python Flange Collar is a split hub collar designed with an integral Flip-Lok™ lever-operated clamp, allowing quick, one-handed adjustments without the need for wrenches. Its thumbscrew tension nut provides secure, repeatable clamping, making it ideal for rapidly setting stops in linear and rotary applications. Manufactured from lightweight, corrosion-resistant aluminum, the collar is capable of handling up to 200 lbs. of axial load, delivering reliable performance while remaining easy to operate. Common applications include bagging and packaging machinery, paper handling equipment, laboratory instruments, and other systems requiring fast, tool-free positioning and adjustment. This product is available in 15 inch sizes from 3/8” to 1-1/4” and 10 metric from 8 mm to 30 mm.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | PYFAM014 | |
| TYPE | Python | |
| DESIGN |
Flip-Lok™ lever-operated clamp, allowing quick, one-handed adjustments without the need for wrenches
|
|
| MATERIAL |
Aluminum offers a lightweight construction which helps reduce overall system weight while maintaining dependable holding power
|
|
| UPC CODE | 662786045318 | |
| ALLOY | 2024 | |
| FINISH | Shiny | |
| COUNTRY OF ORIGIN |
USA / Handle Made In China
|
|
| MAXIMUM AXIAL LOAD | 200 lb | |
| CLAMP PART # | QC1A014P7 | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE | 14 mm | |
| LEVER HUB O.D. |
1.2 in 30.48 mm |
|
| LEVER RELAXED ACTUAL GAP |
0.25 in 6.35 mm |
|
| FLANGE O.D. |
2.2 in 55.88 mm |
|
| FLANGE WIDTH |
1/4 in 6.35 mm |
|
| COLLAR HUB O.D. |
0.875 in 22.23 mm |
|
| COLLAR RECESS DIA. |
0.676 in 17.17 mm |
|
| COLLAR BOSS WIDTH |
0.250 in 6.35 mm |
|
| COLLAR BOSS HEIGHT |
0.15 in 3.81 mm |
|
| COLLAR BOSS DEPTH |
0.125 in 3.18 mm |
|
| OVER-ALL WIDTH |
1.03 in 26.16 mm |
|
| APPLICATIONS |
Ideal for bagging and packaging machinery, paper handling equipment, and laboratory instruments.
|
|
| BRAND | Stafford Manufacturing |
The 14mm Aluminum Metric Python Flange Collar is a split hub collar designed with an integral Flip-Lok™ lever-operated clamp, allowing quick, one-handed adjustments without the need for wrenches. Its thumbscrew tension nut provides secure, repeatable clamping, making it ideal for rapidly setting stops in linear and rotary applications. Manufactured from lightweight, corrosion-resistant aluminum, the collar is capable of handling up to 200 lbs. of axial load, delivering reliable performance while remaining easy to operate. Common applications include bagging and packaging machinery, paper handling equipment, laboratory instruments, and other systems requiring fast, tool-free positioning and adjustment. This product is available in 15 inch sizes from 3/8” to 1-1/4” and 10 metric from 8 mm to 30 mm.
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | PYFAM014 | |
| TYPE | Python | |
| DESIGN |
Flip-Lok™ lever-operated clamp, allowing quick, one-handed adjustments without the need for wrenches
|
|
| MATERIAL |
Aluminum offers a lightweight construction which helps reduce overall system weight while maintaining dependable holding power
|
|
| UPC CODE | 662786045318 | |
| ALLOY | 2024 | |
| FINISH | Shiny | |
| COUNTRY OF ORIGIN |
USA / Handle Made In China
|
|
| MAXIMUM AXIAL LOAD | 200 lb | |
| CLAMP PART # | QC1A014P7 | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE | 14 mm | |
| LEVER HUB O.D. |
1.2 in 30.48 mm |
|
| LEVER RELAXED ACTUAL GAP |
0.25 in 6.35 mm |
|
| FLANGE O.D. |
2.2 in 55.88 mm |
|
| FLANGE WIDTH |
1/4 in 6.35 mm |
|
| COLLAR HUB O.D. |
0.875 in 22.23 mm |
|
| COLLAR RECESS DIA. |
0.676 in 17.17 mm |
|
| COLLAR BOSS WIDTH |
0.250 in 6.35 mm |
|
| COLLAR BOSS HEIGHT |
0.15 in 3.81 mm |
|
| COLLAR BOSS DEPTH |
0.125 in 3.18 mm |
|
| OVER-ALL WIDTH |
1.03 in 26.16 mm |
|
| APPLICATIONS |
Ideal for bagging and packaging machinery, paper handling equipment, and laboratory instruments.
|
|
| BRAND | Stafford Manufacturing |
SKU:PYFAM014
14mm Aluminum Metric Python Flange Collar
- Regular price
- $54.78
- Sale price
- $54.78
