| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 1LM016AFXK | |
| DESIGN |
Integral double-split clamp with a relief groove for secure, adjustable clamping
|
|
| MATERIAL |
Steel (Black Oxide) offers a strong, corrosion-resistant surface while providing the rigidity required for demanding shaft-mounted assemblies
|
|
| SERIES | Solution | |
| ALLOY | 1117 | |
| FINISH | Black Oxide | |
| APPROXIMATE WEIGHT | 0.47 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786021787 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE SIZE | 16 mm | |
| KEYWAY | 5 mm | |
| FLANGE OD | 63 mm | |
| WIDTH | 20 mm | |
| FLANGE WIDTH | 6.85 mm | |
| SCREW SIZE | M5 x .8 x 16MM | |
| SCREW MATERIAL | Alloy Steel | |
| MOUNTING HOLE A | 5.4 mm | |
| MOUNTING HOLE B | M5 | |
| CAPACITIES | ||
| SCREW SEATING TORQUE | 4.98 Nm | |
| AXIAL HOLD | 3390 N | |
| APPLICATIONS |
Ideal for machinery, automation equipment, conveyor systems, robotics, and motion-control assemblies
|
|
| BRAND | Stafford Manufacturing |
| SPECIFICATIONS | DETAILS | |
| PART NUMBER | 1LM016AFXK | |
| DESIGN |
Integral double-split clamp with a relief groove for secure, adjustable clamping
|
|
| MATERIAL |
Steel (Black Oxide) offers a strong, corrosion-resistant surface while providing the rigidity required for demanding shaft-mounted assemblies
|
|
| SERIES | Solution | |
| ALLOY | 1117 | |
| FINISH | Black Oxide | |
| APPROXIMATE WEIGHT | 0.47 lb | |
| COUNTRY OF ORIGIN | USA | |
| UPC CODE | 662786021787 | |
| ROHS2 COMPLIANT | Yes | |
| REACH COMPLIANT | Yes | |
| DIMENSIONAL ATTRIBUTES | ||
| BORE SIZE | 16 mm | |
| KEYWAY | 5 mm | |
| FLANGE OD | 63 mm | |
| WIDTH | 20 mm | |
| FLANGE WIDTH | 6.85 mm | |
| SCREW SIZE | M5 x .8 x 16MM | |
| SCREW MATERIAL | Alloy Steel | |
| MOUNTING HOLE A | 5.4 mm | |
| MOUNTING HOLE B | M5 | |
| CAPACITIES | ||
| SCREW SEATING TORQUE | 4.98 Nm | |
| AXIAL HOLD | 3390 N | |
| APPLICATIONS |
Ideal for machinery, automation equipment, conveyor systems, robotics, and motion-control assemblies
|
|
| BRAND | Stafford Manufacturing |
SKU:1LM016AFXK

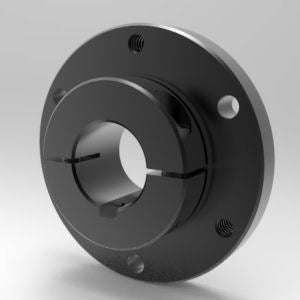

16mm Steel (Black Oxide) Accu-Flange™ Metric Shaft Mounting Collar
- Regular price
- $79.72
- Sale price
- $79.72
- Regular price
-
Couldn't load pickup availability
