Description

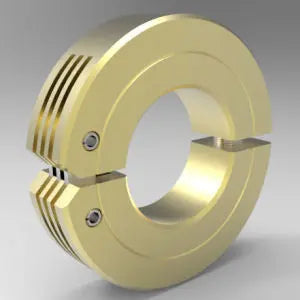

The 1/2" Brass Hinged Shaft Collar is designed for fast and secure shaft positioning on standard round shafts, thin-wall tubing, and split hub applications. Precision-machined from C360 brass, it features a triple-link hinge and captive screw design that allows easy assembly, repositioning, and removal without loose screws. The smooth bore protects shaft surfaces from damage while providing reliable axial holding power comparable to conventional clamp collars. Stocked In: Steel, Stainless Steel

SPECIFICATIONS DETAILS
PART NUMBER 2BR008H
TYPE High Strength
DESIGN Two-piece collar with the simplicity of a one-piece design, allowing quick installation
MATERIAL Brass - It provides excellent corrosion resistance, good machinability, and reliable durability
APPROXIMATE WEIGHT 0.09 lb
SERIES Signature
ALLOY C360
FINISH Shiny
COUNTRY ORIGIN USA
UPC CODE 662786037061
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes
DIMENSIONAL ATTRIBUTES
BORE SIZE 1/2 in
OUTSIDE DIAMETER 1.250 in
WIDTH 0.375 in
RECESSED SCREW Yes
SCREW SIZE 8-32 x 1/2 in
SCREW MATERIAL 18-8 Stainless Steel


APPLICATIONS Ideal for Automation Equipment, Robotics, Conveyors, Machinery, Linear Motion Systems
BRAND Stafford Manufacturing



Stafford Hinged Shaft Collar Video
