Description

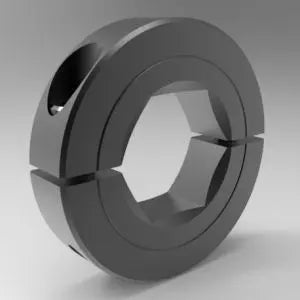

The 7/16" Steel (Black Oxide) Hexagonal Bore Shaft Collar - Two-Piece Clamp is designed for secure positioning on standard hexagonal shafts. Precision-machined from black oxide steel, it offers strength, wear resistance, and corrosion protection while delivering superior holding power over set-screw type collars. The two-piece clamp design can be completely disassembled and placed anywhere along the shaft for convenient installation and adjustment. Its smooth bore protects shaft surfaces from damage, while the high clamping force provides secure, non-marring shaft retention. Available in both steel and stainless steel options.




SPECIFICATIONS DETAILS
PART NUMBER 13L007
TYPE High Strength
DESIGN
Two-piece clamp design allows installation without shaft-end access
MATERIAL
Steel (Black Oxide) offers strength, wear resistance, and corrosion protection
SERIES Signature
ALLOY 1215
FINISH Black Oxide
APPROXIMATE WEIGHT 0.09 lb
COUNTRY OF ORIGIN USA
UPC CODE 662786014253
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes

DIMENSIONAL ATTRIBUTES
HEX BORE SIZE 7/16 in
OUTSIDE DIAMETER 1.250 in
WIDTH 0.375 in
RECESSED SCREW Yes
SCREW SIZE 8-32 x 1/2 in
SCREW MATERIAL Alloy Steel
CAPACITIES
SCREW SEATING TORQUE 22 in-lb
AXIAL HOLD 195 lbs

APPLICATIONS
Ideal for industrial machinery, hexagonal shaft applications, conveyors, motors, gearboxes, robotics, and custom mounting applications.
BRAND Stafford Manufacturing


Shaft Collar Basics Video


Description
The 7/16" Steel (Black Oxide) Hexagonal Bore Shaft Collar - Two-Piece Clamp is designed for secure positioning on standard hexagonal shafts. Precision-machined from black oxide steel, it offers strength, wear resistance, and corrosion protection while delivering superior holding power over set-screw type collars. The two-piece clamp design can be completely disassembled and placed anywhere along the shaft for convenient installation and adjustment. Its smooth bore protects shaft surfaces from damage, while the high clamping force provides secure, non-marring shaft retention. Available in both steel and stainless steel options.




SPECIFICATIONS DETAILS
PART NUMBER 13L007
TYPE High Strength
DESIGN
Two-piece clamp design allows installation without shaft-end access
MATERIAL
Steel (Black Oxide) offers strength, wear resistance, and corrosion protection
SERIES Signature
ALLOY 1215
FINISH Black Oxide
APPROXIMATE WEIGHT 0.09 lb
COUNTRY OF ORIGIN USA
UPC CODE 662786014253
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes

DIMENSIONAL ATTRIBUTES
HEX BORE SIZE 7/16 in
OUTSIDE DIAMETER 1.250 in
WIDTH 0.375 in
RECESSED SCREW Yes
SCREW SIZE 8-32 x 1/2 in
SCREW MATERIAL Alloy Steel
CAPACITIES
SCREW SEATING TORQUE 22 in-lb
AXIAL HOLD 195 lbs

APPLICATIONS
Ideal for industrial machinery, hexagonal shaft applications, conveyors, motors, gearboxes, robotics, and custom mounting applications.
BRAND Stafford Manufacturing


Shaft Collar Basics Video


Stafford Manufacturing by Stafford Manufacturing

13L007

7/16" Steel (Black Oxide) Hexagonal Bore Shaft Collar - Two-Piece Clamp

$14.59
$14.59
