Description

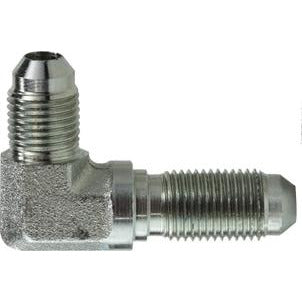

The Bulkhead Union Elbow 1-5/8-12 x 1-5/8-12 is a 90-degree fitting designed for secure panel-mounted connections in various demanding systems. It allows for directional changes while maintaining a leak-proof and high-pressure connection. Made from high-quality steel material that offers excellent corrosion resistance and durability.

Specification Value
TYPE Bulkhead Union Elbow
DESIGN

90° Angled Design, efficient for tight spaces and hose routing. Bulkhead Mounting, to secure firmly through panels or enclosures.
MATERIAL Steel for long-lasting durability and corrosion resistance.
MATERIAL CONSTRUCTION Steel
WEIGHT (lbs) 0
CONNECTION SIZE 1
 1-1/4"
CONNECTION SIZE 2 1-1/4"
CONNECTION TYPE JIC|JIC
CONNECTION TYPE 1 37 deg JIC Flared
CONNECTION TYPE 2 37 deg JIC Flared
FITTING TYPE 90 deg Elbow
MAXIMUM OPERATING PRESSURE 2500 psi
THREAD SIZE 1-5/8-12
APPLICATIONS  Ideal for Manufacturing & Industrial Equipment, Automotive & Heavy Equipment, Agricultural & Construction Equipment, Hydraulic & Pneumatic Systems.
BRAND Midland Industries

Link to Midland Industries Catalog
Description
The Bulkhead Union Elbow 1-5/8-12 x 1-5/8-12 is a 90-degree fitting designed for secure panel-mounted connections in various demanding systems. It allows for directional changes while maintaining a leak-proof and high-pressure connection. Made from high-quality steel material that offers excellent corrosion resistance and durability.

Specification Value
TYPE Bulkhead Union Elbow
DESIGN

90° Angled Design, efficient for tight spaces and hose routing. Bulkhead Mounting, to secure firmly through panels or enclosures.
MATERIAL Steel for long-lasting durability and corrosion resistance.
MATERIAL CONSTRUCTION Steel
WEIGHT (lbs) 0
CONNECTION SIZE 1
 1-1/4"
CONNECTION SIZE 2 1-1/4"
CONNECTION TYPE JIC|JIC
CONNECTION TYPE 1 37 deg JIC Flared
CONNECTION TYPE 2 37 deg JIC Flared
FITTING TYPE 90 deg Elbow
MAXIMUM OPERATING PRESSURE 2500 psi
THREAD SIZE 1-5/8-12
APPLICATIONS  Ideal for Manufacturing & Industrial Equipment, Automotive & Heavy Equipment, Agricultural & Construction Equipment, Hydraulic & Pneumatic Systems.
BRAND Midland Industries

Link to Midland Industries Catalog
Midland Industries by Midland Industries

270120

Bulkhead Union Elbow 1-5/8-12 x 1-5/8-12

$67.35
$67.35
