Description
The Bulkhead Union 45° Elbow 7/8-14 x 7/8-14 is a specialized fitting engineered for secure panel-mounted connections while allowing a 45-degree directional change in fluid flow. This fitting is widely used in high-pressure hydraulic and pneumatic systems where a bulkhead installation is required with an angled configuration to reduce hose strain.

Specification Value
TYPE Bulkhead Union 45° Elbow
DESIGN 45° Angled Design, for flexible routing and reduces hose kinking. Bulkhead Mounting, provides secure panel attachment.
MATERIAL Steel for long-lasting durability and corrosion resistance.
MATERIAL CONSTRUCTION Steel
WEIGHT (lbs) 0.360
CONNECTION SIZE 1
 5/8"
CONNECTION SIZE 2 5/8"
CONNECTION TYPE JIC|JIC
CONNECTION TYPE 1 37 deg JIC Flared
CONNECTION TYPE 2 37 deg JIC Flared
FITTING TYPE 45 deg Elbow
MAXIMUM OPERATING PRESSURE 3500 psi
OPERATING TEMPERATURE 375 deg F
THREAD SIZE 7/8-14
APPLICATIONS  Ideal for Industrial Equipment & Machinery, Automotive & Heavy Equipment, Agricultural & Construction Equipment, Hydraulic & Pneumatic Systems.
BRAND Midland Industries

Link to Midland Industries Catalog
Description
The Bulkhead Union 45° Elbow 7/8-14 x 7/8-14 is a specialized fitting engineered for secure panel-mounted connections while allowing a 45-degree directional change in fluid flow. This fitting is widely used in high-pressure hydraulic and pneumatic systems where a bulkhead installation is required with an angled configuration to reduce hose strain.

Specification Value
TYPE Bulkhead Union 45° Elbow
DESIGN 45° Angled Design, for flexible routing and reduces hose kinking. Bulkhead Mounting, provides secure panel attachment.
MATERIAL Steel for long-lasting durability and corrosion resistance.
MATERIAL CONSTRUCTION Steel
WEIGHT (lbs) 0.360
CONNECTION SIZE 1
 5/8"
CONNECTION SIZE 2 5/8"
CONNECTION TYPE JIC|JIC
CONNECTION TYPE 1 37 deg JIC Flared
CONNECTION TYPE 2 37 deg JIC Flared
FITTING TYPE 45 deg Elbow
MAXIMUM OPERATING PRESSURE 3500 psi
OPERATING TEMPERATURE 375 deg F
THREAD SIZE 7/8-14
APPLICATIONS  Ideal for Industrial Equipment & Machinery, Automotive & Heavy Equipment, Agricultural & Construction Equipment, Hydraulic & Pneumatic Systems.
BRAND Midland Industries

Link to Midland Industries Catalog
Midland Industries by Midland Industries

270210

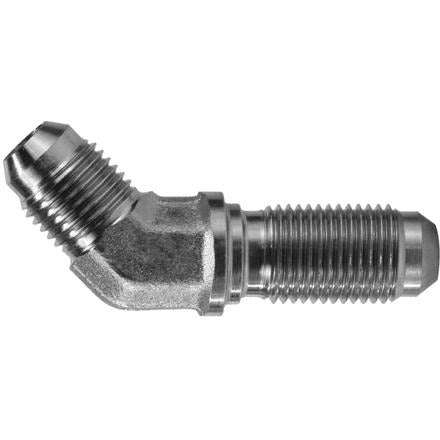

Bulkhead Union 45° Elbow 7/8-14 x 7/8-14

$13.95
$13.95
